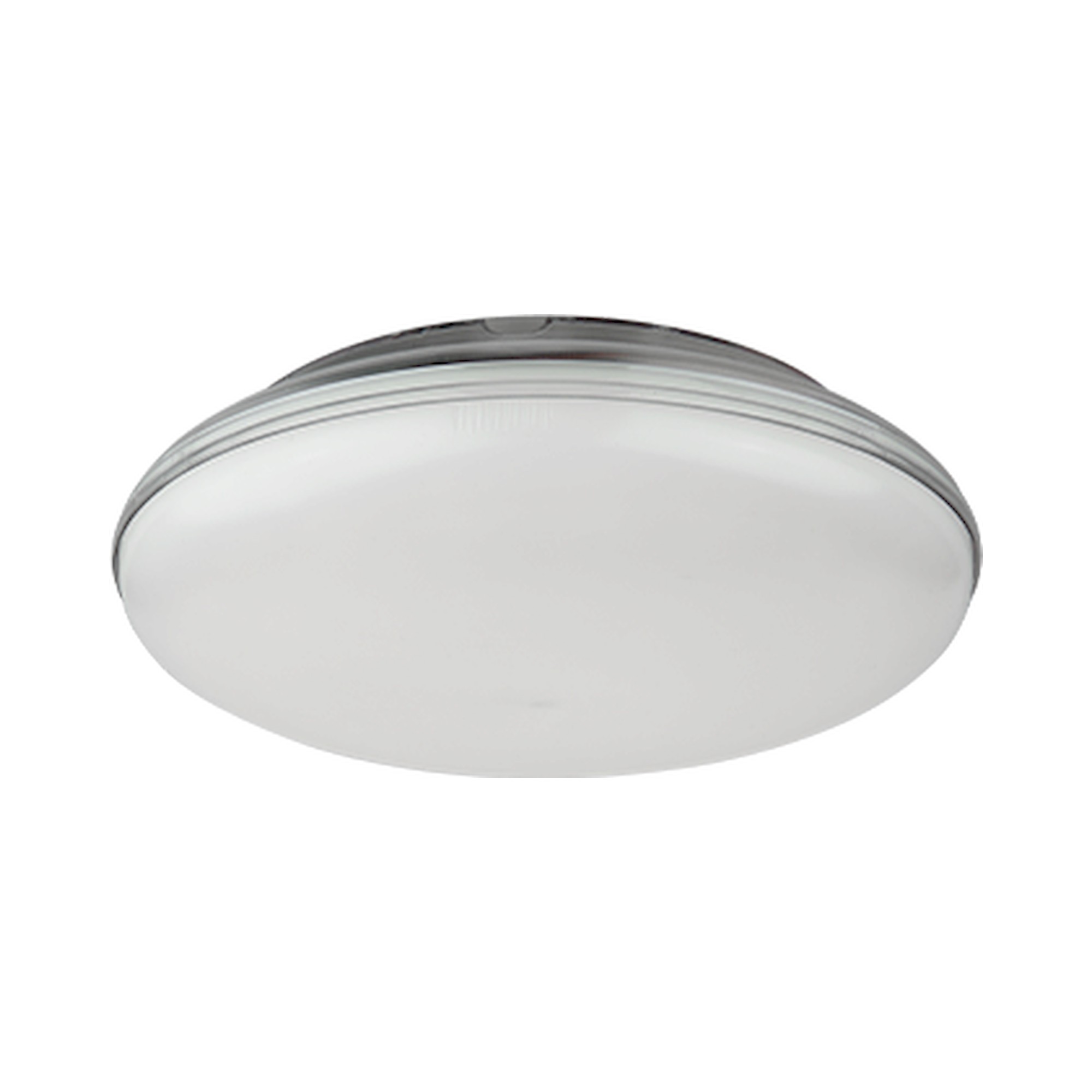

Glamox A25538821. Interior General Lighting A25-S280 1800 WR-D CPW-SEN 830

Name: Glamox A25538821. Interior General Lighting A25-S280 1800 WR-D CPW-SEN 830
Brand: Glamox
SKU: GL-A25538821
Price: 248.25 EUR
Availability: InStock

Lead time

4 weeks

€248.25

Excl. 19% VAT , excl. Shipping Cost

Article

GL-A25538821

Manufacturer Nr.

A25538821

A25-S280 1800 WR-D CPW-SEN 830

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox A25538821. Interior General Lighting A25-S280 1800 WR-D CPW-SEN 830
€248.25

Excl. 19% VAT , excl. Shipping Cost
Glamox FXX132157. Innenraumleuchten FX45-P1124 0/100 WH 3500 DALI C2.5 830 MB WT
€249.75

Excl. 19% VAT , excl. Shipping Cost
Glamox C80546327. Interior General Lighting C80-S1430 AL G2 4500 DALI 840 OP
€306.75

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Round
LMS System
1. LMS Wireless solution
  868 MHz
2. LMS Protocol
  Wireless
Technical Data
1. Maximum ambient temperature (°C)
  25
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,656
3. Lumen per Watt (lm/W)
  118
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. Light distribution up %
  15
7. Light distribution down %
  85
8. MacAdam step
  3
9. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  WR-D: Wireless Radio DALI
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L90 Median useful life LED Ta25 (hr)
  60 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.90
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  15
6. Number of luminaires on a 10A MCB type B (80% load)
  21
7. Number of luminaires on a 10A MCB type C (80% load)
  36
8. Number of luminaires on a 16A MCB type B (80% load)
  35
9. Number of luminaires on a 16A MCB type C (80% load)
  58

Sensor
1. Sensor type
  PIR
2. Detection angle crosswise (°)
  62
3. Detection angle lengthwise (°)
  84
4. Sensor cover cross presence
  72
5. Presence functionality
  PROG
6. Sensor cover length presence
  72
7. Max mounting height / detection range (metre)
  3
8. Sensor max hold time
  Programmable
9. Sensor min hold time
  Programmable
Optic
1. Optic
  OP/PC - Opal diffuser in polycarbonate
Housing
1. Main body material
  Polycarbonate
2. Surface treatment
  Reinforced
3. Body colour
  Transparent
4. Main body colour name
  Transparent
Dimensions
1. Height (mm)
  84
2. Diameter (mm)
  285
3. Net weight (kg)
  1.40
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  1.52
