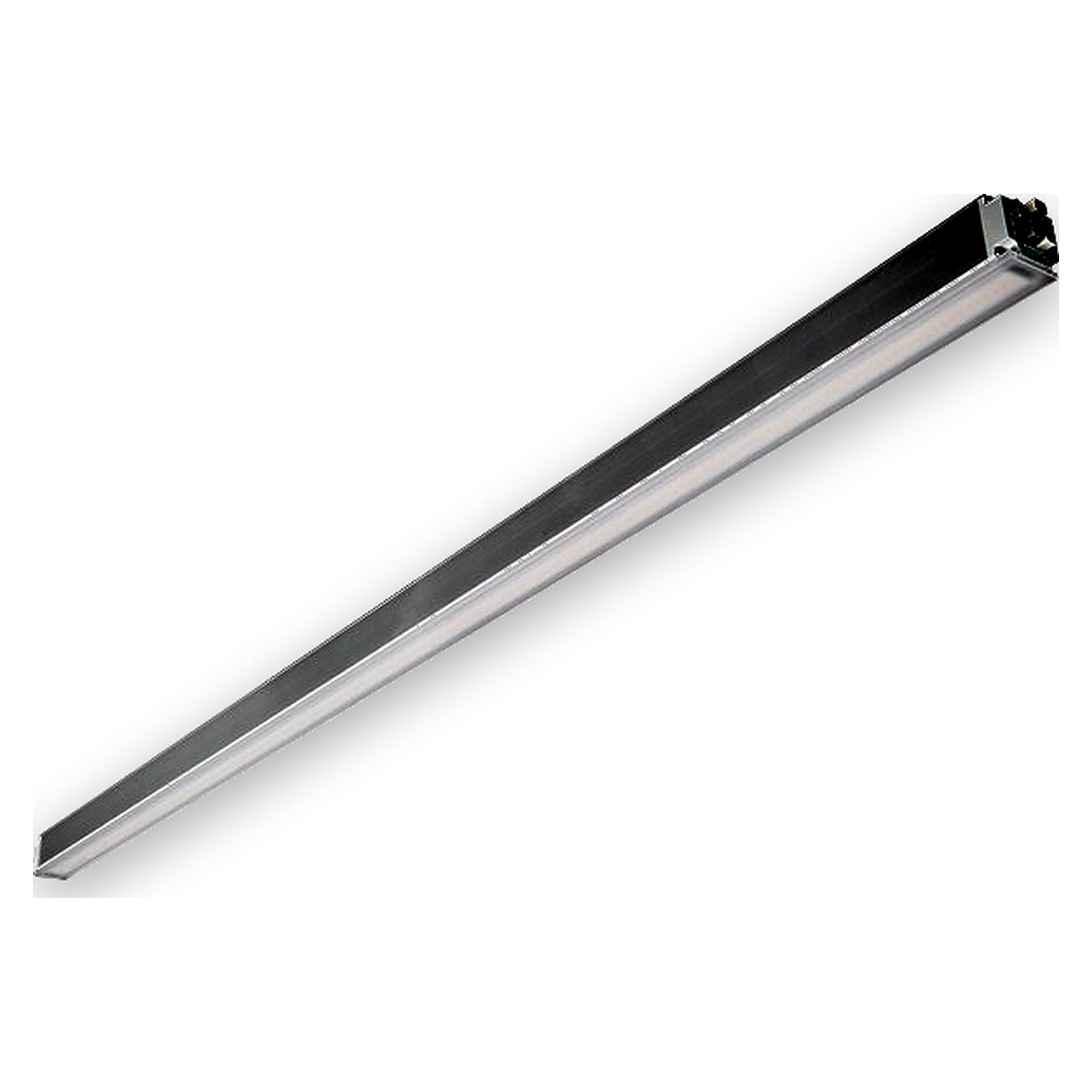

Glamox MAD900529. Linear System Lighting MADOX-4468 B-L-B 1X12500 DALI 840 MB L2

Name: Glamox MAD900529. Linear System Lighting MADOX-4468 B-L-B 1X12500 DALI 840 MB L2
Brand: Glamox
SKU: GL-MAD900529
Price: 427.5 EUR
Availability: InStock

Lead time

4 weeks

€427.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-MAD900529

Manufacturer Nr.

MAD900529

MADOX-4468 B-L-B 1X12500 DALI 840 MB L2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox MAD900529. Linear System Lighting MADOX-4468 B-L-B 1X12500 DALI 840 MB L2
€427.50

Excl. 19% VAT , excl. Shipping Cost
Glamox RDX904895. Linear System Lighting REDOX-4468 L-B-L 2X12500 HF 840 WB L2
€580.50

Excl. 19% VAT , excl. Shipping Cost
Glamox MAD900943. Linear System Lighting MADOX-1524 4160 HF 840 NB L1
€211.50

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Linear
Certificates
1. Certification
  ENEC
LMS System
1. Number of DALI addresses
  1
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  45
3. IK classification
  08
4. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  12,500
3. Number of lamps
  1
4. Lumen per Watt (lm/W)
  160
5. Lamp colour temp (K)
  4000
6. CRI Colour rendering index
  80
7. MacAdam step
  3
8. Energy class light source
  C
9. Minimum dim level (%)
  1
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED MaxTa (hr)
  100 000
2. Median useful life driver Ta25 (hr)
  100,000
3. Median useful life driver Ta45 (hr)
  100,000

Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  78
8. Number of luminaires on a 16A MCB type B (80% load)
  14
9. Number of luminaires on a 16A MCB type C (80% load)
  23
Optic
1. Optic
  MB - Medium beam
2. Material of diffuser
  PMMA
Housing
1. Main body material
  Aluminium
2. Body colour
  Unpainted
3. Main body colour name
  Unpainted
4. Detail material surface treatment
  Anodized
Dimensions
1. Length (mm)
  4,468
2. Width (mm)
  40
3. Height (mm)
  53
4. Net weight (kg)
  5.38
Termination
1. Type of through wiring
  8x1.5
2. Plug type
  Wago
Mounting
1. Row mounting
  Yes
2. Product mounting
  Pendant,Ceiling Surface,Trunking
Logistic Data
1. Item gross weight (kg)
  5.85
