Glamox O3669178316. Bollard O36 LED 1700 HF 830 1000MM ANT

Name: Glamox O3669178316. Bollard O36 LED 1700 HF 830 1000MM ANT
Brand: Glamox
SKU: GL-O3669178316
Price: 1188.75 EUR
Availability: InStock

Lead time

6 weeks

€1,188.75

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O3669178316

Manufacturer Nr.

O3669178316

O36 LED 1700 HF 830 1000MM ANT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O3669178316. Bollard O36 LED 1700 HF 830 1000MM ANT
€1,188.75

Excl. 19% VAT , excl. Shipping Cost
Glamox 5320024-508. Bollard O35 LED 900 HF 840 215MM BL
€460.50

Excl. 19% VAT , excl. Shipping Cost
Glamox 40200840. ALFA OVAL KIT LED 1000 HF 840
€151.50

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Square
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  09
4. IP classification
  66
5. Corrosion class
  C4

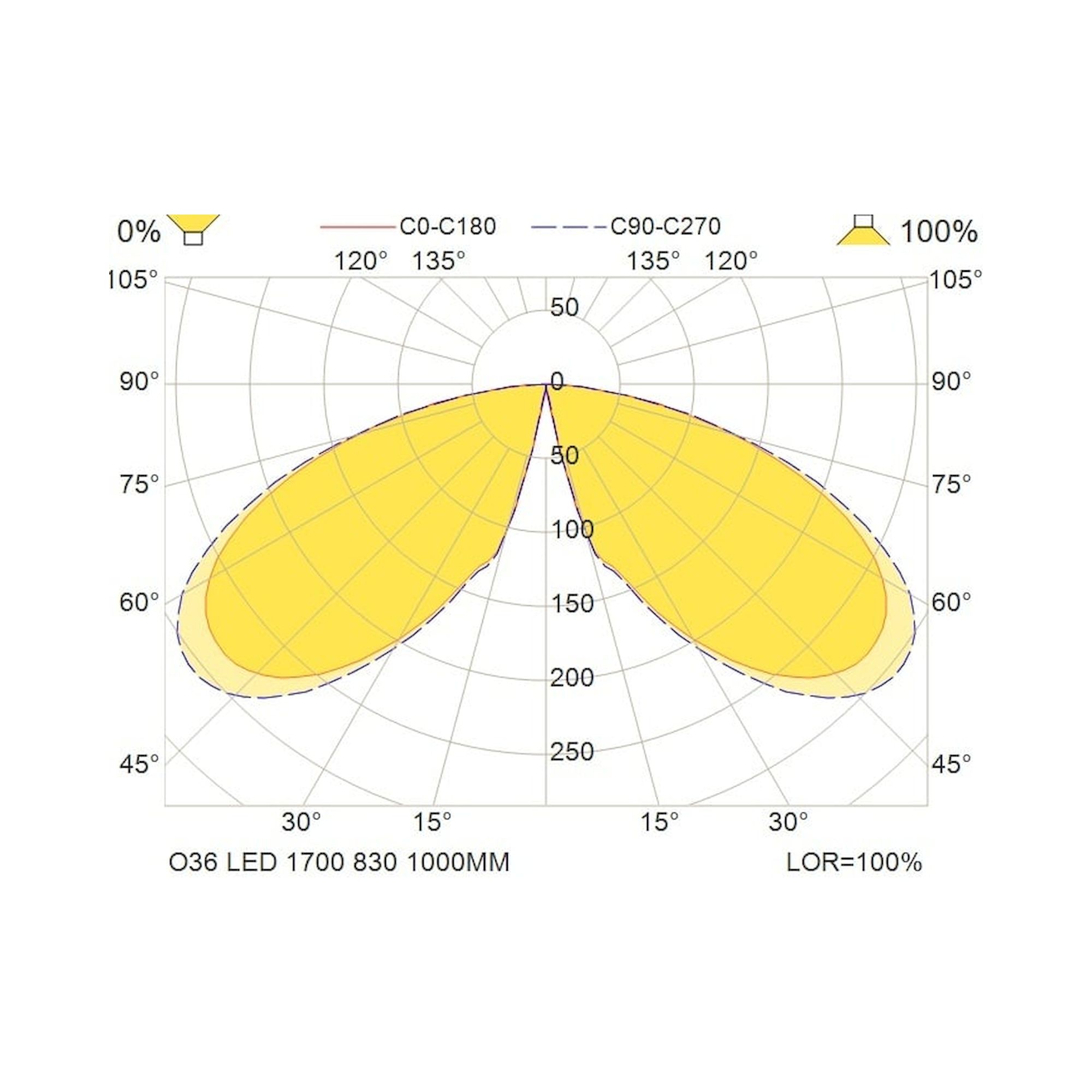

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,600
3. Lumen per Watt (lm/W)
  44
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  100 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  36
8. IEC Protection Class
  II
9. Protection against surges (kV)
  4
10. Number of luminaires on a 10A MCB type B (80% load)
  8
11. Number of luminaires on a 10A MCB type C (80% load)
  13
12. Number of luminaires on a 16A MCB type B (80% load)
  13
13. Number of luminaires on a 16A MCB type C (80% load)
  22

Optic
1. Material of diffuser
  Tempered glass
2. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Anthracite

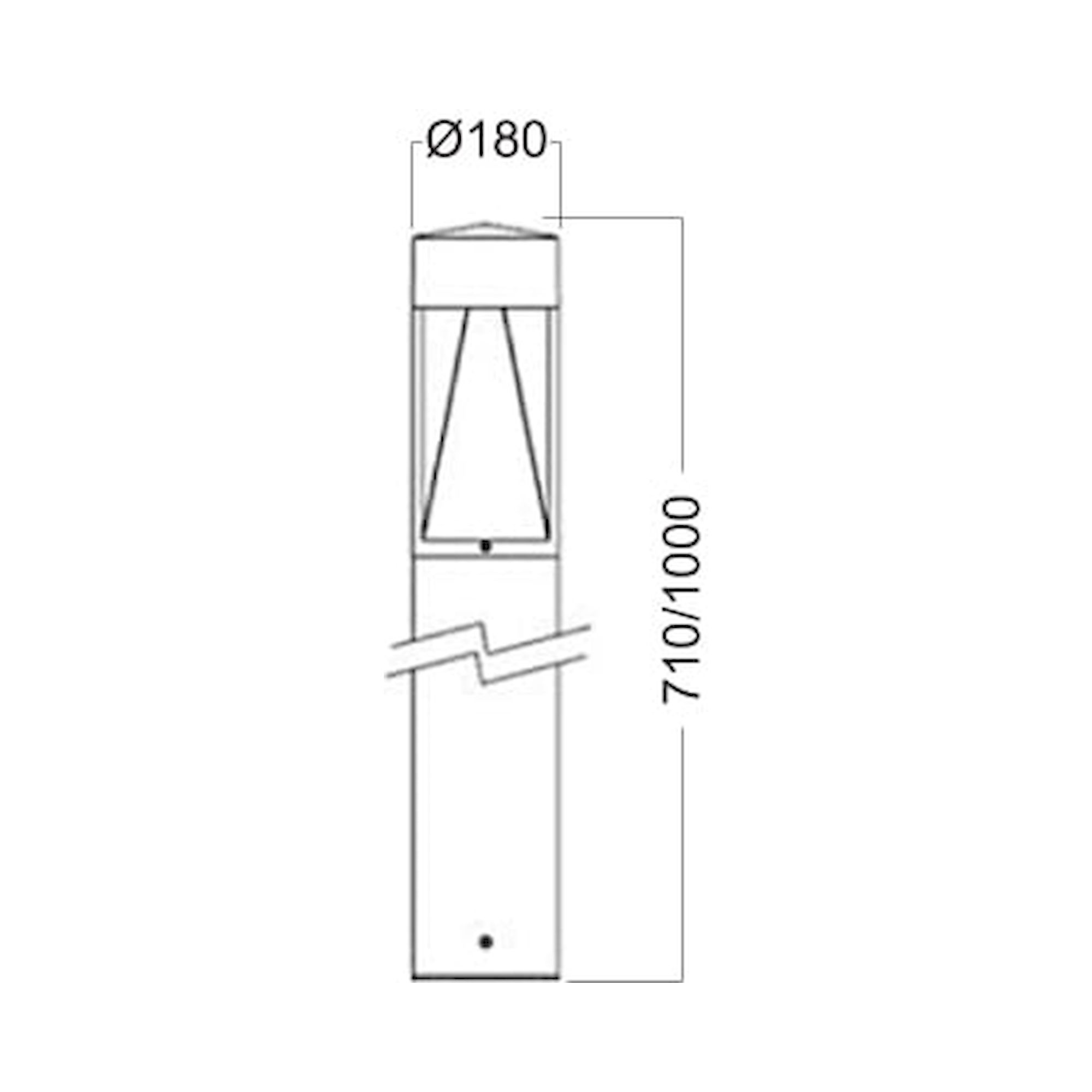

Dimensions
1. Length (mm)
  180
2. Width (mm)
  180
3. Height (mm)
  1,000
4. Net weight (kg)
  12.02
Mounting
1. Product mounting
  Surface Ground
Logistic Data
1. Item gross weight (kg)
  13.06
