Glamox O418078412ND1. Pole O41 LED 6000 ND1 840 MBA BLACK

Name: Glamox O418078412ND1. Pole O41 LED 6000 ND1 840 MBA BLACK
Brand: Glamox
SKU: GL-O418078412ND1
Price: 1121.25 EUR
Availability: InStock

Lead time

6 weeks

€1,121.25

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O418078412ND1

Manufacturer Nr.

O418078412ND1

O41 LED 6000 ND1 840 MBA BLACK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O418078412ND1. Pole O41 LED 6000 ND1 840 MBA BLACK
€1,121.25

Excl. 19% VAT , excl. Shipping Cost
Glamox O418018412. Pole O41 LED 7000 HF 840 WB BL
€1,121.25

Excl. 19% VAT , excl. Shipping Cost
Glamox DNX107555. Downlight DN S140 BL 2600 HF 840 XNB
€259.50

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Round
Technical Data
1. Minimum ambient temperature (ºC)
  -40
2. Maximum ambient temperature (°C)
  50
3. IK classification
  08
4. IP classification
  66
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  5,900
3. Lumen per Watt (lm/W)
  144
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  Night Dim Mode 1: Dim 50% for 6hrs
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  100 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  41
6. IEC Protection Class
  II
7. Protection against surges (kV)
  6
8. Number of luminaires on a 10A MCB type B (80% load)
  7
9. Number of luminaires on a 10A MCB type C (80% load)
  12
10. Number of luminaires on a 16A MCB type B (80% load)
  12
11. Number of luminaires on a 16A MCB type C (80% load)
  20

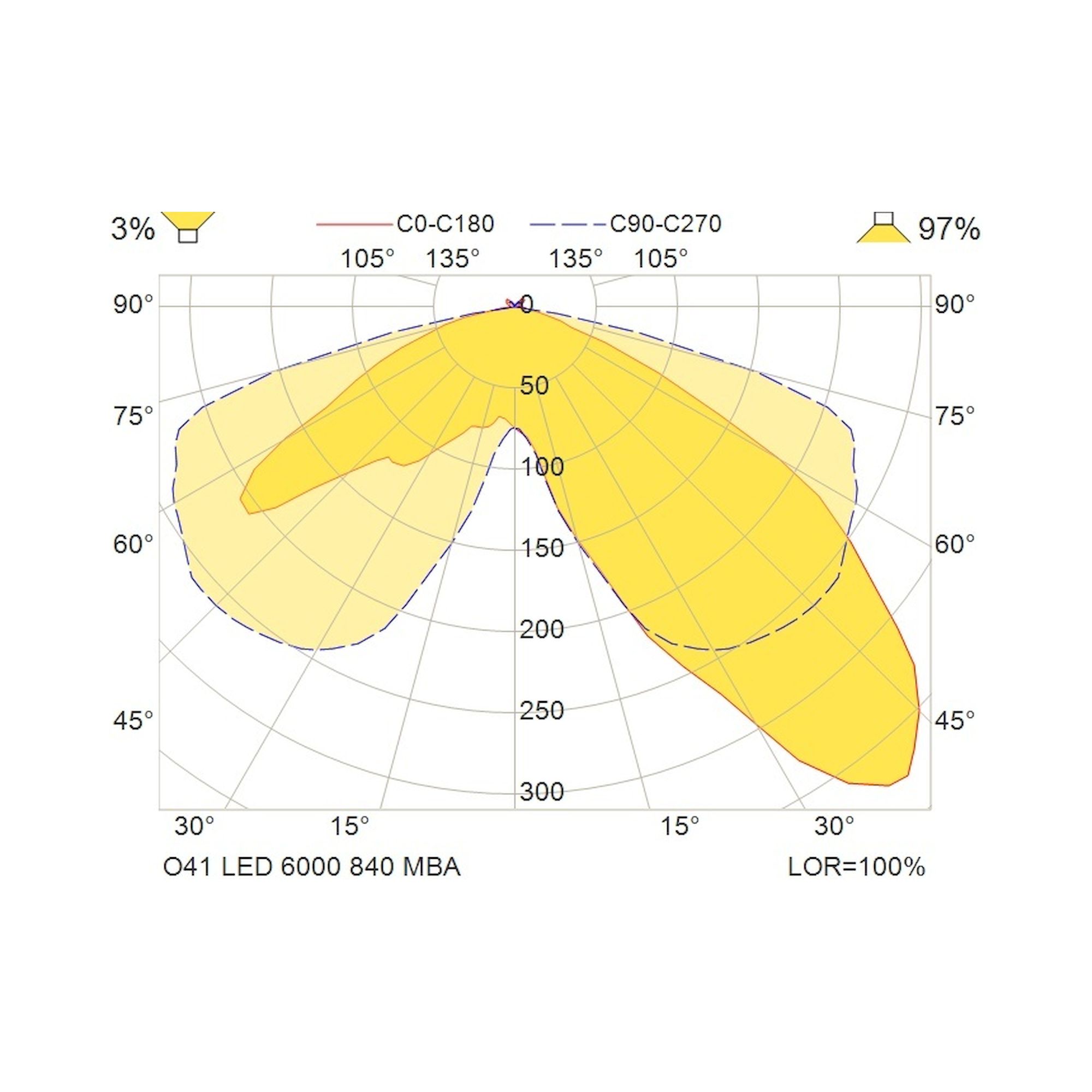

Optic
1. Optic
  MBA - Medium beam asymmetric
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black
Dimensions
1. Height (mm)
  675
2. Diameter (mm)
  520
3. Net weight (kg)
  14.20
Cable
1. Cable Cross section (mm²)
  1.50
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  6
4. Cable material
  RUBBER
5. No of leads
  2
Mounting
1. Product mounting
  Pole
Logistic Data
1. Item gross weight (kg)
  15.44
