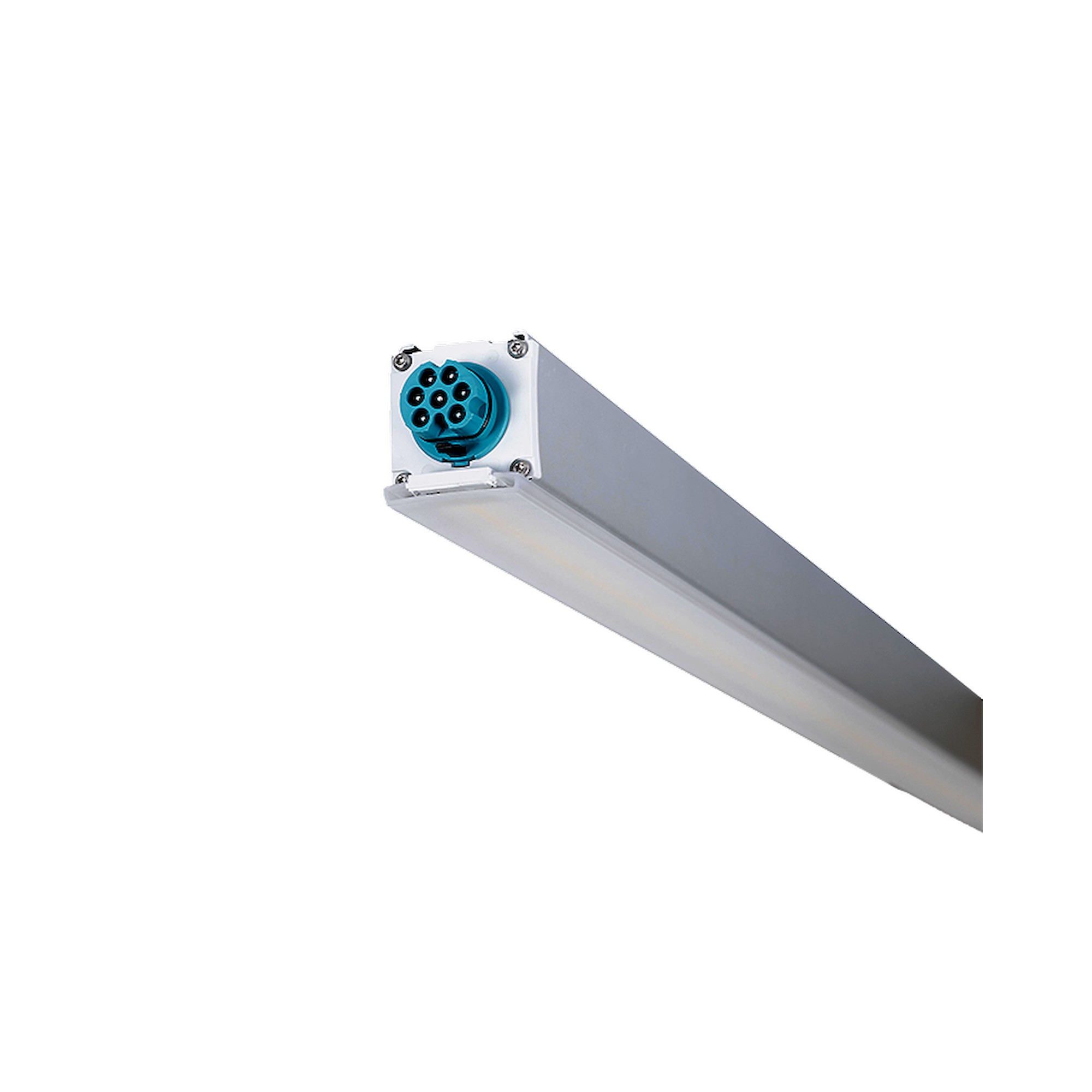

Glamox RDX900604. Linear System Lighting REDOX-1524 8750 DALI 840 WB L3

Name: Glamox RDX900604. Linear System Lighting REDOX-1524 8750 DALI 840 WB L3
Brand: Glamox
SKU: GL-RDX900604
Price: 295.5 EUR
Availability: InStock

Lead time

3 weeks

€295.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-RDX900604

Manufacturer Nr.

RDX900604

REDOX-1524 8750 DALI 840 WB L3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox RDX900604. Linear System Lighting REDOX-1524 8750 DALI 840 WB L3
€295.50

Excl. 19% VAT , excl. Shipping Cost
Glamox RDX900206. Linear System Lighting REDOX-4468 B-L-B 1X12500 HF 840 MB L3
€460.50

Excl. 19% VAT , excl. Shipping Cost
Glamox MAD900511. Linear System Lighting MADOX-1524 8750 DALI 840 WB L3
€264.00

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

Certificates
1. Certification
  ENEC
LMS System
1. Number of DALI addresses
  1
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  45
3. IK classification
  08
4. IP classification
  66
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  8,750
3. Number of lamps
  1
4. Lumen per Watt (lm/W)
  159
5. Lamp colour temp (K)
  4000
6. CRI Colour rendering index
  80
7. MacAdam step
  3
8. Energy class light source
  C
9. Minimum dim level (%)
  1
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED MaxTa (hr)
  100 000
2. Median useful life driver Ta25 (hr)
  100,000
3. Median useful life driver Ta45 (hr)
  100,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  55
8. Number of luminaires on a 16A MCB type B (80% load)
  14
9. Number of luminaires on a 16A MCB type C (80% load)
  23

Optic
1. Optic
  WB - Wide beam
2. Material of diffuser
  PMMA
Housing
1. Main body material
  Aluminium
2. Body colour
  Unpainted
3. Main body colour name
  Unpainted
4. Detail material surface treatment
  Anodized
Dimensions
1. Length (mm)
  1,524
2. Width (mm)
  40
3. Height (mm)
  50
4. Net weight (kg)
  1.79
Termination
1. Type of through wiring
  7x1.5
2. Plug type
  Wieland
Mounting
1. Row mounting
  Yes
2. Product mounting
  Pendant,Ceiling Surface,Trunking
Logistic Data
1. Item gross weight (kg)
  1.95
