Anodized aluminum strut profile 50x100L with profile slot 10 and six open slots for load-bearing frames and machine bases. A high area moment of inertia delivers stable structures without welding. Supplied as a packaging unit of 10 profiles in standard length 6070 mm.

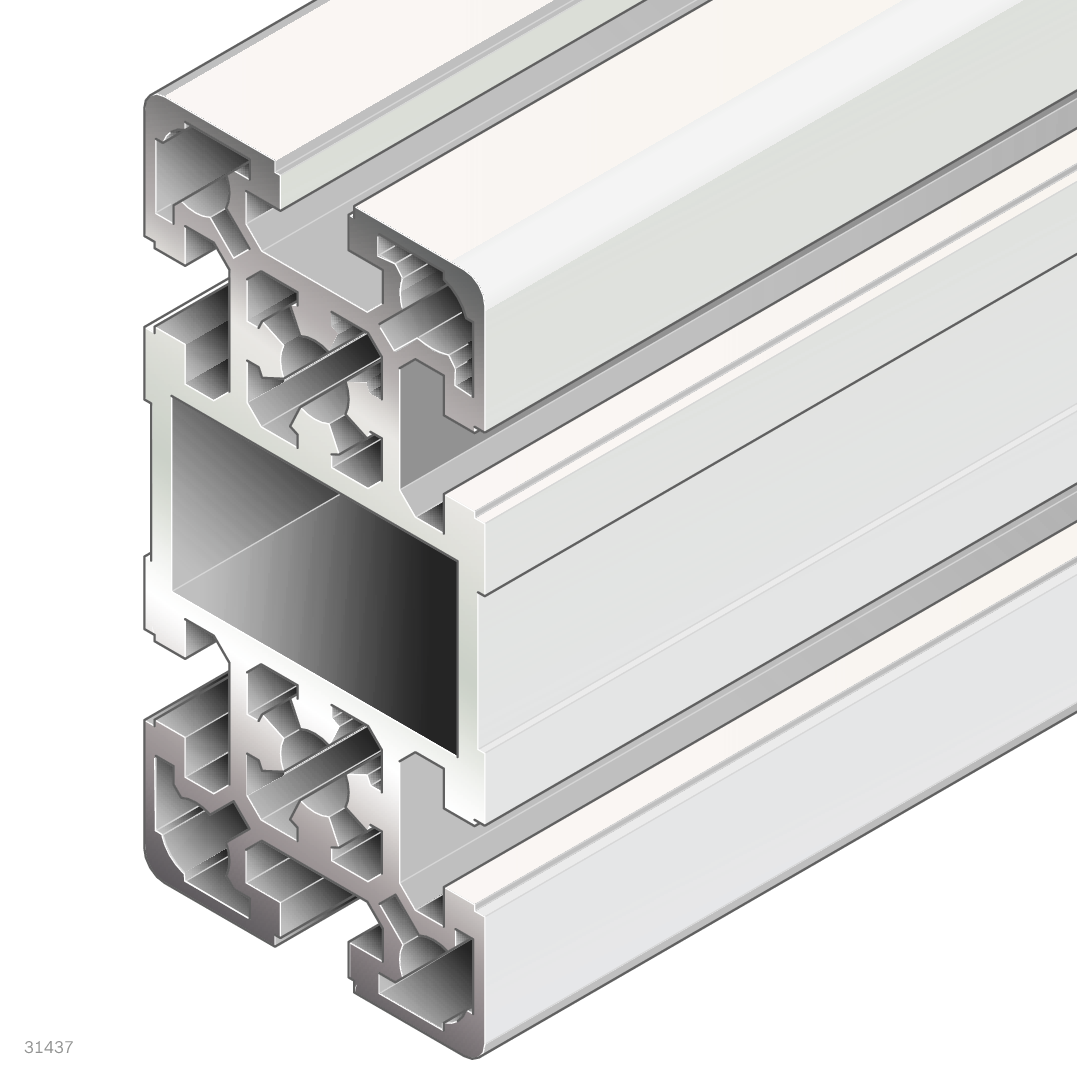

Strut profile 50x100L, slot 10, anodized aluminum, L 6070 mm - Bosch Rexroth 3842537825
BOSCH REXROTH
Original product
Net price (excl. VAT)
€4,064.77
Item
BRR-3842537825
Manufacturer no.
3842537825
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842537825
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842537825
The Bosch Rexroth strut profile 50x100L is an anodized extruded aluminum profile with profile slot 10 for building frames, machine bases and load-bearing structures in assembly technology. It is intended for design engineers and machine builders who need strong frameworks without welding.
- Cross-section 50x100L with a high area moment of inertia for load-bearing applications
- Six open slots for flexible mounting of connectors and add-on components
- Supplied as a packaging unit of 10 profiles in standard length 6070 mm
Technical data
| Property | Value |
|---|---|
| Cross-section | 50x100L |
| Dimensions | 50x100 |
| Profile slot | 10 |
| Open slots | 6 |
| Modular dimension | 50 mm |
| Profile type | Standard |
| Length [L] | 6070 mm |
| Color | Natural |
| Material | Aluminum, anodized |
| Profile surface [A] | 17.2 cm² |
| Area moment of inertia X [lx] | 162.8 cm⁴ |
| Area moment of inertia Y [ly] | 42.6 cm⁴ |
| Moment of resistance X [Wx] | 32.6 cm³ |
| Moment of resistance Y [Wy] | 17 cm³ |
| Torsional moment of inertia [It] | 29.43 cm⁴ |
| Torsional moment of resistance [Wt] | 10.7 cm³ |
| Mass [m] | 4.6 kg |
| Delivery unit | 10 |
| Condition on delivery | Packaging unit in standard length |
| Recommended accessory | Cover cap 50x50 |
| Weight (packaging unit) | 298 kg |
| Hersteller-Nr | 3842537825 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Weight | 298.000000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
