Angled aluminum strut profile with cross-section 40x80x80L and a length of 6070 mm for building assembly systems, workstations, and machine frames. The anodized natural-finish profile is ESD-rated, features 8 open slots (slot size 10, modular dimension 40 mm), and is supplied as a single rod in standard length. Recommended accessories: cover cap 40x80x80 in signal gray or black.
Strut Profile 40x80x80L, Length 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842529370
BOSCH REXROTH
Original product
Net price (excl. VAT)
€468.94
Item
BRR-3842529370
Manufacturer no.
3842529370
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842529370
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842529370

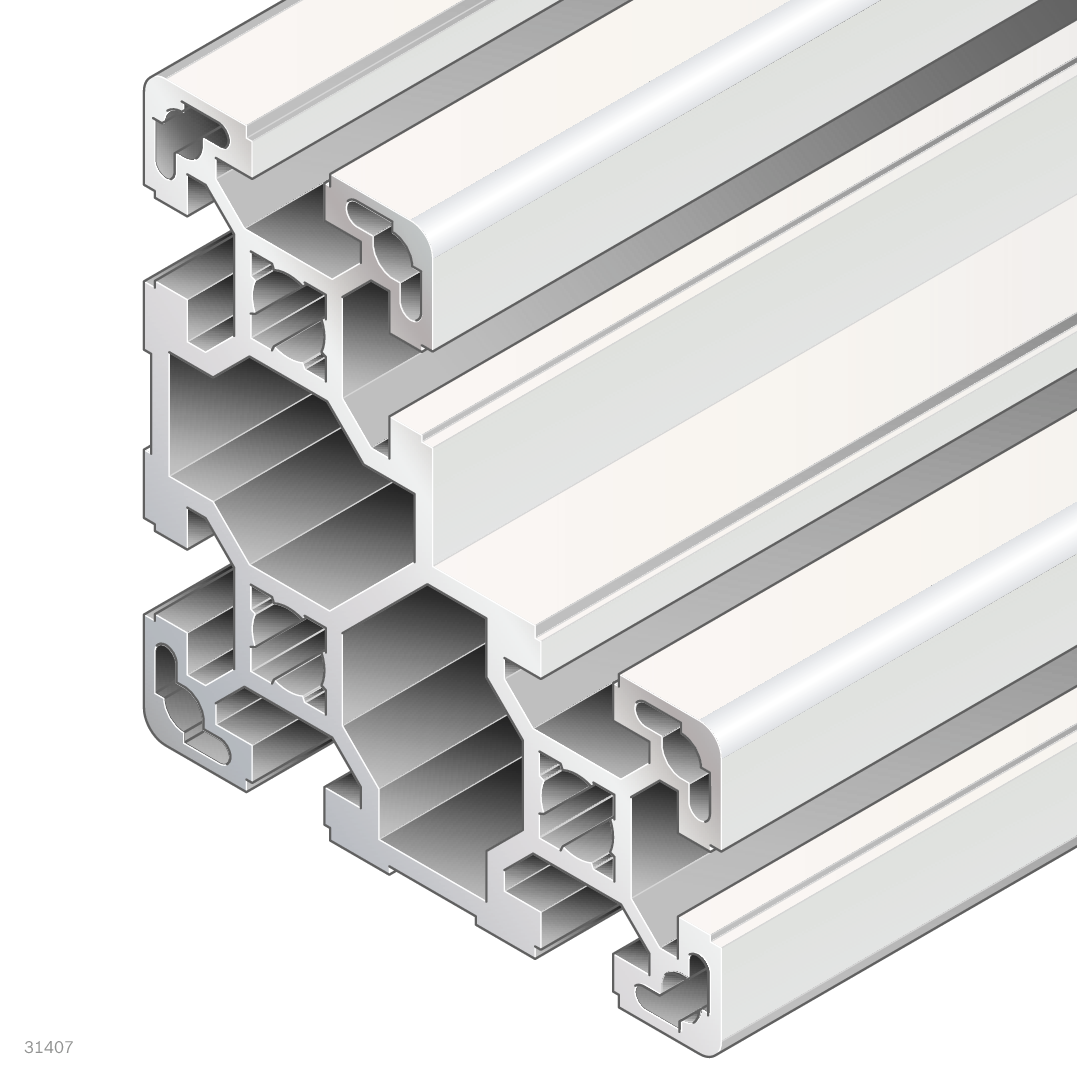

The 40x80x80L strut profile at 6070 mm length is an angled aluminum extrusion from the Bosch Rexroth Assembly Technology system. It integrates directly into the 40 mm modular grid and is suited for structural applications in workstations, guarding, and machine frames where ESD protection is required. The anodized natural finish provides good corrosion resistance without additional surface treatment.
- 8 open slots allow connections at any point along the profile without drilling or additional machining.
- Symmetric area moments of inertia (lx = ly = 96.6 cm⁴) in both principal axes - well-suited for evenly loaded load-bearing structures.
- ESD-rated for use in electrostatic protected areas (EPA).
- Supplied as a single rod in standard length; mass per rod 4.2 kg, total delivery weight 25.606 kg.
Technical data
| Property | Value |
|---|---|
| Cross-section | 40x80x80L |
| Profile type | Angled |
| Length [L] | 6070 mm |
| Dimensions | 40x80x80 mm |
| Modular dimension | 40 mm |
| Profile slot | 10 |
| Open slots | 8 |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 15.4 cm² |
| Area moment of inertia in x-direction [lx] | 96.6 cm⁴ |
| Area moment of inertia in y-direction [ly] | 96.6 cm⁴ |
| Moment of resistance in x-direction [Wx] | 24.2 cm³ |
| Moment of resistance in y-direction [Wy] | 24.2 cm³ |
| Torsional moment of inertia [It] | 19.6 cm⁴ |
| Moment of torsion resistance [Wt] | 9.8 cm³ |
| Mass [m] | 4.2 kg |
| Weight (delivery unit) | 25.606 kg |
| Packaging unit | 1 |
| Condition on delivery | Single rod in standard length |
| Recommended accessories | Cover cap 40x80x80, signal gray; Cover cap 40x80x80, black |
| Hersteller-Nr | 3842529370 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 25.606000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
