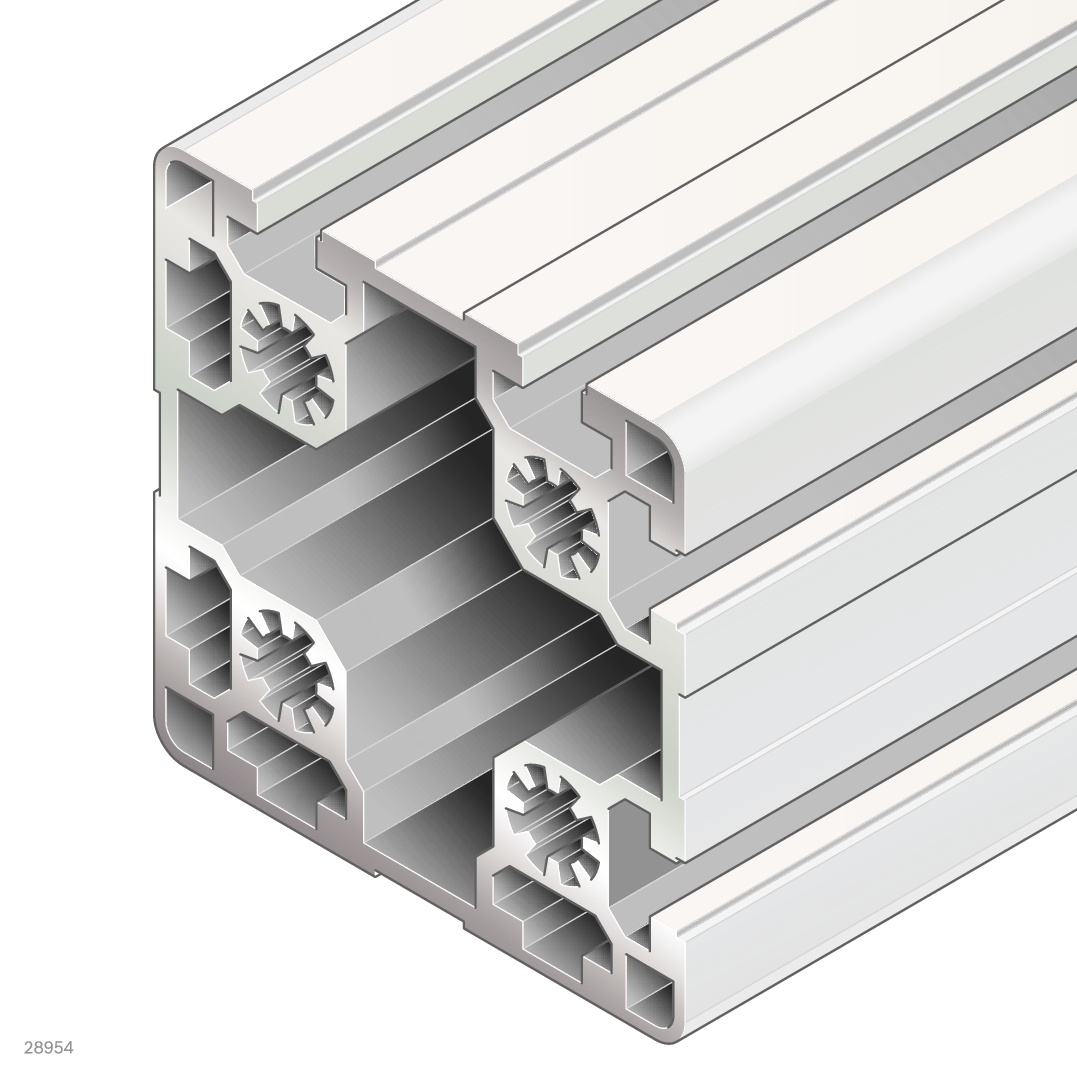

The product may differ from the illustration
Heavy-duty anodized aluminum strut profile with 90x90L cross-section and four open slots (type 4NVS) for demanding frames and conveyor structures. Supplied as a single rod at the standard length of 6070 mm, it integrates directly into the Bosch Rexroth aluminum profile system using the 45 mm modular grid. Recommended accessories: cover cap 90x90L in signal gray or black.
Strebenprofil 90x90L 4NVS, 6070 mm, Aluminium eloxiert - Bosch Rexroth 3842538300
BOSCH REXROTH Original product
Net price (excl. VAT)
€676.42 €568.42
excl. Shipping Cost
Item BRR-3842538300
Manufacturer no. 3842538300
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842538300
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842538300
The 90x90L 4NVS strut profile is a heavy structural aluminum extrusion for load-bearing frames and conveyor installations that require high rigidity and consistent modular compatibility. Four open slots on a 45 mm grid allow tool-accessible connections on all faces using standard Bosch Rexroth hardware.
- High bending and torsional stiffness from the symmetric 90x90 cross-section - area moments of inertia Ix = Iy = 220.9 cm⁴
- Four open slots (slot width 10) for flexible, repositionable connections on every side
- Anodized surface finish for corrosion resistance and extended service life
- 45 mm modular grid for full compatibility with the Bosch Rexroth aluminum profile system
- Delivered as a single rod at the standard length of 6070 mm, ready to ship
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90L 4NVS |
| Profile type | 4NVS |
| Dimensions | 90 x 90 mm |
| Length [L] | 6070 mm |
| Open slots | 4 |
| Profile slot | 10 |
| Modular dimension | 45 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 24.2 cm² |
| Area moment of inertia in x-direction [lx] | 220.9 cm⁴ |
| Area moment of inertia in y-direction [ly] | 220.9 cm⁴ |
| Moment of resistance in x-direction [Wx] | 49.2 cm³ |
| Moment of resistance in y-direction [Wy] | 49.2 cm³ |
| Torsional moment of inertia [It] | 127 cm⁴ |
| Moment of torsion resistance [Wt] | 22 cm³ |
| Mass [m] | 6.5 kg |
| Weight (delivery unit) | 40.709 kg |
| Packaging unit | 1 rod |
| Condition on delivery | Single rod in standard length |
| Recommended accessories | Cover cap 90x90L signal gray, Cover cap 90x90L black |
| Hersteller-Nr | 3842538300 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 40.709000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
