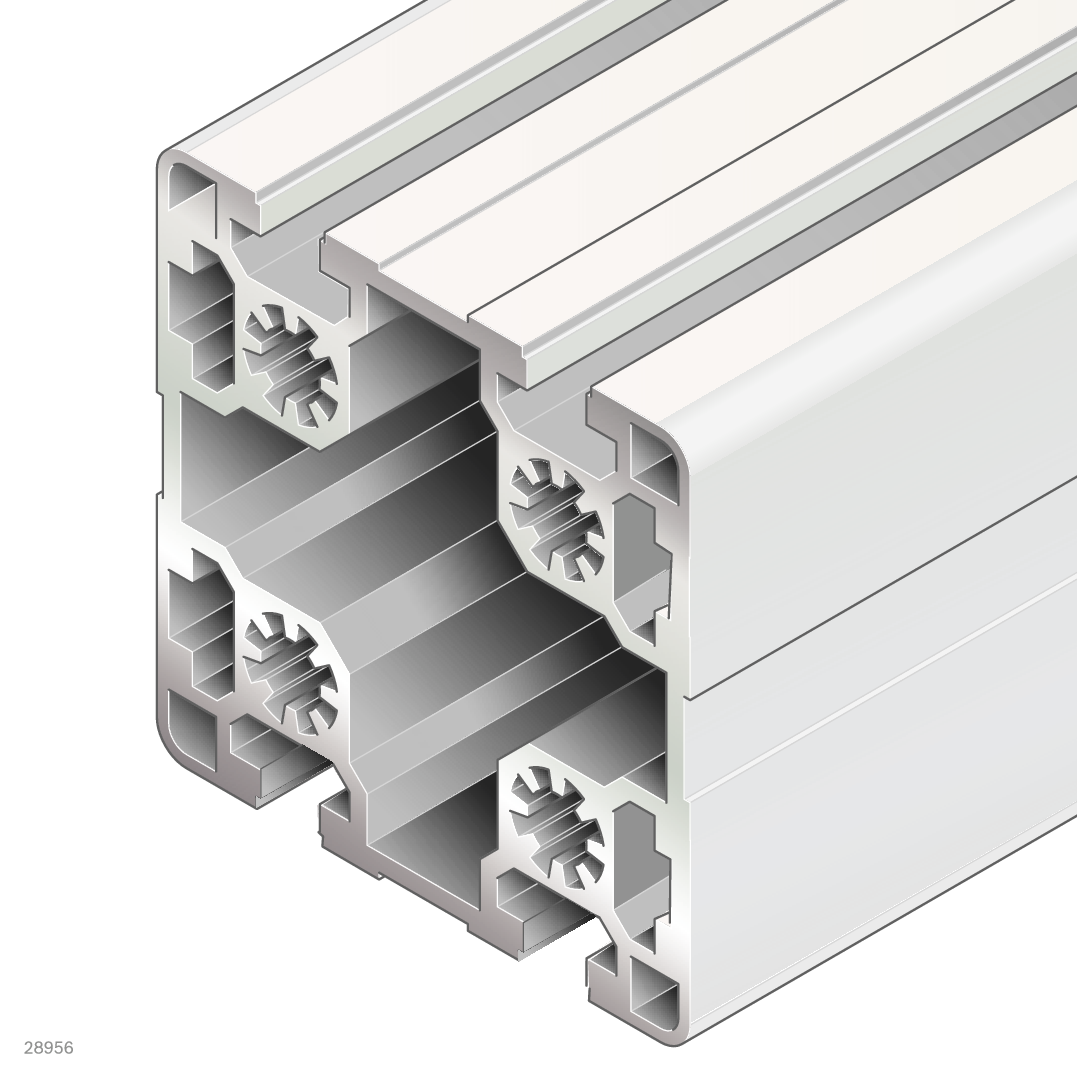

The product may differ from the illustration
Heavy-duty aluminum strut profile with 90x90L cross-section and 4 open slots (profile type 4N) for large-scale machine frames and structural assemblies. The anodized surface provides lasting corrosion resistance; the 45 mm modular dimension ensures full compatibility with the Bosch Rexroth 90 series profile system. Supplied as a single rod in standard length 6070 mm, mass 6.5 kg/m.
Strebenprofil 90x90L 4N, Länge 6070 mm, Aluminium eloxiert - Bosch Rexroth 3842538301
BOSCH REXROTH Original product
Net price (excl. VAT)
€676.42 €568.42
excl. Shipping Cost
Item BRR-3842538301
Manufacturer no. 3842538301
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842538301
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842538301
The strut profile 90x90L 4N is the primary structural element for large frames, machine bases, and workstation systems built on the Bosch Rexroth aluminum profile system. Four open slots (profile type 4N, slot width 10) on all four faces provide unrestricted attachment points for connectors, brackets, and accessories - with no additional machining required.
- Four open slots (slot 10) on all sides for multi-directional connection without additional machining
- 45 mm modular dimension - fully compatible with the complete Bosch Rexroth 90 series modular system
- Anodized aluminum: durable corrosion protection, attractive natural finish
- High structural stiffness: area moment of inertia lx 227.4 cm⁴ / ly 214.7 cm⁴; moment of resistance Wx 50.5 cm³ / Wy 47.7 cm³
- Supplied as single rod, length 6070 mm; total weight 40.711 kg
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90L 4N |
| Dimensions | 90 x 90 mm |
| Length [L] | 6070 mm |
| Profile type | 4N |
| Open slots | 4 |
| Profile slot | 10 |
| Modular dimension | 45 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 24.2 cm² |
| Mass [m] | 6.5 kg/m |
| Weight (rod) | 40.711 kg |
| Area moment of inertia [lx] | 227.4 cm⁴ |
| Area moment of inertia [ly] | 214.7 cm⁴ |
| Moment of resistance [Wx] | 50.5 cm³ |
| Moment of resistance [Wy] | 47.7 cm³ |
| Torsional moment of inertia [It] | 122 cm⁴ |
| Moment of torsion resistance [Wt] | 22.2 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 90x90L signal gray, Cover cap 90x90L black |
| Hersteller-Nr | 3842538301 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 40.711000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
