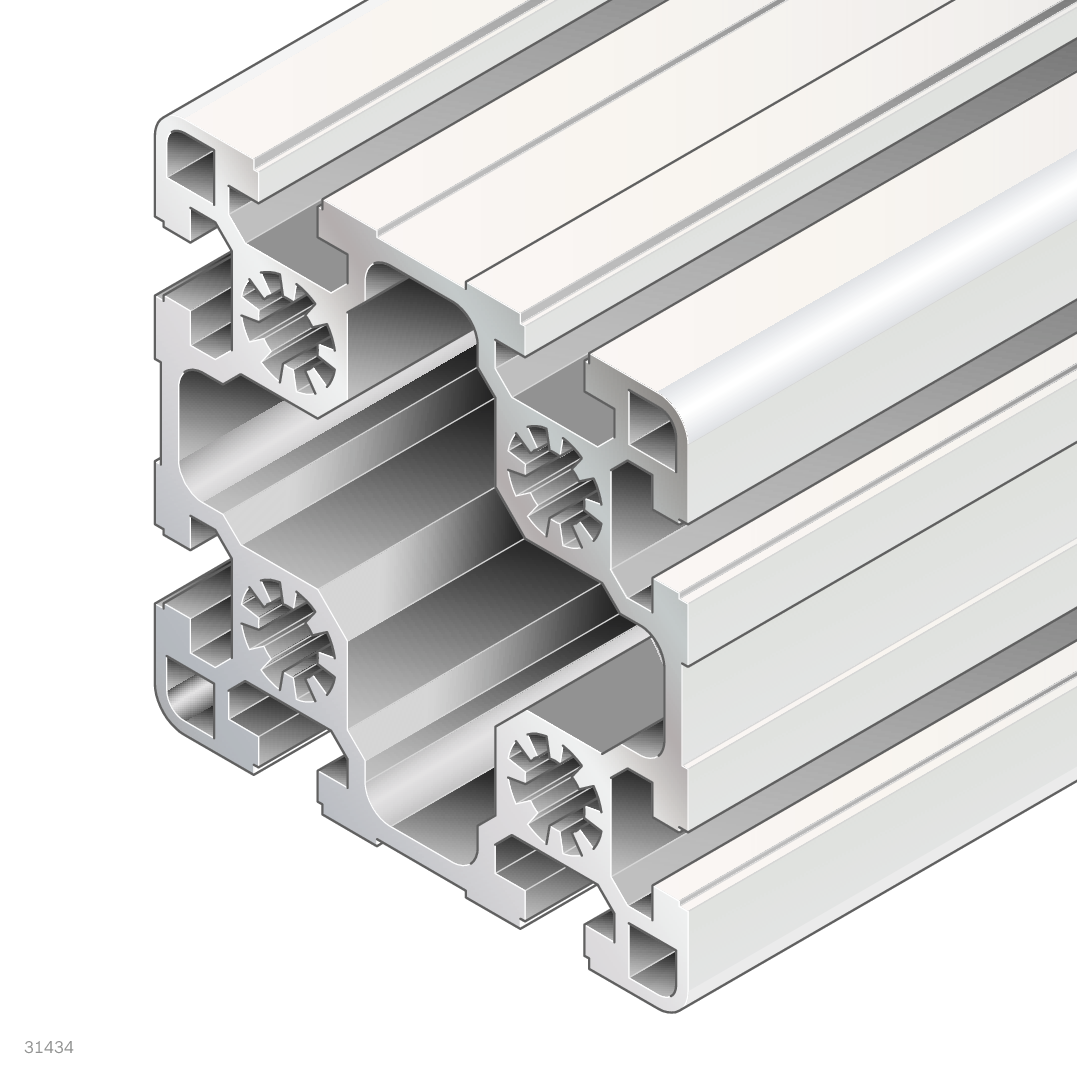

Structural strut profile in 90x90L cross-section, 6070 mm long, made from anodized aluminum for building ESD-safe assembly and workstation frameworks. Eight open slots on a 45 mm grid accept the full range of Rexroth profile system accessories. Supplied as a single rod in standard length.
Strut Profile 90x90L, 6070 mm, Anodized Aluminum, ESD-Compatible - Bosch Rexroth 3842553620
BOSCH REXROTH
Original product
Net price (excl. VAT)
€534.44
Item
BRR-3842553620
Manufacturer no.
3842553620
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842553620
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842553620
The 90x90L strut profile at 6070 mm is a load-bearing structural element for demanding assembly systems and industrial workstations. The anodized aluminum section is ESD-compatible and integrates directly with existing Rexroth profile constructions via the 45 mm modular grid and slot size 10.
- ESD-compatible - safe for use in electrostatically sensitive production environments
- 8 open slots for flexible connections in all orientations
- High bending stiffness - symmetrical area moments of inertia of 211.1 cm⁴ in both x and y directions
- Anodized aluminum surface - corrosion-resistant and low-maintenance
- Compatible with all Rexroth profile accessories for slot size 10
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90L |
| Length [L] | 6070 mm |
| Dimensions | 90x90 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 8 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | yes |
| Profile surface [A] | 24.1 cm² |
| Mass [m] | 6.5 kg/m |
| Weight (rod) | 40.17 kg |
| Area moment of inertia [lx] | 211.1 cm⁴ |
| Area moment of inertia [ly] | 211.1 cm⁴ |
| Moment of resistance [Wx] | 46.9 cm³ |
| Moment of resistance [Wy] | 46.9 cm³ |
| Torsional moment of inertia [It] | 82.1 cm⁴ |
| Moment of torsion resistance [Wt] | 20.1 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 90x90L, signal gray; Cover cap 90x90L, black |
| Hersteller-Nr | 3842553620 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 40.170000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
