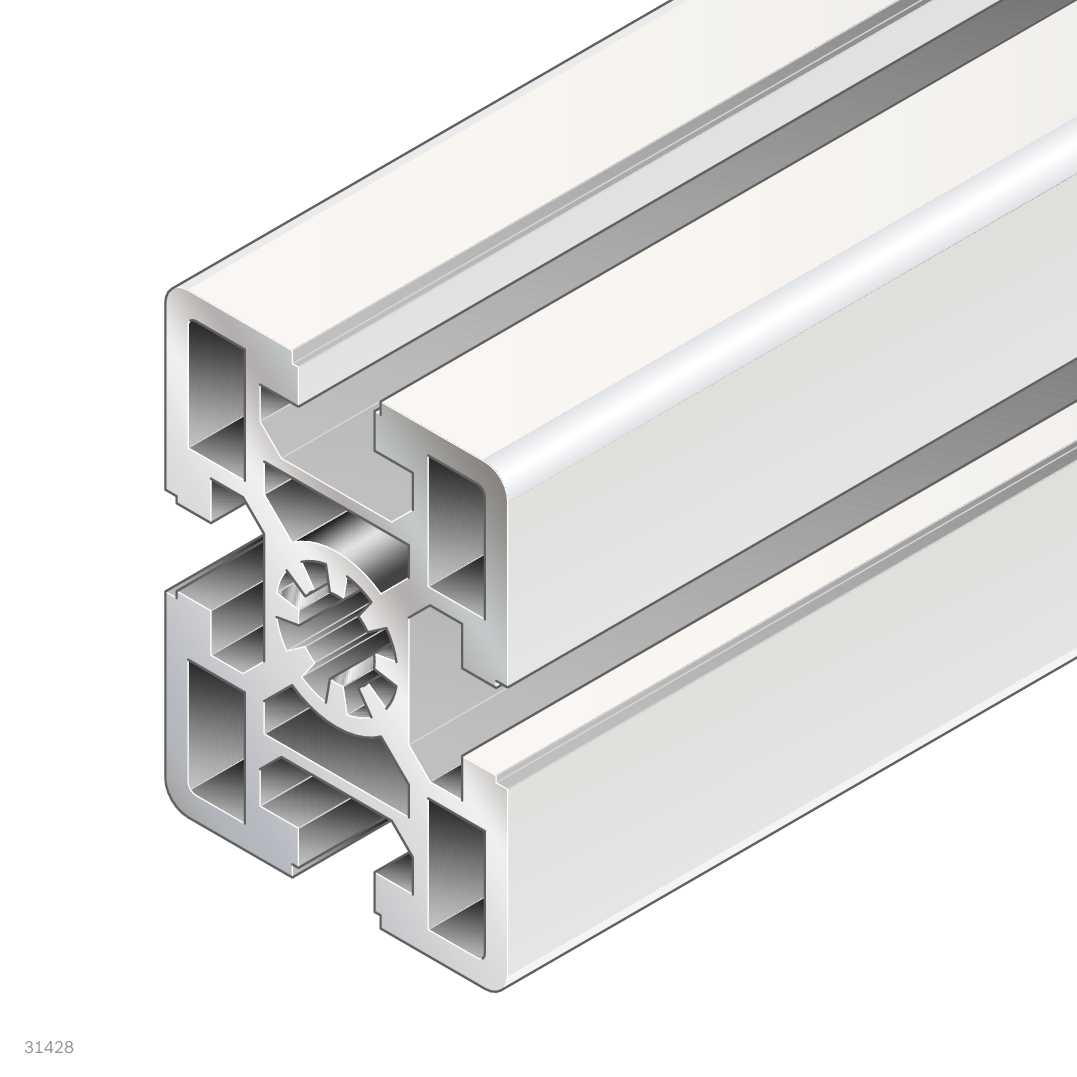

The product may differ from the illustration
Strut profile with a 45x60 mm cross-section and 6070 mm length, made from anodized aluminum for the Bosch Rexroth modular profile system (45 mm grid). Four open slots (slot size 10) allow tools-free positioning of connectors and attachments at any point along the profile. ESD-rated; supplied as a single rod in standard length.
Strebenprofil 45x60, L=6070 mm, Aluminium eloxiert, ESD - Bosch Rexroth 3842557210
BOSCH REXROTH Original product
Net price (excl. VAT)
€268.04 €225.24
excl. Shipping Cost
Item BRR-3842557210
Manufacturer no. 3842557210
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557210
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557210
The 45x60 strut profile at 6070 mm length is a structural aluminum extrusion for building assembly workstations, conveyor frames, and guarding within the Bosch Rexroth modular system (45 mm grid dimension). Four open slots based on profile slot 10 accept connectors, clamps, and accessories at any position without drilling. The ESD rating qualifies the profile for use in electrostatically sensitive production and assembly environments.
- 45x60 mm cross-section, 45 mm grid - fully compatible with the Bosch Rexroth connector and frame range
- Four open slots (slot 10) for tool-free repositioning of attachments anywhere along the length
- Anodized aluminum - corrosion-resistant, lightweight, RoHS-compliant surface
- ESD-rated for assembly lines with electrostatic discharge protection requirements
- Supplied as a single rod, length 6070 mm, total weight 18.3 kg
Technical data
| Parameter | Value |
|---|---|
| Cross-section | 45x60 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 4 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 11 cm² |
| Mass [m] | 3 kg/m |
| Weight (rod) | 18.3 kg |
| Area moment of inertia Ix | 37.2 cm⁴ |
| Area moment of inertia Iy | 22.7 cm⁴ |
| Torsional moment of inertia [It] | 6.7 cm⁴ |
| Moment of resistance Wx | 12.4 cm³ |
| Moment of resistance Wy | 10.1 cm³ |
| Moment of torsion resistance [Wt] | 4.09 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x60 signal gray, Cover cap 45x60 black, Cover cap with hole 45x60 signal gray, Cover cap with hole 45x60 black |
| Hersteller-Nr | 3842557210 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 18.300000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
