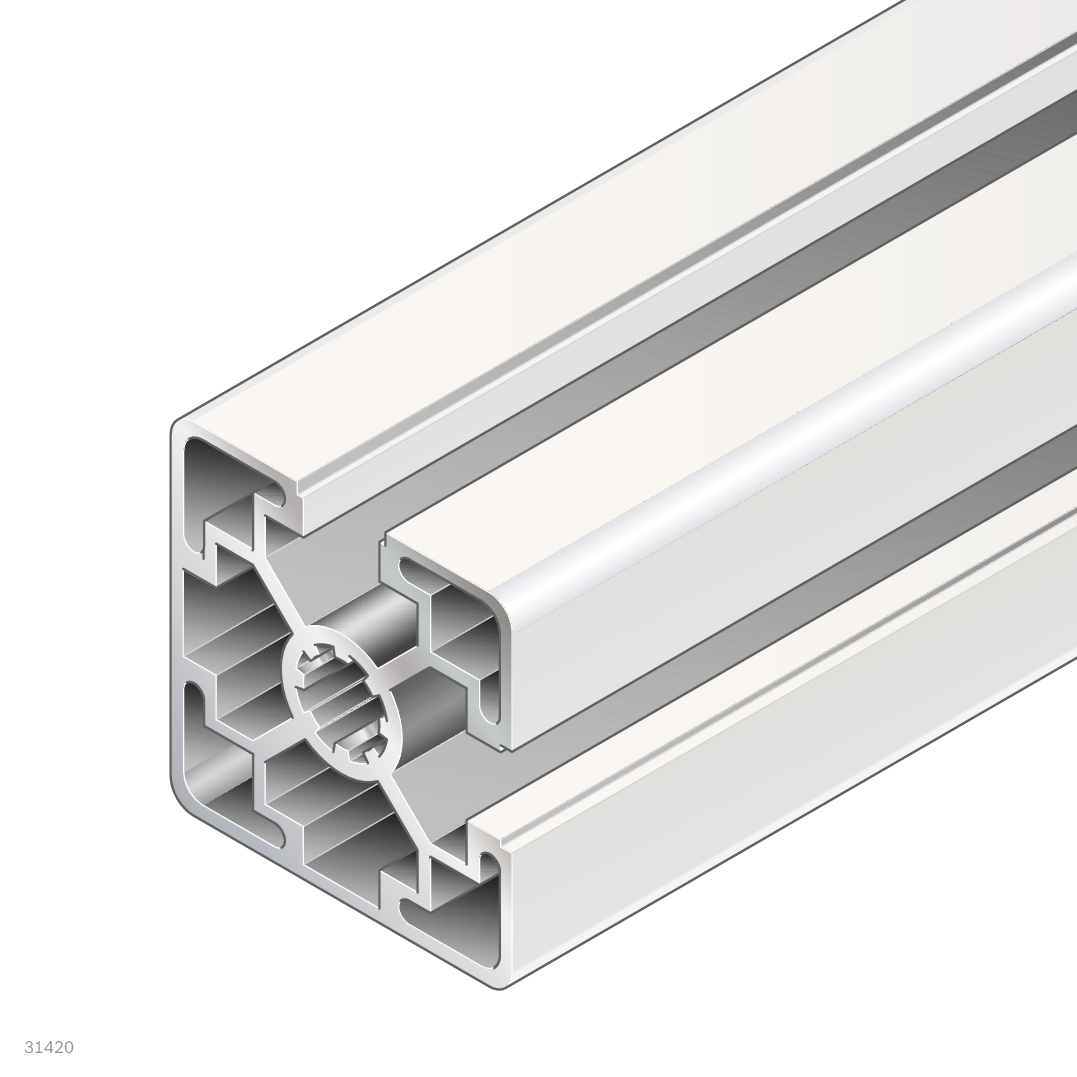

The product may differ from the illustration
Strut profile with 45x45L 2NVS cross-section in anodized aluminum, natural color, ESD-suitable, supplied in standard length of 6070 mm. Features two open slots, profile slot 10, and a 45 mm modular dimension for straightforward integration into assembly system frameworks. Delivered as a packaging unit of 20 pieces.
Strebenprofil 45x45L 2NVS, eloxiertes Aluminium, ESD-geeignet, 6070 mm - Bosch Rexroth 3842557223
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,041.14 €2,555.58
excl. Shipping Cost
Item BRR-3842557223
Manufacturer no. 3842557223
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557223
Country of originSweden
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557223
The Bosch Rexroth strut profile 45x45L 2NVS is an anodized aluminum structural profile rated for ESD-sensitive environments, designed for use within the Bosch Rexroth assembly technology system. The 45x45 mm cross-section with two open slots and profile slot 10 allows versatile connections across workstation and frame constructions. At 6070 mm standard length, large-format structures can be built without joins. Recommended accessories: cover cap 45x45 (signal gray or black, with or without hole).
- ESD-suitable - safe for use in electrostatic discharge sensitive production areas
- Anodized aluminum - corrosion-resistant, lightweight and durable
- Two open slots - flexible connection options for brackets and accessories
- Profile slot 10, 45 mm modular dimension - fully compatible with the Bosch Rexroth assembly system
- Supplied as packaging unit in standard length - efficient stock management
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x45L 2NVS |
| Profile type | 2NVS |
| Dimensions | 45x45 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 2 |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 6.4 cm² |
| Mass [m] | 1.7 kg |
| Weight (packaging unit) | 224.5 kg |
| Delivery unit | 20 pieces |
| Condition on delivery | Packaging unit in standard length |
| Area moment of inertia in x-direction [lx] | 12.6 cm⁴ |
| Area moment of inertia in y-direction [ly] | 12.6 cm⁴ |
| Moment of resistance in x-direction [Wx] | 5.6 cm³ |
| Moment of resistance in y-direction [Wy] | 5.6 cm³ |
| Torsional moment of inertia [It] | 6.3 cm⁴ |
| Moment of torsion resistance [Wt] | 3.8 cm³ |
| Recommended accessories | Cover cap 45x45 signal gray, Cover cap 45x45 black, Cover cap with hole 45x45 signal gray, Cap with hole 45x45 black |
| Hersteller-Nr | 3842557223 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 224.500000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
