The product may differ from the illustration
Anodized aluminum frame profile for the Bosch Rexroth WG30 protective grille system, cross-section 30x45 mm, length 6070 mm. Supplied as a packaging unit of 20 pieces in standard length, it provides the structural basis for modular guards and dividing walls in assembly systems. Central bolt, woven wire grille, and spring clamping elements are required accessories ordered separately.
Rahmenprofil 30x45 WG30, 6070 mm, Aluminium eloxiert - Bosch Rexroth 3842557228
BOSCH REXROTH Original product
Net price (excl. VAT)
€2,601.79 €2,186.38
excl. Shipping Cost
Item BRR-3842557228
Manufacturer no. 3842557228
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557228
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557228
The 30x45 frame profile for the Bosch Rexroth WG30 protective grille system forms the load-bearing structure of modular guards and partition walls in industrial assembly lines. Anodized aluminum combines low weight with high rigidity and a corrosion-resistant surface finish.

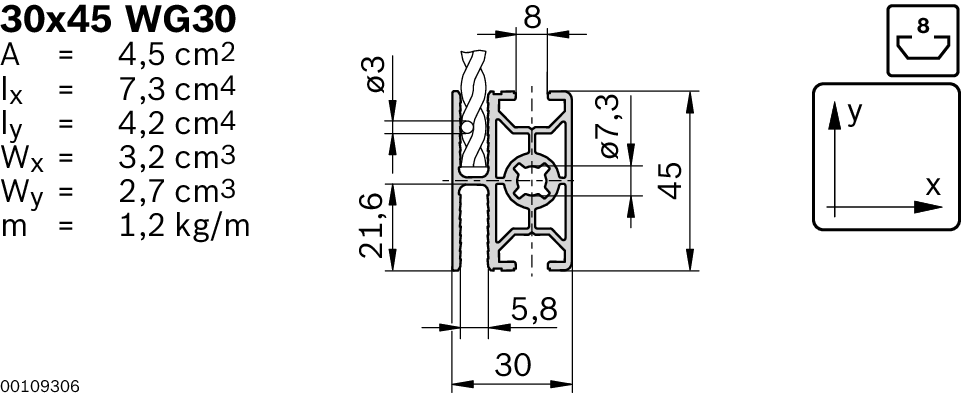

- Defined structural performance: Area moment of inertia lx 7.3 cm⁴ / ly 4.2 cm⁴ and moment of resistance Wx 3.2 cm³ / Wy 2.7 cm³ for reliable engineering calculations.
- System-compatible profile slot 8: Matches the standardized slot system of the WG30 modular kit, enabling low-tool assembly with central bolts and spring clamping elements.
- Anodized aluminum: Corrosion-resistant, lightweight, and rated for long-term use in industrial environments.
- Packaging unit of 20 pieces: Standard length 6070 mm, mass per piece 1.2 kg; total packaging unit weight 150.6 kg.
Technical data
| Property | Value |
|---|---|
| Length [L] | 6070 mm |
| Cross-section | 30 x 45 mm |
| Profile surface [A] | 4.5 cm² |
| Profile slot | 8 |
| Material | Aluminum, anodized |
| Mass [m] per piece | 1.2 kg |
| Weight, packaging unit | 150.6 kg |
| Delivery unit | 20 pieces |
| Condition on delivery | Packaging unit in standard length |
| Area moment of inertia lx | 7.3 cm⁴ |
| Area moment of inertia ly | 4.2 cm⁴ |
| Moment of resistance Wx | 3.2 cm³ |
| Moment of resistance Wy | 2.7 cm³ |
| Required accessories | Central bolt, woven wire grille, spring clamping elements |
| Hersteller-Nr | 3842557228 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Weight | 150.600000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
