Extruded anodized aluminum strut profile with a 45x270 mm cross-section, 13 open slots, and ESD certification, supplied as a pack of two bars each 6070 mm long. Based on the 45 mm modular grid, it suits load-bearing frame structures and electrostatically protected assembly systems. Mass per bar: 16.7 kg; total pack weight: 228.1 kg.
Strut Profile 45x270, 2x 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557949
BOSCH REXROTH
Original product
Net price (excl. VAT)
€2,536.57
Item
BRR-3842557949
Manufacturer no.
3842557949
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842557949
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557949

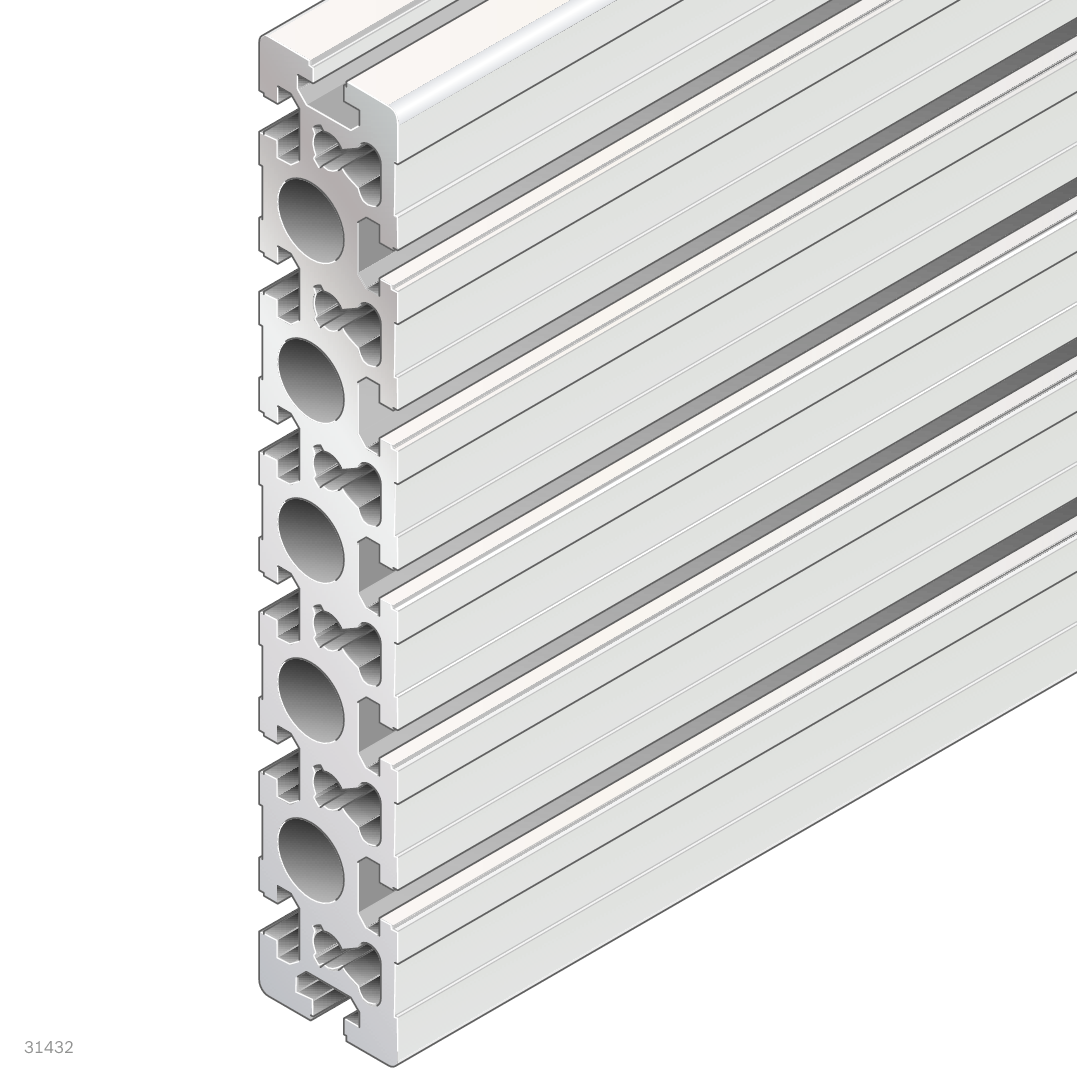

The Bosch Rexroth strut profile 45x270 is an extruded, anodized aluminum profile built on the 45 mm modular grid. Its 45x270 mm cross-section provides high bending stiffness in the x-direction, and ESD certification makes it suitable for use in electrostatic discharge-protected workstation systems. The pack contains two bars, each 6070 mm long.
- 13 open slots (profile slot 10) for flexible connecting and mounting options
- ESD-rated - suitable for use in protected ESD areas
- High load capacity: area moment of inertia lx = 3962 cm⁴, moment of resistance Wx = 300.2 cm³
- Factory-machined M12 threads in core pulls under slots C and F
- Supplied as a pack of 2 bars at 6070 mm each; mass per bar 16.7 kg
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x270 mm |
| Length [L] | 6070 mm |
| Delivery unit | 2 bars |
| Condition on delivery | Packaging unit in standard length |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 13 |
| Profile type | Standard |
| ESD | Yes |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 61.9 cm² |
| Area moment of inertia lx (x-direction) | 3962 cm⁴ |
| Moment of resistance Wx (x-direction) | 300.2 cm³ |
| Area moment of inertia ly (y-direction) | 118 cm⁴ |
| Moment of resistance Wy (y-direction) | 61.6 cm³ |
| Mass per bar [m] | 16.7 kg |
| Weight (pack) | 228.1 kg |
| Profile machining | M12: in core pulls under slots C and F |
| Recommended accessories | Cover cap 45x90, black ESD; Cover cap 45x90, signal gray |
| Hersteller-Nr | 3842557949 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 228.100000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
