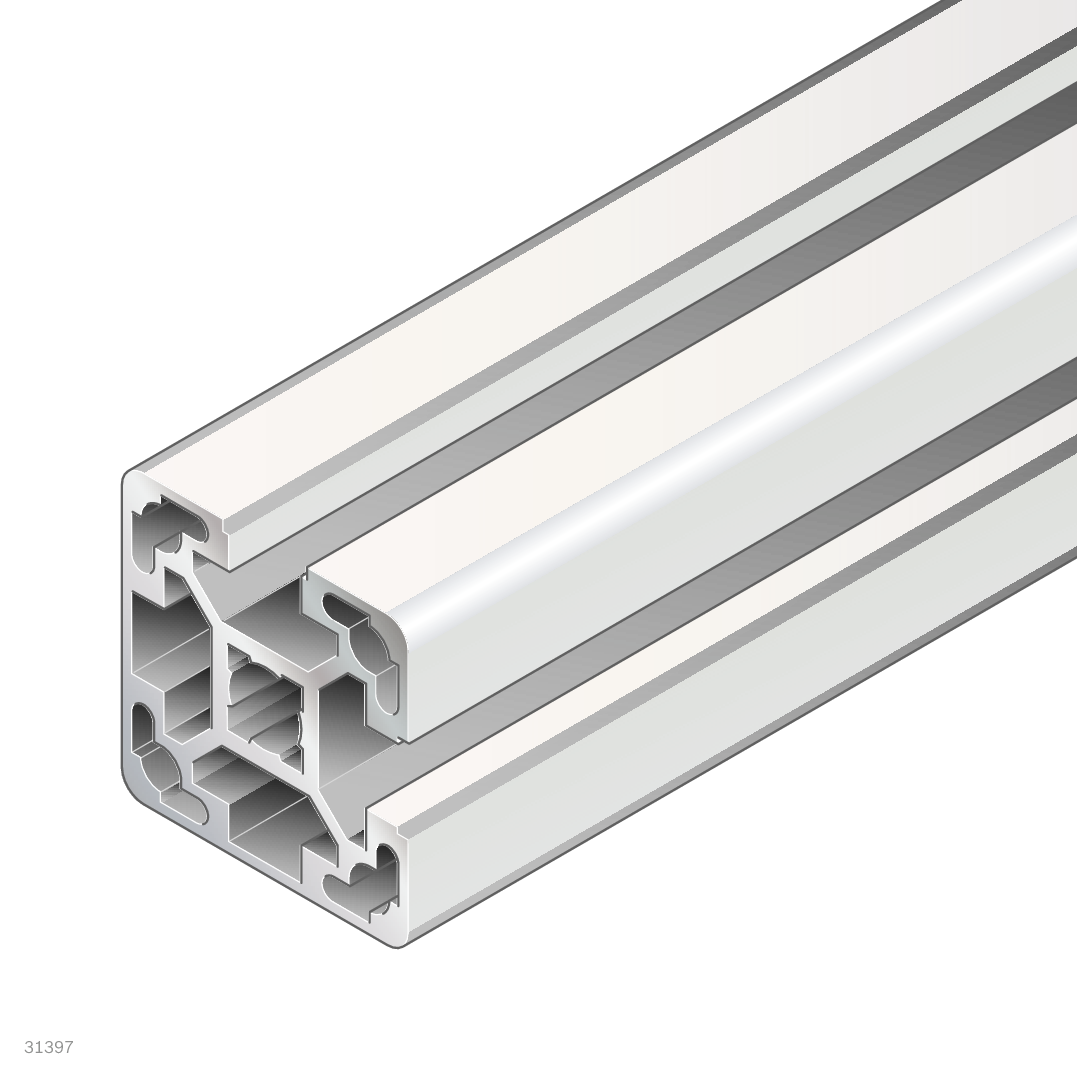

The product may differ from the illustration
ESD-capable aluminum strut profile 40x40L 2NVS with slot 10 for building frames and machine structures. The anodized surface dissipates electrostatic charges, making it suitable for ESD-protected workstations. Supplied in 6070 mm standard length.
Strebenprofil 40x40L ESD, Nut 10, Aluminium eloxiert - Bosch Rexroth 3842529365
BOSCH REXROTH Original product
Net price (excl. VAT)
€2,842.68 €2,388.81
Item BRR-3842529365
Manufacturer no. 3842529365
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529365
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842529365
The Bosch Rexroth strut profile 40x40L 2NVS is an anodized aluminum construction profile for the modular assembly of frames, machine structures and fixtures in assembly technology. Its ESD property dissipates electrostatic charges, making the profile suitable for workstations and systems handling sensitive electronic components.
- ESD-capable for use in electrostatically protected areas
- Profile slot 10 for flexible connection technology and accessories
- Modular dimension 40 mm for dimensionally accurate structures
- Supplied in 6070 mm standard length, delivery unit of 20 pieces
Technical data
| Property | Value |
|---|---|
| Cross-section | 40x40L 2NVS |
| Dimensions | 40x40 |
| Profile type | 2NVS |
| Profile slot | 10 |
| Open slots | 2 |
| Modular dimension | 40 mm |
| ESD | yes |
| Color | Natural |
| Material | Aluminum, anodized |
| Length [L] | 6070 mm |
| Profile surface [A] | 6 cm² |
| Area moment of inertia in x-direction [Ix] | 9.7 cm⁴ |
| Area moment of inertia in y-direction [Iy] | 9.7 cm⁴ |
| Moment of resistance in the x-direction [Wx] | 4.9 cm³ |
| Moment of resistance in the y-direction [Wy] | 4.9 cm³ |
| Torsional moment of inertia [It] | 4.5 cm⁴ |
| Moment of torsion resistance [Wt] | 2.7 cm³ |
| Mass [m] | 1.6 kg/m |
| Condition on delivery | Packaging unit in standard length |
| Delivery unit | 20 |
| Weight (delivery unit) | 210 kg |
| Recommended accessories | Cover cap 40x40 |
| Hersteller-Nr | 3842529365 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 210.000000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
