The product may differ from the illustration
Structural strut profile in anodized aluminum, 80x80L cross-section with 4 open slots (profile slot 10) and a 40 mm modular dimension. Standard length is 6070 mm; the packaging unit contains 6 profiles (total weight 206 kg). ESD-suitable and fully compatible with the Bosch Rexroth 80 mm assembly system.
Strebenprofil 80x80L 4N, eloxiertes Aluminium, 6070 mm, 6 Stück - Bosch Rexroth 3842555651
BOSCH REXROTH Original product
Net price (excl. VAT)
€2,821.70 €2,371.18
Item BRR-3842555651
Manufacturer no. 3842555651
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842555651
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842555651
The 80x80L 4N strut profile is a load-bearing aluminum section for constructing assembly, conveyor and guarding structures within the Bosch Rexroth modular building system. The symmetric 80x80 mm cross-section with 4 open slots allows connections on all four sides, while the 40 mm modular dimension ensures full compatibility with all profile and connector components in the series.
- High bending stiffness: area moments of inertia lx and ly each 142.5 cm⁴ - suited for load-bearing frame structures
- Symmetric 4-slot profile: all four faces accessible without restriction on orientation
- ESD-suitable: anodized aluminum surface meets ESD requirements for electrostatic-sensitive work areas
- Pack of 6 in standard length: efficient storage and picking, minimal offcut waste
- Recommended accessories: cover cap 80x80 (signal gray or black) for clean end faces

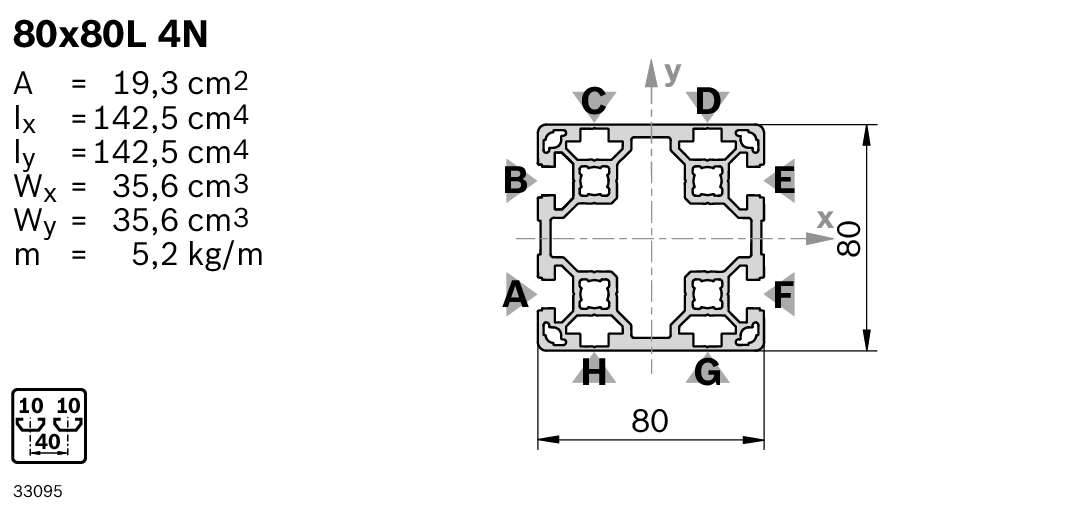

Technical data
| Property | Value |
|---|---|
| Cross-section | 80x80L 4N |
| Dimensions | 80 x 80 mm |
| Length [L] | 6070 mm |
| Profile type | 4N |
| Open slots | 4 |
| Profile slot | 10 |
| Modular dimension | 40 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 19.3 cm² |
| Area moment of inertia X [lx] | 142.5 cm⁴ |
| Area moment of inertia Y [ly] | 142.5 cm⁴ |
| Moment of resistance X [Wx] | 35.6 cm³ |
| Moment of resistance Y [Wy] | 35.6 cm³ |
| Torsional moment of inertia [It] | 92 cm⁴ |
| Moment of torsion resistance [Wt] | 16.8 cm³ |
| Mass [m] (per bar) | 5.2 kg |
| Delivery unit | 6 pieces |
| Total weight (packaging unit) | 206 kg |
| Recommended accessories | Cover cap 80x80, signal gray; Mounting hole plug 80x80, black |
| Hersteller-Nr | 3842555651 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 206.000000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
