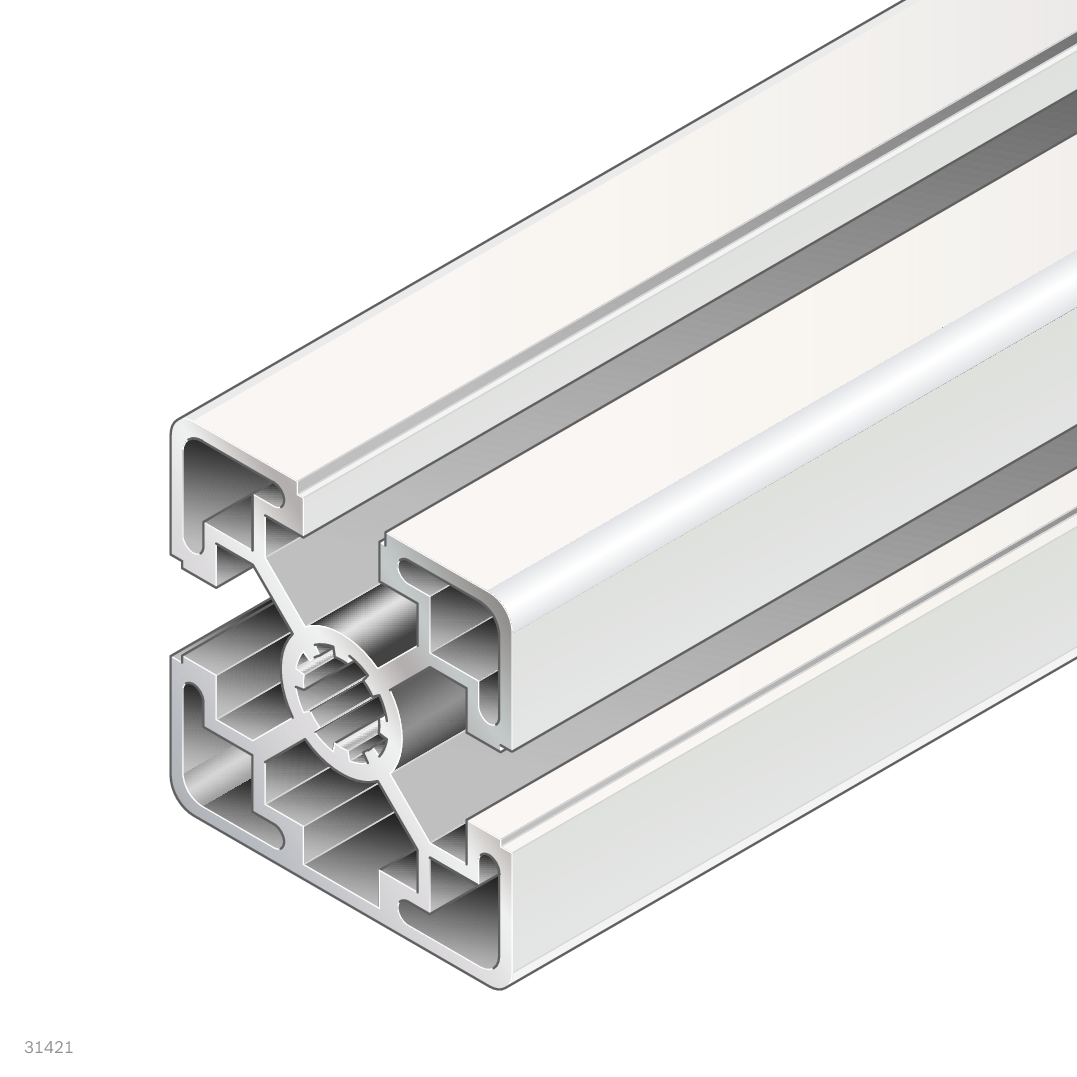

The product may differ from the illustration
Strut profile with 45x45L 3N cross-section and three open slots for versatile connections within the aluminum profile system. The anodized finish and ESD rating make it suitable for electrostatic-protected workstation and machine structures. Delivery unit: 20 pieces at 6070 mm length, mass per profile 1.7 kg.
Strebenprofil 45x45L 3N, 20 x 6070 mm, Aluminium eloxiert, ESD - Bosch Rexroth 3842557225
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,041.14 €2,555.58
excl. Shipping Cost
Item BRR-3842557225
Manufacturer no. 3842557225
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557225
Country of originSweden
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557225
The Bosch Rexroth strut profile 45x45L 3N is an anodized aluminum profile with three open slots, 45 mm modular dimension, and ESD compliance. It is part of the modular aluminum profile system and is used to build workstation systems, machine enclosures, and support structures in ESD-sensitive environments. Supply is as a packaging unit in standard length (20 pieces, each L = 6070 mm).
- 3 open slots for flexible connections in X, Y, and diagonal directions
- ESD-rated - suitable for electrostatic-protected areas
- 45 mm modular dimension - compatible with the Bosch Rexroth 45 profile system
- Anodized aluminum surface - corrosion-resistant and durable
- Recommended accessories: cover cap 45x45 black ESD, cover cap 45x45 signal gray, cap with hole 45x45 black ESD, cover cap with hole 45x45 signal gray
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x45L 3N |
| Profile type | 3N |
| Dimensions | 45x45 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Open slots | 3 |
| Profile slot | 10 |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Mass per profile [m] | 1.7 kg |
| Weight packaging unit | 217.1 kg |
| Delivery unit | 20 pieces |
| Condition on delivery | Packaging unit in standard length |
| Profile surface [A] | 6.2 cm² |
| Area moment of inertia x-direction [lx] | 12.6 cm⁴ |
| Area moment of inertia y-direction [ly] | 11.7 cm⁴ |
| Moment of resistance x-direction [Wx] | 5.4 cm³ |
| Moment of resistance y-direction [Wy] | 5.2 cm³ |
| Torsional moment of inertia [It] | 3.4 cm⁴ |
| Moment of torsion resistance [Wt] | 2.4 cm³ |
| Hersteller-Nr | 3842557225 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 217.100000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
