Flat aluminum strut profile with a 22.5x180 mm cross-section, 9 open slots (profile slot 10, modular dimension 45 mm) in an ESD-compliant design. Each packaging unit contains 6 pieces at 6070 mm length, with an individual mass of 5.8 kg per piece. Suited for building antistatic assembly systems within the Bosch Rexroth aluminum profile construction kit.
Nutenplatte 22,5x180, 6x L=6070mm, Aluminium eloxiert, ESD - Bosch Rexroth 3842557944
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,427.62 €2,880.35
excl. Shipping Cost
Item BRR-3842557944
Manufacturer no. 3842557944
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557944
Country of originSweden
Customs tariff number76109090
ConditionNew
Artikel
BRR-3842557944

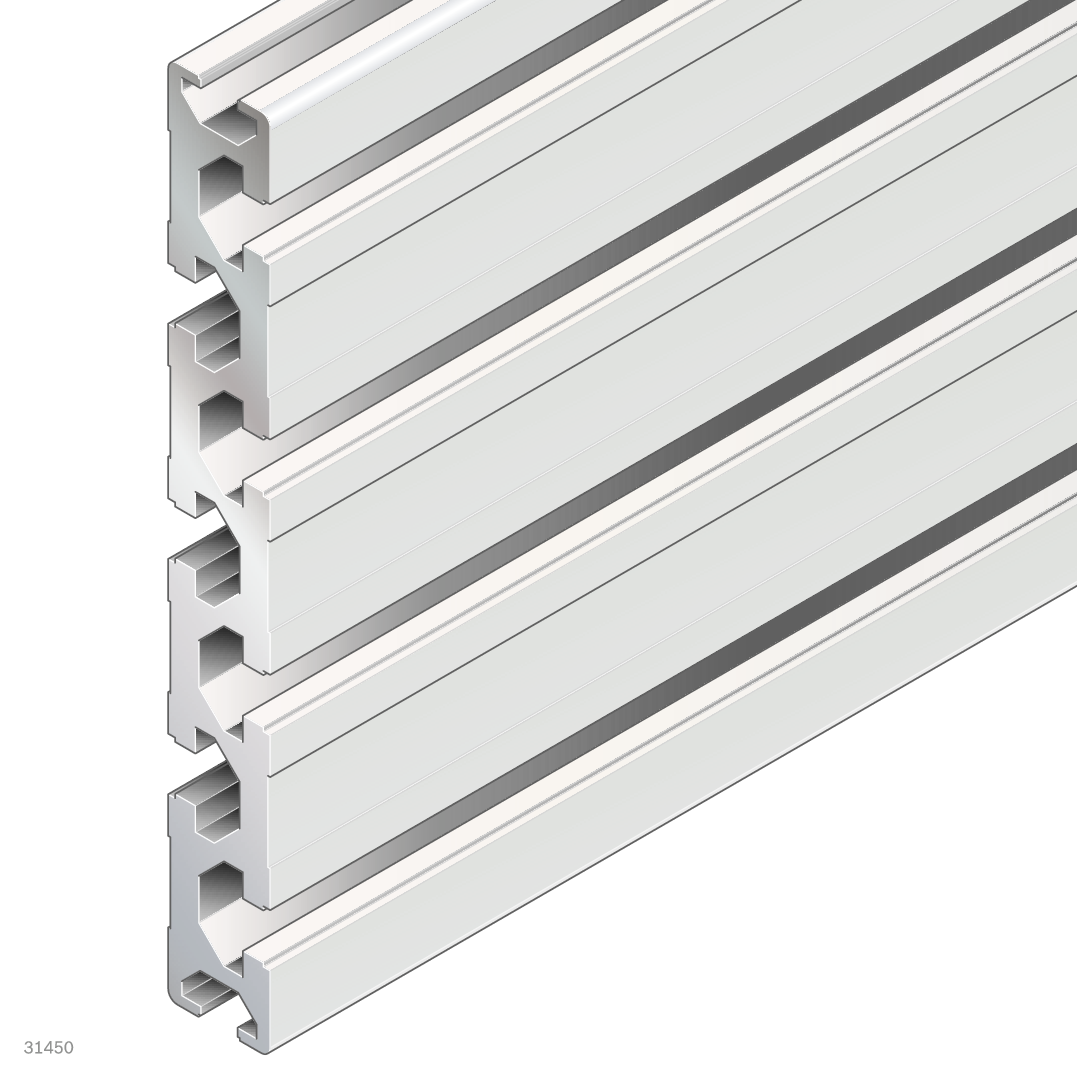

The T-Slot Plate 22.5x180 is a flat aluminum strut profile for building assembly lines, workstations, and fixtures within the Bosch Rexroth modular construction system. The anodized profile is ESD-compliant, making it suitable for electrostatically sensitive production environments. Supplied as a packaging unit of 6 pieces at the standard length of 6070 mm.
- 9 open slots and profile slot 10 for maximum connection flexibility on a 45 mm modular grid
- ESD design for use in electrostatic protected areas (EPA)
- High bending stiffness: area moment of inertia lx = 581 cm⁴, moment of resistance Wx = 66.8 cm³
- Profile machining D28: holes pre-machined in slots G and I at the factory
- Anodized aluminum (color: natural) - corrosion-resistant with a durable surface finish
- Packaging unit of 6 pieces, individual mass 5.8 kg each, total unit weight 226.8 kg
Technical data
| Property | Value |
|---|---|
| Cross-section | 22.5x180 mm |
| Dimensions (inner) | 11.5x180 mm |
| Length [L] | 6070 mm |
| Profile type | Standard |
| Profile slot | 10 |
| Modular dimension | 45 mm |
| Open slots | 9 |
| ESD | yes |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 21.6 cm² |
| Area moment of inertia in x-direction [lx] | 581 cm⁴ |
| Moment of resistance in x-direction [Wx] | 66.8 cm³ |
| Area moment of inertia in y-direction [ly] | 11.8 cm⁴ |
| Moment of resistance in y-direction [Wy] | 14.7 cm³ |
| Profile machining | D28: holes in slots G and I |
| Mass [m] (per piece) | 5.8 kg |
| Delivery unit | 6 pieces |
| Condition on delivery | Packaging unit in standard length |
| Total unit weight | 226.8 kg |
| Recommended accessories | Cover cap 22.5x180, black ESD; Cover cap 22.5x180, signal gray |
| Hersteller-Nr | 3842557944 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 226.800000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76109090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
