Anodized aluminum strut profile with a 90x90 mm cross-section, 8 open slots (slot size 10) and a 45 mm modular dimension for flexible, bolt-together assembly structures. Supplied as a 1000 mm cut piece, compatible with all Bosch Rexroth size-90 connectors and accessories. High area moment of inertia (299.8 cm⁴) makes it suitable for load-bearing frames and machine guarding.

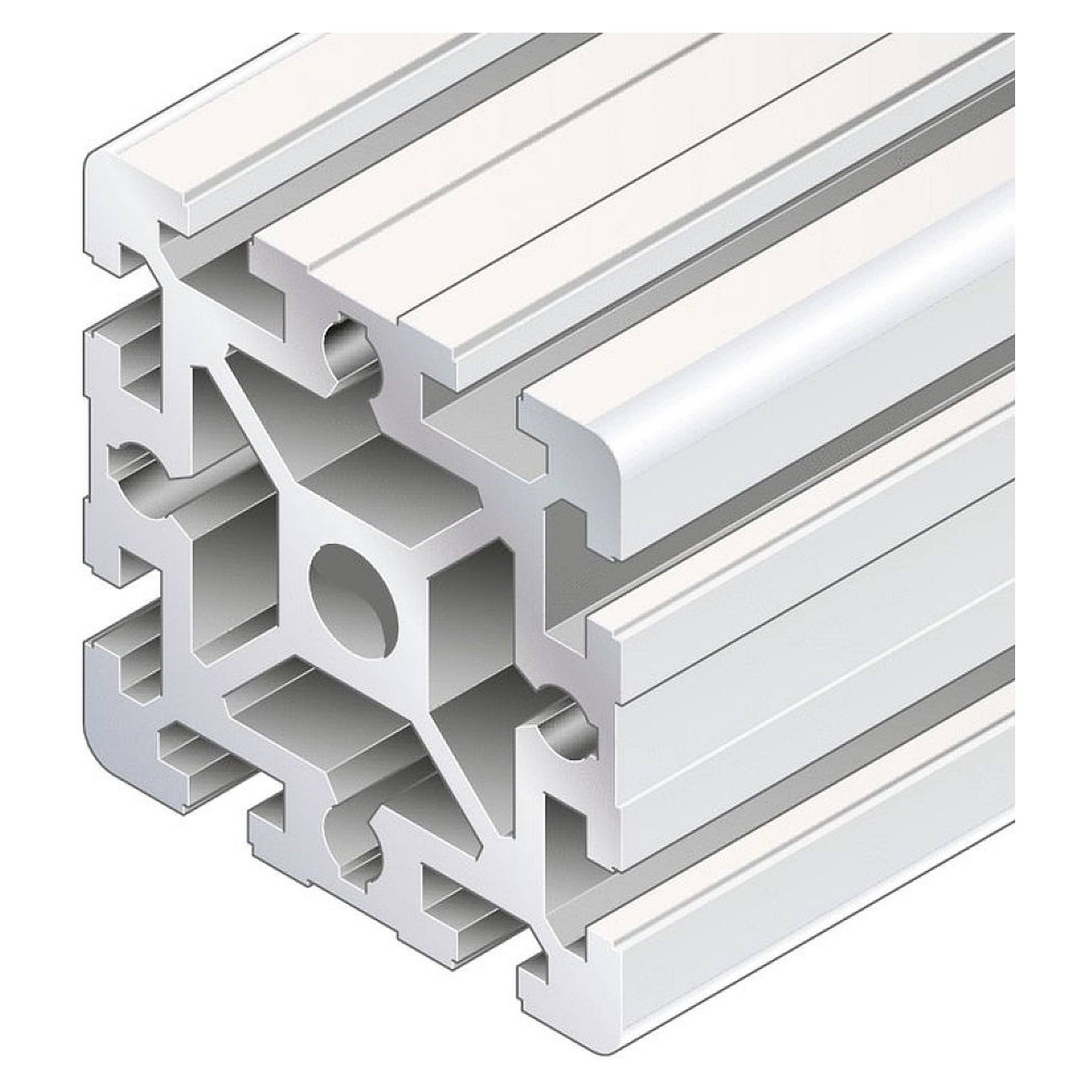

Strebenprofil 90x90 M16/M16, 1000 mm - Bosch Rexroth 3842990502-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€160.98 €135.28
Item BRR-3842990502-1000
Manufacturer no. 3842990502-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842990502-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842990502-1000
The Strut Profile 90x90 M16/M16 is a symmetric, anodized aluminum structural profile that forms the backbone of rigid, modular assembly systems. Eight open slots (slot size 10, 45 mm modular pitch) on all four faces allow connectors, linear guides, and ancillary components to be added or repositioned at any point without drilling or welding.
- High bending stiffness: area moment of inertia lx = ly = 299.8 cm⁴, moment of resistance Wx = Wy = 66.7 cm³.
- Torsional rigidity: torsional moment of inertia It = 118.6 cm⁴, torsional moment of resistance Wt = 26 cm³.
- Profile surface area A = 38.4 cm², mass 10.4 kg/m - suited to heavy-duty structures.
- Anodized surface: corrosion-resistant, wear-resistant, natural finish.
- Supplied as a 1000 mm piece (cut lengths from 240 mm to 6000 mm available, packaging unit: 1).
- Compatible with Bosch Rexroth size-90 accessories: cover caps 90x90 (black/signal gray), cover caps with hole 90x90.
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90 mm |
| Profile type | Standard |
| Slot size | 10 |
| Open slots | 8 |
| Modular dimension | 45 mm |
| Supplied length | 1000 mm |
| Length min / max | 240 mm / 6000 mm |
| Area moment of inertia lx = ly | 299.8 cm⁴ |
| Moment of resistance Wx = Wy | 66.7 cm³ |
| Torsional moment of inertia It | 118.6 cm⁴ |
| Torsional moment of resistance Wt | 26 cm³ |
| Profile surface area A | 38.4 cm² |
| Mass m | 10.4 kg/m |
| Material | Aluminum, anodized |
| Color | Natural |
| Packaging unit | 1 piece |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842990502-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
