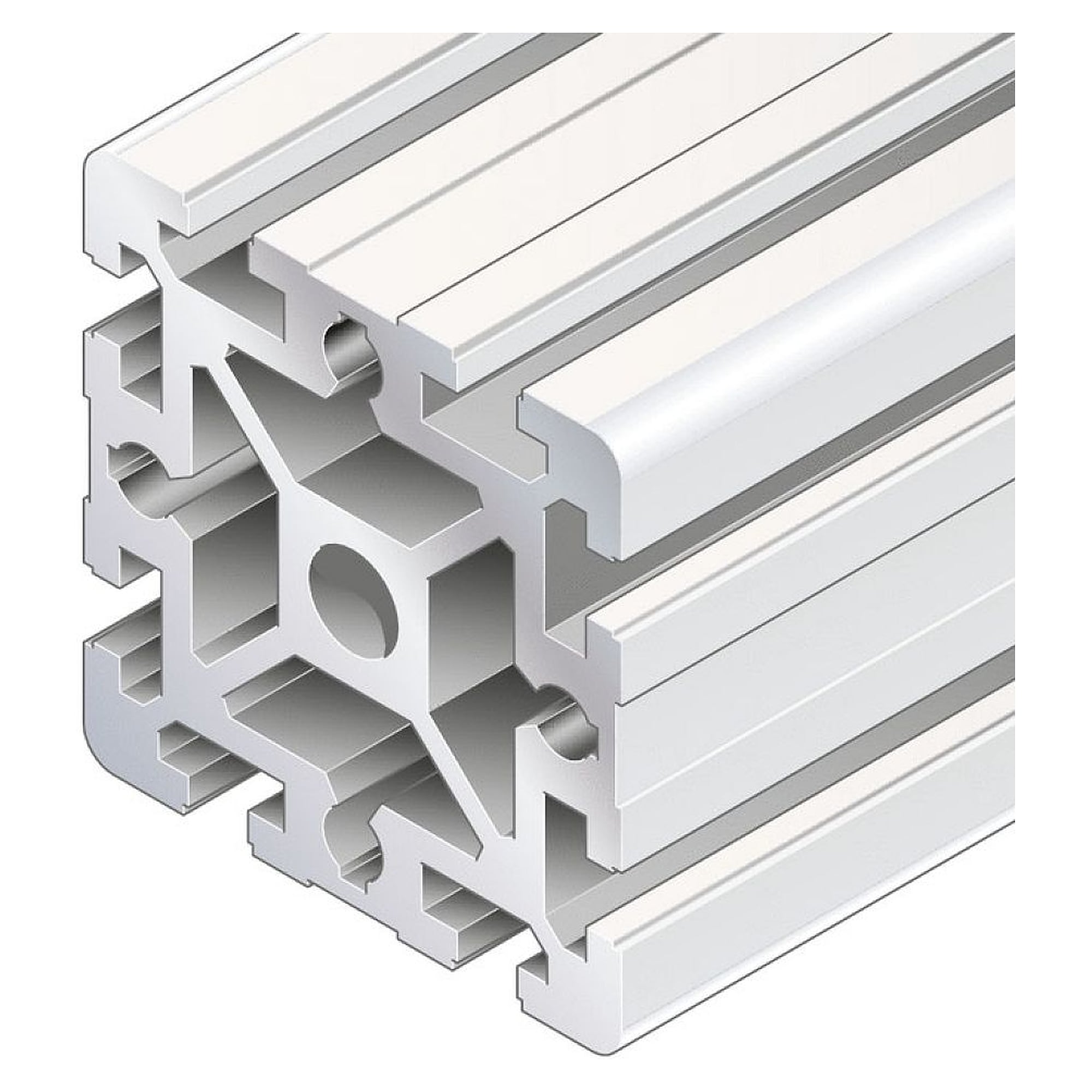

The product may differ from the illustration
Strut profile 90x90 F2/- in anodized aluminum (natural) with 8 open slots and a modular dimension of 45 mm for building load-bearing frames and machine structures. Supplied at 1000 mm; cut-to-length from 60 mm to 6000 mm. Area moment of inertia of 299.8 cm⁴ and torsional moment of inertia of 118.6 cm⁴ deliver high rigidity for demanding structural applications.
Strebenprofil 90x90 F2/-, 1000 mm, Aluminium eloxiert, 8 Nuten - Bosch Rexroth 3842990505-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€167.54 €140.79
Item BRR-3842990505-1000
Manufacturer no. 3842990505-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842990505-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842990505-1000
The Bosch Rexroth strut profile 90x90 F2/- is a symmetric structural aluminum profile with a 90x90 mm cross-section, 8 open slots (slot size 10) and a 45 mm modular dimension. It is designed for load-bearing frames, machine bases and modular assembly systems where high rigidity and full-perimeter connection flexibility are required. The profile is supplied anodized in natural finish and can be cut to any length between 60 mm and 6000 mm.
- 8 open slots allow connections and attachments on all sides without pre-drilling
- 45 mm modular dimension ensures full compatibility across the Bosch Rexroth profile system
- Anodized aluminum surface provides lasting corrosion and wear resistance
- Profile surface area of 38.4 cm² and mass of 10.4 kg/m deliver a favorable stiffness-to-weight ratio
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90 mm |
| Profile type | Standard |
| Profile slot | 10 |
| Open slots | 8 |
| Modular dimension | 45 mm |
| Supplied length | 1000 mm |
| Length min / max | 60 mm / 6000 mm |
| Color | Natural |
| Material | Aluminum, anodized |
| Profile surface [A] | 38.4 cm² |
| Mass [m] | 10.4 kg/m |
| Area moment of inertia X [lx] | 299.8 cm⁴ |
| Area moment of inertia Y [ly] | 299.8 cm⁴ |
| Moment of resistance X [Wx] | 66.7 cm³ |
| Moment of resistance Y [Wy] | 66.7 cm³ |
| Torsional moment of inertia [It] | 118.6 cm⁴ |
| Moment of torsion resistance [Wt] | 26 cm³ |
| Packaging unit | 1 piece |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842990505-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
