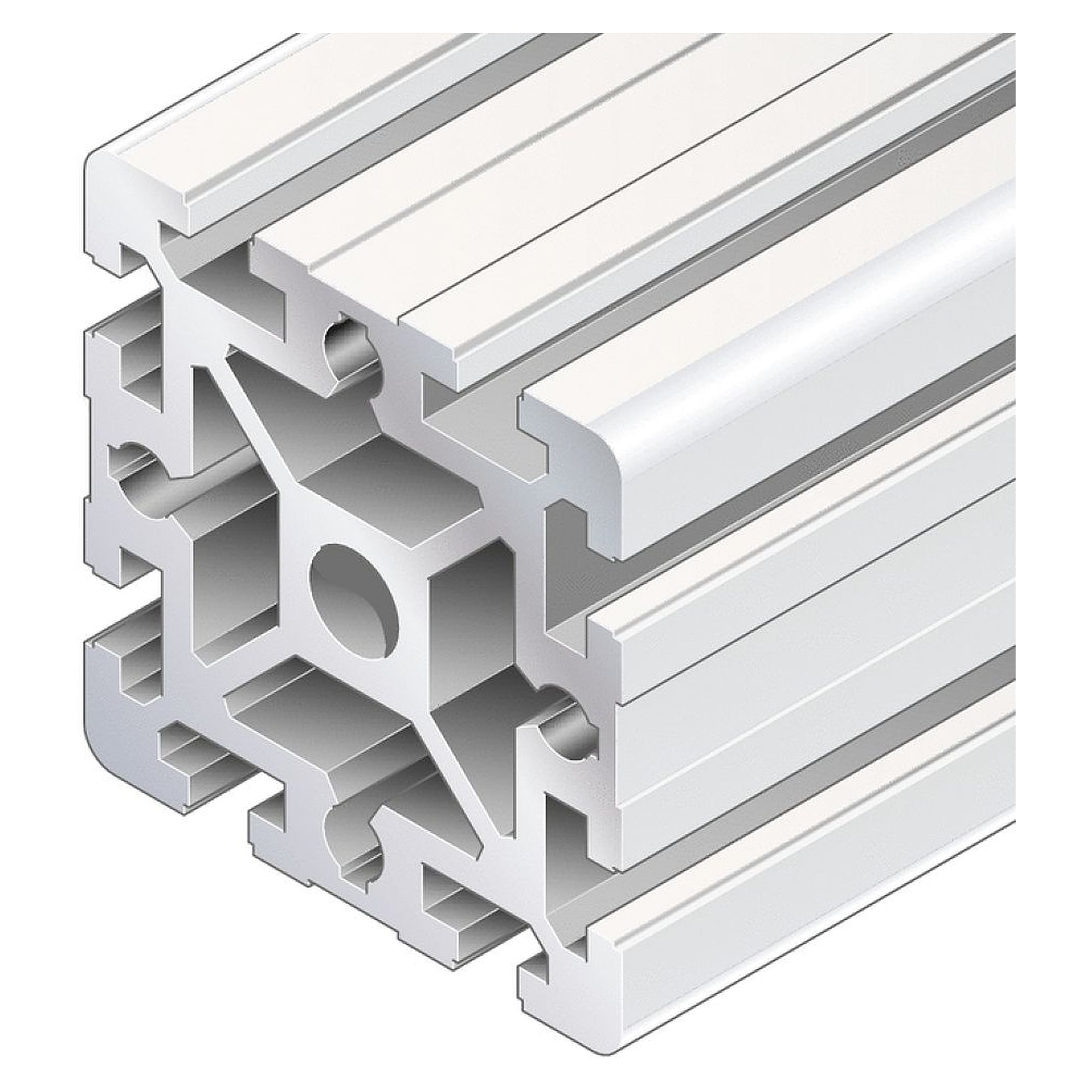

The product may differ from the illustration
Anodized aluminum strut profile with a 90x90 mm cross-section, 8 open slots (slot width 10 mm), and a modular dimension of 45 mm. Designed for modular assembly frames, machine guards, and enclosures within the Rexroth profile system. Available in lengths from 110 mm to 6000 mm; this variant is 1000 mm.
Strebenprofil 90x90 F2/F2, Aluminium eloxiert, 1000 mm - Bosch Rexroth 3842990507-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€187.22 €157.33
Item BRR-3842990507-1000
Manufacturer no. 3842990507-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842990507-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842990507-1000
The Strut Profile 90x90 F2/F2 is an anodized aluminum profile for modular machine and system construction. Its symmetric cross-section with 8 open slots and a profile surface of 38.4 cm² provides high rigidity at a mass of 10.4 kg/m, and it is fully compatible with all Bosch Rexroth profile system accessories.
- 8 open slots (slot width 10 mm) allow connections on all faces without additional machining
- Modular dimension 45 mm - compatible with the complete Rexroth 90-series profile system
- Area moment of inertia Ix = Iy = 299.8 cm⁴ and moment of resistance Wx = Wy = 66.7 cm³ for equal bending stiffness in both axes
- Torsional moment of inertia It = 118.6 cm⁴, moment of torsion resistance Wt = 26 cm³
- Anodized natural finish - corrosion-resistant, clean-room compatible surface
- Cut-to-length ordering from 110 mm to 6000 mm; packaging unit 1 piece
Technical data
| Property | Value |
|---|---|
| Cross-section | 90 x 90 mm |
| Profile type | Standard F2/F2 |
| Modular dimension | 45 mm |
| Open slots | 8 |
| Slot width | 10 mm |
| Length (this variant) | 1000 mm |
| Length min / max | 110 mm / 6000 mm |
| Profile surface [A] | 38.4 cm² |
| Mass [m] | 10.4 kg/m |
| Area moment of inertia [Ix = Iy] | 299.8 cm⁴ |
| Moment of resistance [Wx = Wy] | 66.7 cm³ |
| Torsional moment of inertia [It] | 118.6 cm⁴ |
| Moment of torsion resistance [Wt] | 26 cm³ |
| Material | Aluminum, anodized |
| Color | Natural |
| Packaging unit | 1 piece |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842990507-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
