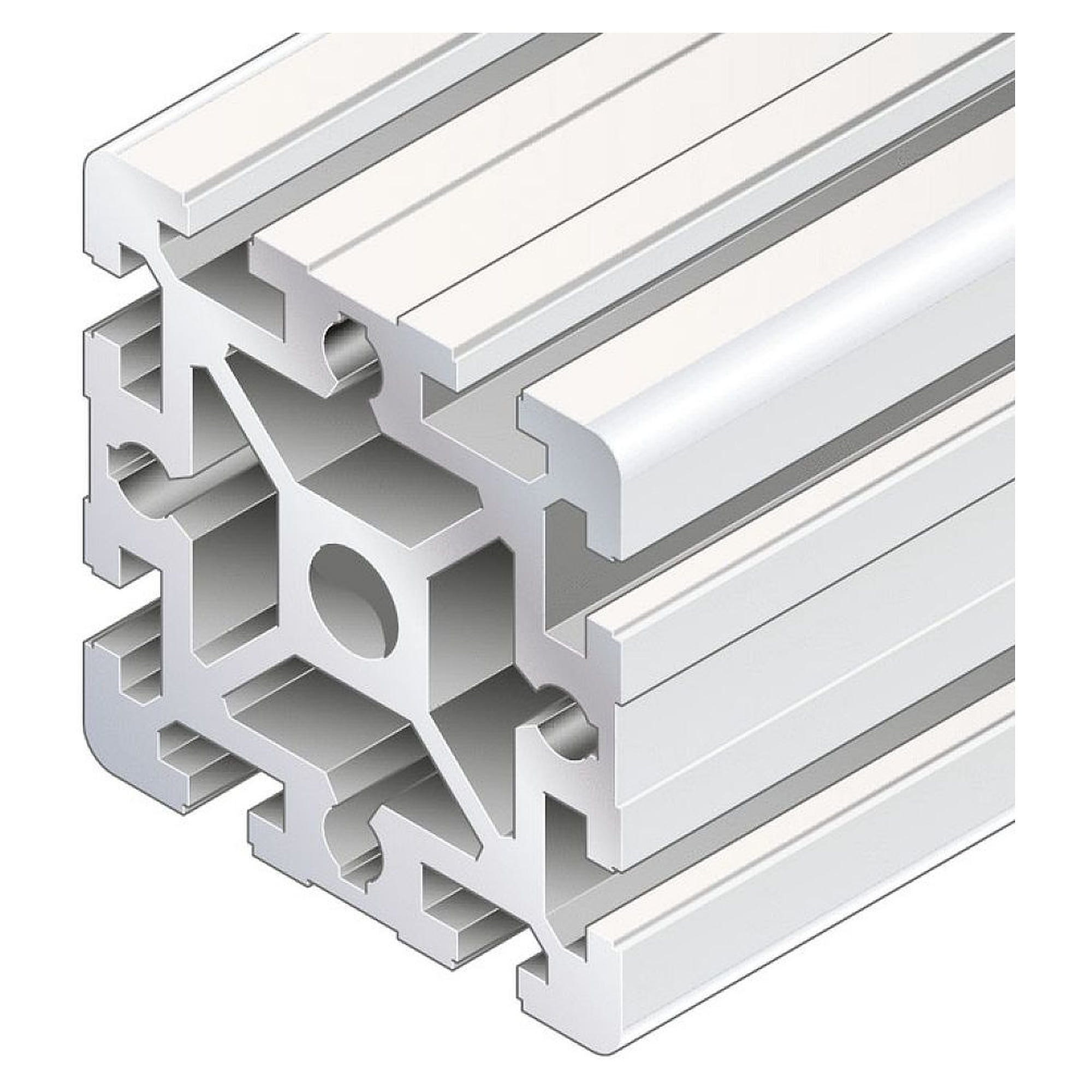

The Strut Profile 90x90 M16/D17 is an anodized aluminum structural profile with eight open slots and a 45 mm modular dimension, designed for building machine frames, assembly systems, and protective enclosures. Its symmetrical 90x90 mm cross-section delivers identical area moments of inertia in both axes (299.8 cm⁴ each), providing uniform stiffness under multi-directional loads. The standard 1000 mm length can be cut to size from 170 mm up to a maximum delivery length of 6000 mm.
Strebenprofil 90x90 M16/D17, 1000 mm - Bosch Rexroth 3842992961-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€162.96 €136.94
Item BRR-3842992961-1000
Manufacturer no. 3842992961-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842992961-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842992961-1000
The Bosch Rexroth Strut Profile 90x90 M16/D17 is an anodized aluminum structural profile from the Rexroth aluminum profile system. Eight open slot-10 grooves, a 45 mm modular dimension, and a 90x90 mm cross-section make it a versatile load-bearing element for machine frames, production line structures, safety guards, and modular assembly systems. All standard Rexroth system accessories are directly compatible via the slot-10 interface.
- Eight open slots provide full connection flexibility on all four profile faces
- Symmetrical cross-section: area moment of inertia Ix = Iy = 299.8 cm⁴ - equal rigidity in both bending directions
- High torsional stiffness: torsional moment of inertia It = 118.6 cm⁴, moment of torsion resistance Wt = 26 cm³
- Anodized aluminum - corrosion-resistant, natural color finish, ready to install
- Cut-to-length capability: 170 mm to 6000 mm; standard delivery 1000 mm
- Packaging unit 1 piece; mass 10.4 kg/m
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90 mm |
| Profile type | Standard |
| Profile slot | Slot 10 |
| Modular dimension | 45 mm |
| Open slots | 8 |
| Length (standard delivery) | 1000 mm |
| Length min / max | 170 mm / 6000 mm |
| Area moment of inertia Ix = Iy | 299.8 cm⁴ |
| Moment of resistance Wx = Wy | 66.7 cm³ |
| Torsional moment of inertia It | 118.6 cm⁴ |
| Moment of torsion resistance Wt | 26 cm³ |
| Profile surface A | 38.4 cm² |
| Mass m | 10.4 kg/m |
| Material | Aluminum, anodized |
| Color | Natural |
| Packaging unit | 1 piece |
| Recommended accessories | Cover cap 90x90 black, Cover cap 90x90 signal gray, Cover cap with hole 90x90 black, Cover cap with hole 90x90 signal gray |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842992961-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
