The HD 2/H lift rotate unit in size 3 (BG 3) raises WT 2/H and WT 2/F-H workpiece pallets approximately 50 mm above the conveyor level and rotates them by 90° or 180°. It handles total pallet weights up to 240 kg, is ESD-compatible, and covers pallet widths of 800, 1040 and 1200 mm. The unit is supplied fully assembled for straightforward integration into Bosch Rexroth transfer systems.
Hub-Dreheinheit HD 2/H Baugröße 3, bis 240 kg, ESD-geeignet - Bosch Rexroth 3842998762
BOSCH REXROTH Original product
Net price (excl. VAT)
€10,815.67 €9,088.80
Item BRR-3842998762
Manufacturer no. 3842998762
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842998762
Country of originGermany
Customs tariff number84313900
ConditionNew
Artikel
BRR-3842998762
The HD 2/H lift rotate unit in size 3 (BG 3) is a fully assembled transfer-system component that lifts workpiece pallets 50 mm above the conveyor medium and rotates them to a precise 90° or 180° position - enabling controlled part orientation within the assembly cycle.
- Maximum total pallet weight of 240 kg covers heavy sub-assemblies handled by BG 3
- ESD-compatible for safe use in electrostatic-sensitive production environments
- Rotation by 90° (square pallets only) or 180°; for BG 3 with 90° rotation, reverse rotation takes place above the belt
- For use with workpiece pallets WT 2/H and WT 2/F-H in widths of 800, 1040 and 1200 mm
- Scope of delivery includes: 2x damper for end positions of the rotary movement, fastening material for conveyor assembly, and pneumatic elements (fittings, throttle non-return valves) for the top/center/bottom lift positions
- Fully assembled on delivery - minimal installation effort on-site
Technical data
| Parameter | Value |
|---|---|
| Size | BG 3 |

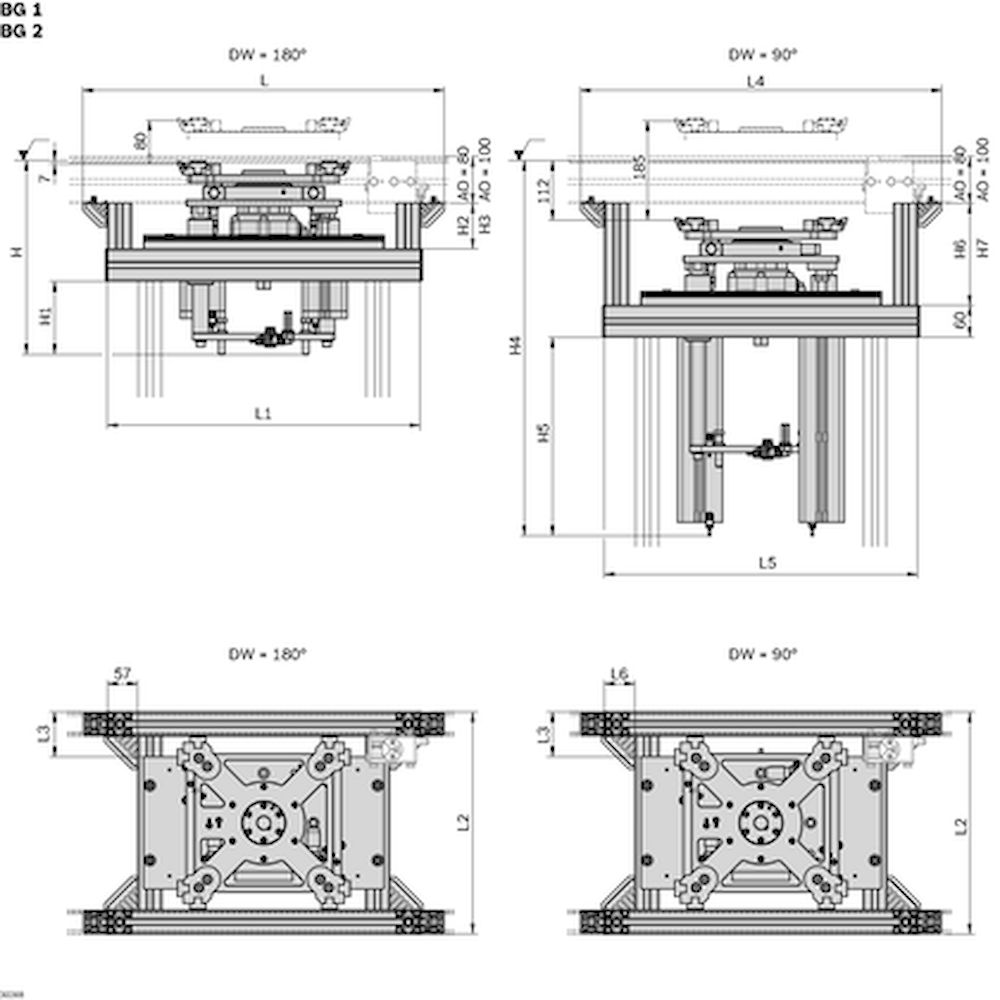

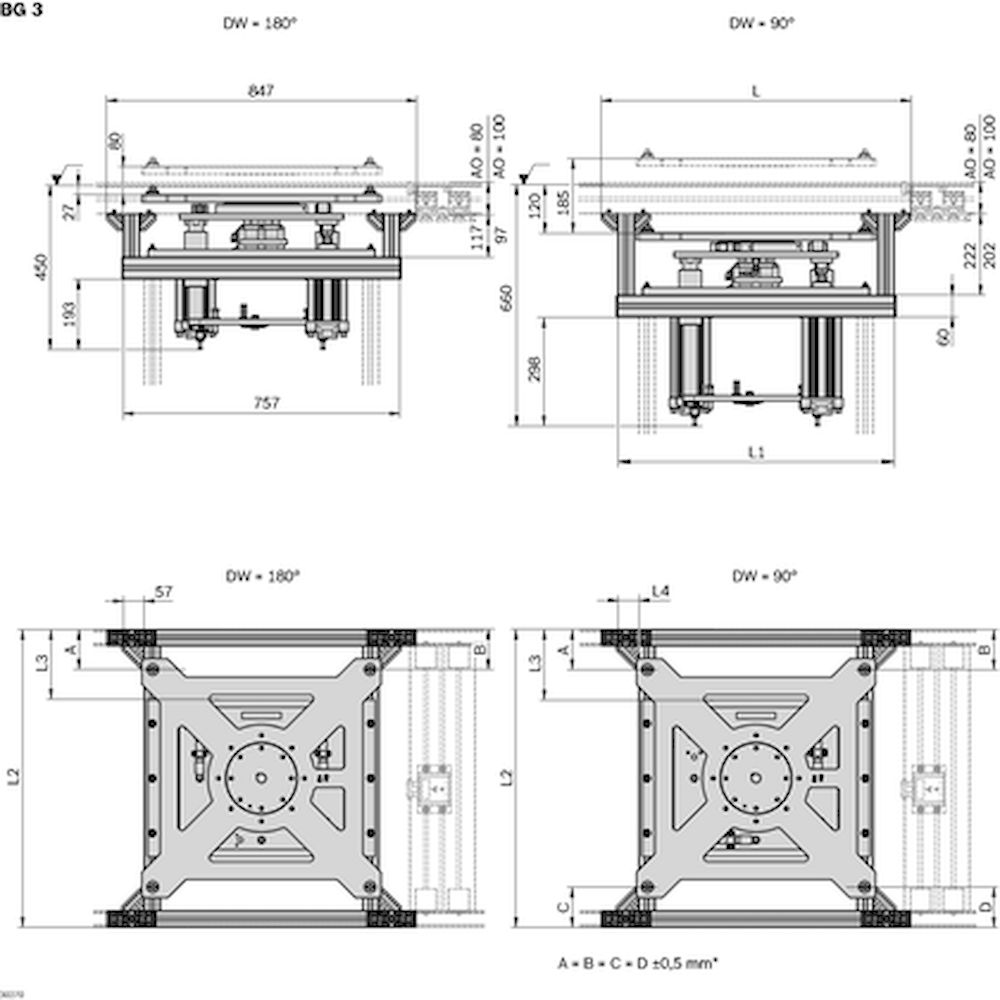

| Lift of WT above conveyor medium [h0] | 50 mm |
| Workpiece pallet total weight [mG] | max. 240 kg |
| Workpiece pallet width [bWT] | 800 / 1040 / 1200 mm |
| Length in direction of transport [lT] | 800 / 1040 / 1200 mm |
| Rotation angle | 90° or 180° |
| Reverse rotation at 90° (BG 3) | above the belt |
| Compatible workpiece pallets | WT 2/H, WT 2/F-H |
| ESD-compatible | yes |
| Delivery condition | fully assembled |
| Weight | 5.0 kg |
| ESD-Ausführung | ESD (antistatic) |
|---|---|
| Hersteller-Nr | 3842998762 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 5.000000 |
| Zolltarifnummer | 84313900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
