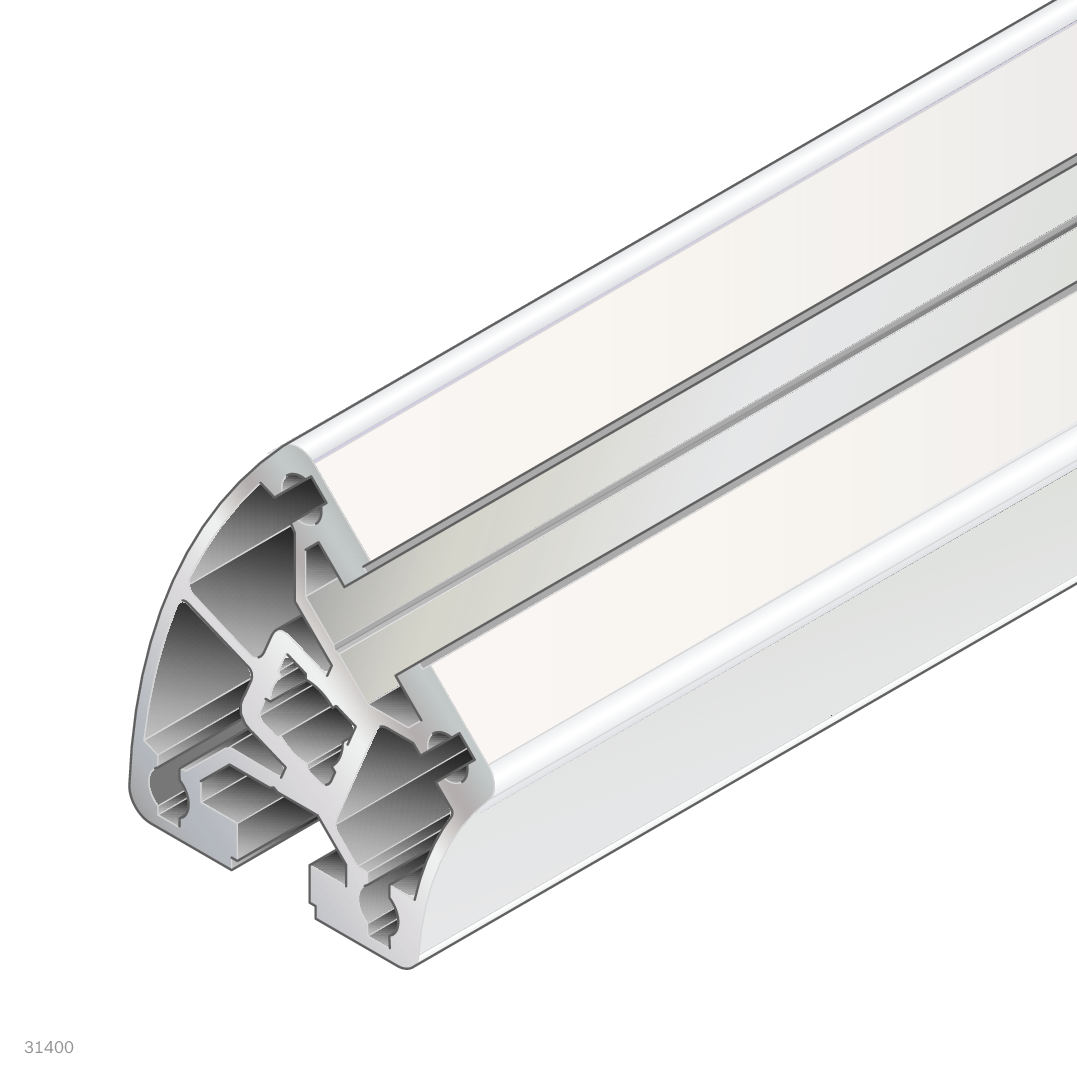

The product may differ from the illustration
Strut profile with a 40x45° cross-section and 6070 mm length in anodized aluminum, designed for angular bracing and diagonal support structures within the Bosch Rexroth modular assembly system. The 45-degree profile type with 40 mm modular dimension and two open slots integrates directly with standard connectors and accessories of the Rexroth 40 series. Supplied as a single rod in standard length.
Strebenprofil 40x45° 6070 mm, Aluminium eloxiert - Bosch Rexroth 3842529374
BOSCH REXROTH Original product
Net price (excl. VAT)
€199.54 €167.68
excl. Shipping Cost
Item BRR-3842529374
Manufacturer no. 3842529374
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529374
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842529374
The strut profile 3842529374 with its 40x45° cross-section extends the Bosch Rexroth aluminum profile system with diagonal connecting elements. The 45-degree profile type enables angled braces, deflectors, and frame structures that combine with straight profiles of the same series. Anodized aluminum in natural color provides corrosion resistance and dimensional stability, while the 40 mm modular dimension ensures full compatibility with the complete range of Rexroth connectors, brackets, and accessories.
- 40x45° cross-section with two open slots - suited for diagonal struts and angular support structures
- Anodized aluminum - corrosion-resistant, lightweight, and dimensionally stable
- 40 mm modular dimension, profile slot 10 - fully compatible with the Rexroth 40 modular system
- Supplied as a single rod, 6070 mm, ready to install without further cutting
- Recommended accessories: cover cap 40x45° in signal gray or black
Technical data
| Property | Value |
|---|---|
| Cross-section | 40x45° |
| Profile type | 45 degrees |
| Dimensions | 40x40 mm |
| Length [L] | 6070 mm |
| Modular dimension | 40 mm |
| Profile slot | 10 |
| Open slots | 2 |
| Color | Natural |
| Material | Aluminum, anodized |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Mass [m] | 1.8 kg |
| Weight | 11.353 kg |
| Profile surface [A] | 6.8 cm² |
| Area moment of inertia in x-direction [lx] | 9.9 cm⁴ |
| Area moment of inertia in y-direction [ly] | 16.6 cm⁴ |
| Moment of resistance in x-direction [Wx] | 5 cm³ |
| Moment of resistance in y-direction [Wy] | 8.3 cm³ |
| Torsional moment of inertia [It] | 4.2 cm⁴ |
| Moment of torsion resistance [Wt] | 3.7 cm³ |
| Recommended accessories | Cover cap 40x45°, signal gray; Cover cap 40x45°, black |
| Hersteller-Nr | 3842529374 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 11.353000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
