Single-slot aluminum strut profile with a 20x20 mm cross-section (type 1N) supplied as a standard 3000 mm bar. The anodized finish and 6 mm profile slot make it a direct fit for the Bosch Rexroth 20 mm modular system, suitable for lightweight frames, guards and fixtures in assembly and machine-building applications.
Strut Profile 20x20 1N, 3000 mm, Anodized Aluminum - Bosch Rexroth 3842536476
BOSCH REXROTH
Original product
Net price (excl. VAT)
€29.06
Item
BRR-3842536476
Manufacturer no.
3842536476
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842536476
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842536476

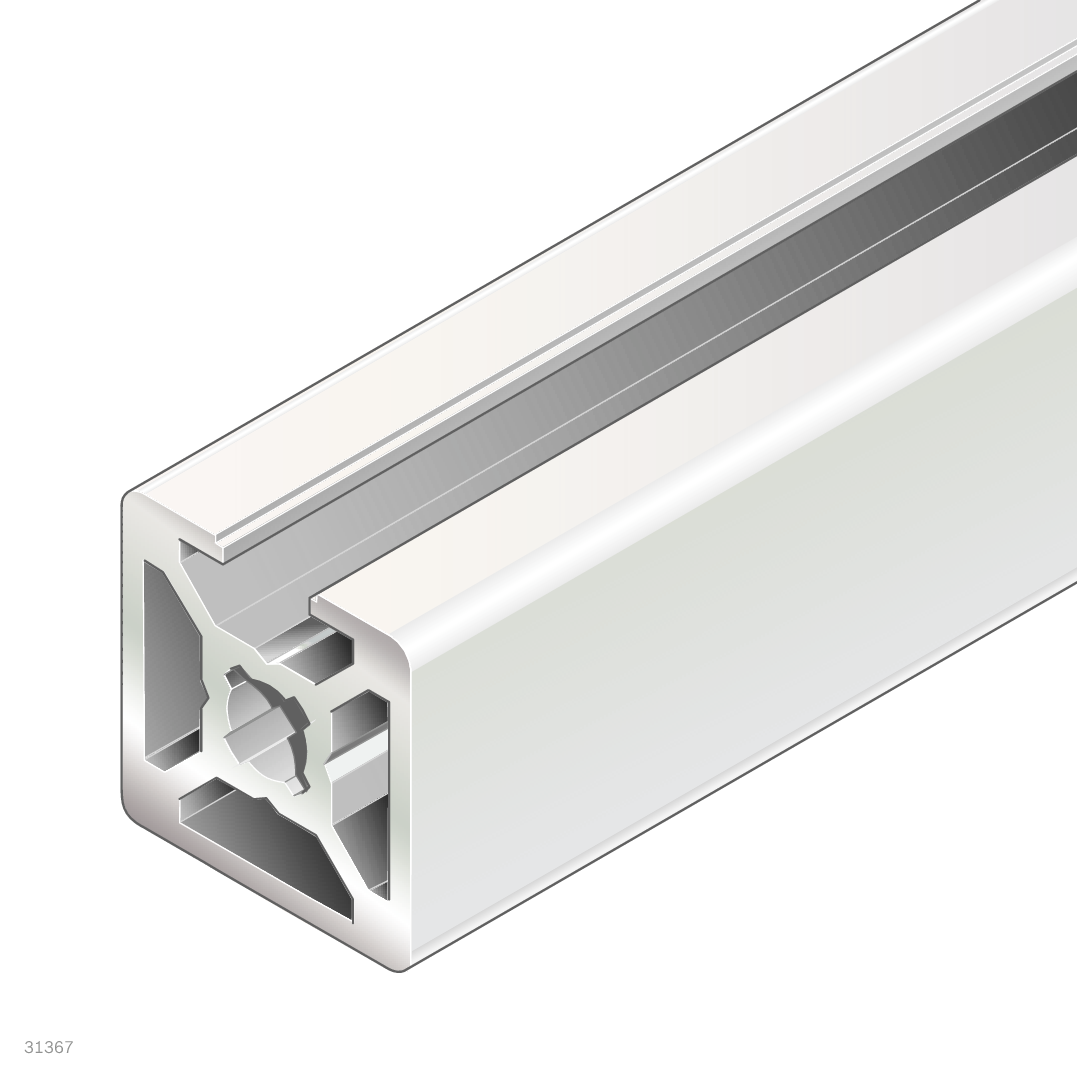

The Strut Profile 20x20 1N is an anodized aluminum profile for the Bosch Rexroth assembly system based on a 20 mm modular dimension. Its compact 20x20 mm cross-section with one open slot (type 1N) and a 6 mm profile slot is well suited to frames, uprights and cross-members in protective enclosures, jigs and light machine housings.
- Low linear mass of 0.5 kg/m and a profile surface of 1.9 cm² - easy to handle and cut to length on site
- Anodized aluminum surface provides lasting corrosion resistance without additional treatment
- Fully compatible with all 20 mm modular-system connectors, brackets and attachments from the Bosch Rexroth aluminum profile range
- Supplied as a single rod in standard 3000 mm length, packaging unit 1 piece
Technical data
| Parameter | Value |
|---|---|
| Cross-section | 20x20 mm |
| Profile type | 1N |
| Open slots | 1 |
| Profile slot | 6 mm |
| Modular dimension | 20 mm |
| Length [L] | 3000 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 1.9 cm² |
| Mass [m] | 0.5 kg/m |
| Weight (bar) | 1.61 kg |
| Area moment of inertia [lx / ly] | 0.8 cm⁴ |
| Moment of resistance [Wx / Wy] | 0.8 cm³ |
| Torsional moment of inertia [It] | 0.6 cm⁴ |
| Moment of torsion resistance [Wt] | 0.67 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 piece |
| Recommended accessories | Cover cap 20x20 signal gray, Cover cap 20x20 black |
| Hersteller-Nr | 3842536476 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 1.610000 |
| Lenght | 3000 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
