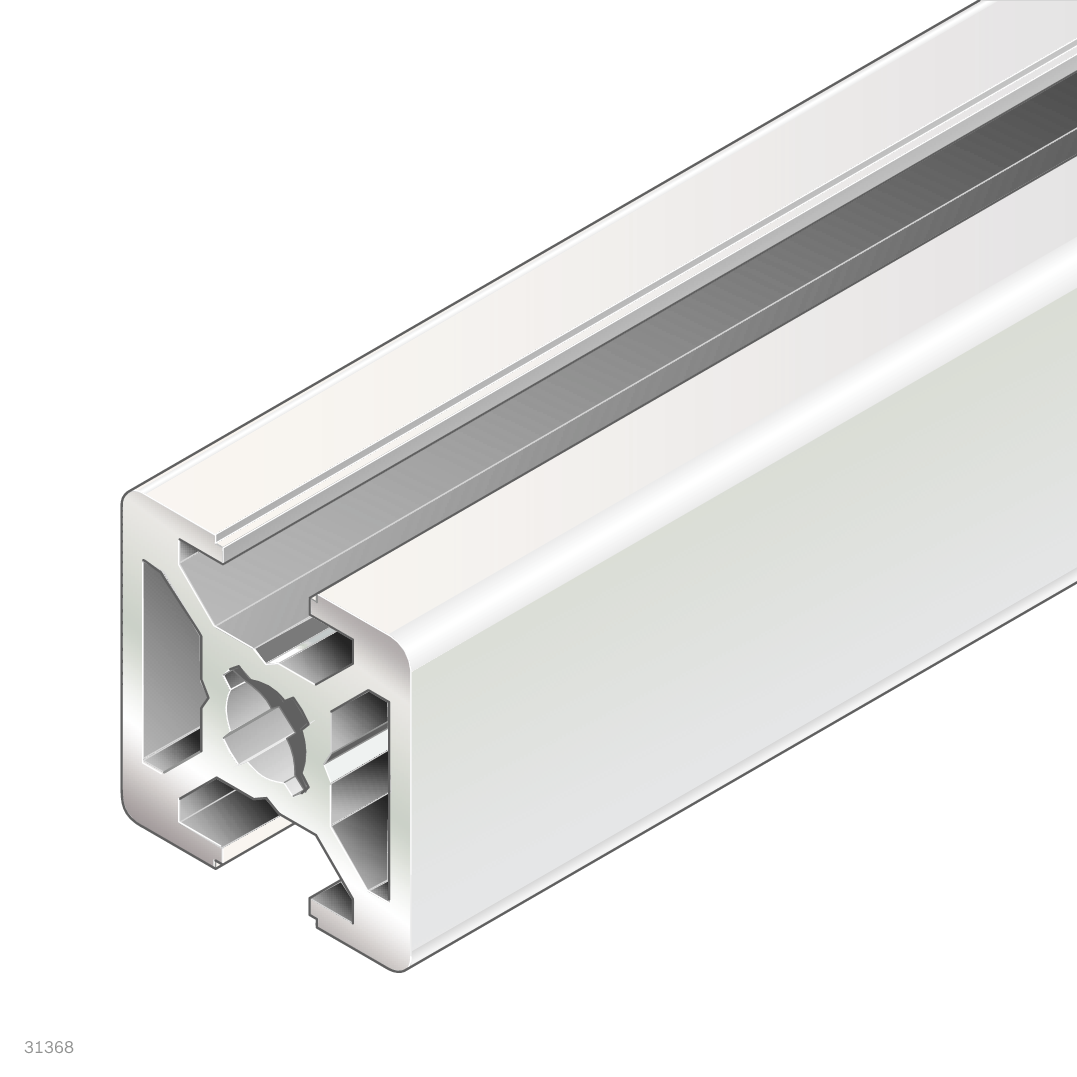

The product may differ from the illustration
Compact aluminum strut profile, cross-section 20x20 mm, type 2N, with two open slots and slot size 6 for the Bosch Rexroth 20 mm modular system. Supplied as a single rod in standard length 3000 mm, natural anodized finish. Suited for lightweight frames, supports, and fixtures in assembly and automation applications.
Strebenprofil 20x20 2N, 3000 mm, Aluminium eloxiert - Bosch Rexroth 3842536479
BOSCH REXROTH Original product
Net price (excl. VAT)
€29.25 €24.58
excl. Shipping Cost
Item BRR-3842536479
Manufacturer no. 3842536479
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842536479
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842536479
The strut profile 20x20 2N is a lightweight extruded aluminum profile for the Bosch Rexroth 20 mm modular system. Two open slots allow direct connection of brackets and connectors without dismantling the assembly, making it a practical choice for struts, cross-members, and reinforcement elements in machine frames and workstation structures.
- Two open slots (type 2N) - connect fittings and angle brackets without disassembly
- Slot size 6 is compatible with the full Bosch Rexroth accessory range for the 20 mm grid
- Anodized aluminum finish - corrosion-resistant, lightweight, and dimensionally stable
- Standard length 3000 mm delivered as a single rod; can be cut to length
Technical data
| Property | Value |
|---|---|
| Cross-section | 20x20 mm |
| Profile type | 2N |
| Modular dimension | 20 mm |
| Profile slot | 6 |
| Open slots | 2 |
| Length [L] | 3000 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 1.8 cm² |
| Mass [m] | 0.5 kg/m |
| Weight (rod) | 1.52 kg |
| Area moment of inertia [lx] | 0.7 cm⁴ |
| Area moment of inertia [ly] | 0.8 cm⁴ |
| Moment of resistance [Wx] | 0.7 cm³ |
| Moment of resistance [Wy] | 0.8 cm³ |
| Torsional moment of inertia [It] | 0.31 cm⁴ |
| Moment of torsion resistance [Wt] | 0.52 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 20x20 signal gray, Cover cap 20x20 black |
| Hersteller-Nr | 3842536479 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 1.520000 |
| Lenght | 3000 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
