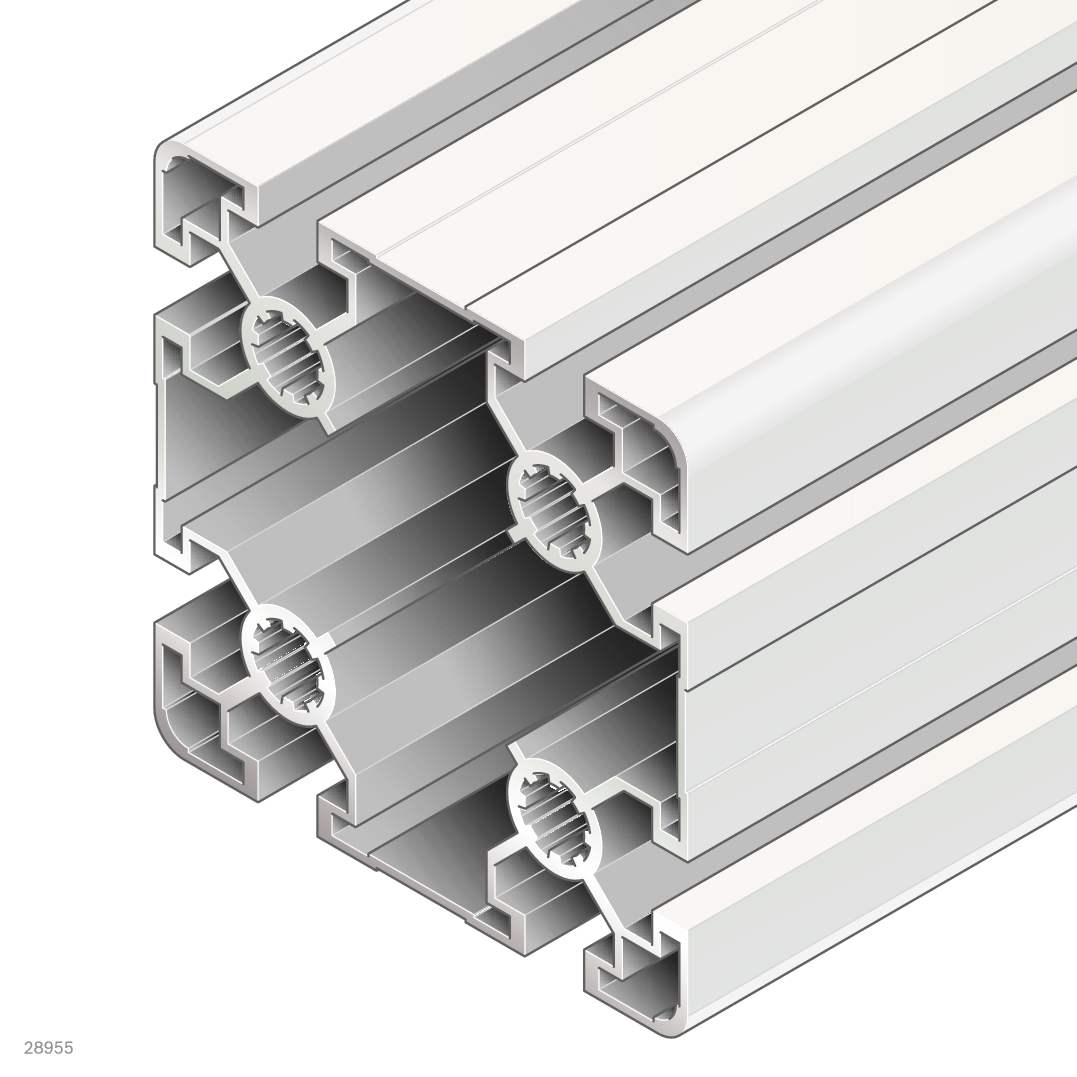

The product may differ from the illustration
Structural strut profile with 90x90 SL cross-section and 6070 mm length in anodized aluminum. Eight open slots and a 45 mm modular dimension provide direct compatibility with Bosch Rexroth profile system connectors and accessories. Supplied as a single rod in standard length.
Strebenprofil 90x90 SL, 6070 mm, Aluminium eloxiert - Bosch Rexroth 3842537101
BOSCH REXROTH Original product
Net price (excl. VAT)
€386.06 €324.42
excl. Shipping Cost
Item BRR-3842537101
Manufacturer no. 3842537101
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842537101
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842537101
The 90x90 SL strut profile is designed for load-bearing frame structures, machine bases, and protective enclosures in industrial assembly. At 6070 mm length with eight open slots and a 45 mm modular dimension, it integrates directly with the Bosch Rexroth profile system without additional machining.
- Symmetric 90x90 SL cross-section with equal area moments of inertia in both axes (130.2 cm⁴ each) for consistent, predictable load behavior
- Anodized aluminum construction for lasting corrosion resistance and a clean finish
- 8 open slots (10 mm slot width) allow connectors, sensors, and attachments to be fitted at any position along the full length
- Profile surface area 14.1 cm² and linear mass 3.8 kg/m give an efficient stiffness-to-weight ratio
- Delivered as a single rod, packaging unit 1 piece
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90 SL |
| Length [L] | 6070 mm |
| Dimensions | 90x90 mm |
| Modular dimension | 45 mm |
| Profile slot width | 10 mm |
| Open slots | 8 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 14.1 cm² |
| Mass [m] | 3.8 kg/m |
| Weight (rod) | 23.08 kg |
| Area moment of inertia [lx] | 130.2 cm⁴ |
| Area moment of inertia [ly] | 130.2 cm⁴ |
| Moment of resistance [Wx] | 28.9 cm³ |
| Moment of resistance [Wy] | 28.9 cm³ |
| Torsional moment of inertia [It] | 42.5 cm⁴ |
| Moment of torsion resistance [Wt] | 13.9 cm³ |
| Recommended accessories | Cover cap 90x90L, signal gray; Cover cap 90x90L, black |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Hersteller-Nr | 3842537101 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 23.080000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
