Asymmetric aluminum strut profile with a 45x90L cross-section (type 3NVS), three open slots, and a length of 6070 mm. The anodized finish provides lasting corrosion resistance for use in load-bearing frames and support structures on a 45 mm modular grid. Supplied as a single rod in standard length, natural color.

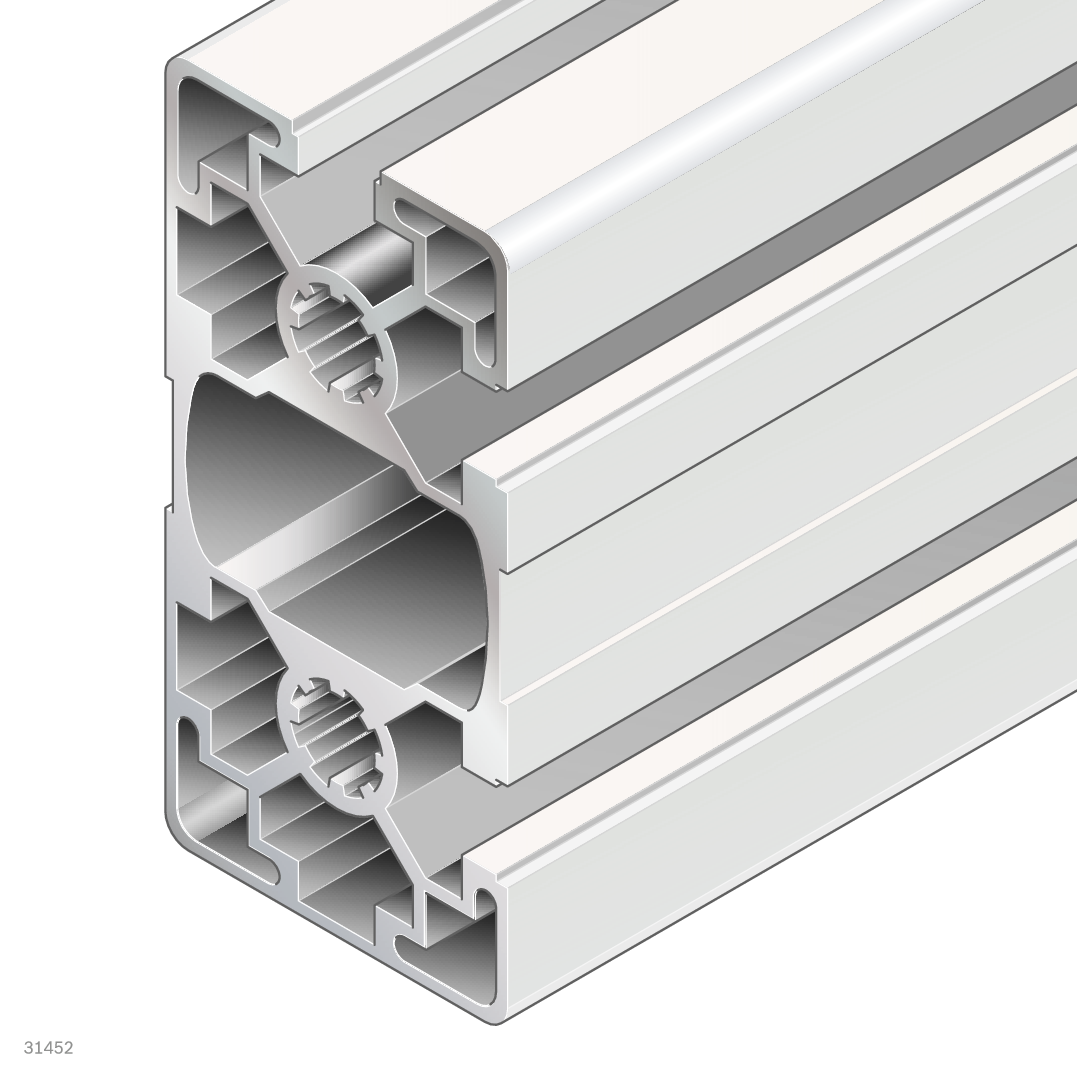

Strut Profile 45x90L 3NVS, 6070 mm, Anodized Aluminum - Bosch Rexroth 3842538302
BOSCH REXROTH
Original product
Net price (excl. VAT)
€337.96
Item
BRR-3842538302
Manufacturer no.
3842538302
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842538302
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842538302
The Bosch Rexroth 45x90L 3NVS strut profile is an asymmetric anodized aluminum section with three open slots, designed for rigid load-bearing frames and support structures within the 45 mm modular system. An area moment of inertia of 87.2 cm⁴ in the x-direction and a moment of resistance of 38.8 cm³ make it well suited to mechanically demanding applications.
- Three open slots (slot size 10) for flexible connections on three faces
- High bending stiffness from the asymmetric 45x90 cross-section
- Anodized aluminum surface - corrosion resistant and wear hard
- Compatible with the Bosch Rexroth 45 mm modular system
- Supplied as a single rod in standard length, ready to install
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x90L 3NVS |
| Profile type | 3NVS |
| Dimensions | 45x90 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 3 |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 11.8 cm² |
| Area moment of inertia in x-direction [lx] | 87.2 cm⁴ |
| Area moment of inertia in y-direction [ly] | 25.2 cm⁴ |
| Moment of resistance in x-direction [Wx] | 38.8 cm³ |
| Moment of resistance in y-direction [Wy] | 5.6 cm³ |
| Torsional moment of inertia [It] | 25.7 cm⁴ |
| Moment of torsion resistance [Wt] | 6.6 cm³ |
| Mass [m] | 3.2 kg/m |
| Weight (rod) | 19.689 kg |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x90 signal gray, Cover cap 45x90 black, Cover cap with hole 45x90 signal gray, Cover cap with hole 45x90 black |
| Hersteller-Nr | 3842538302 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 19.689000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
