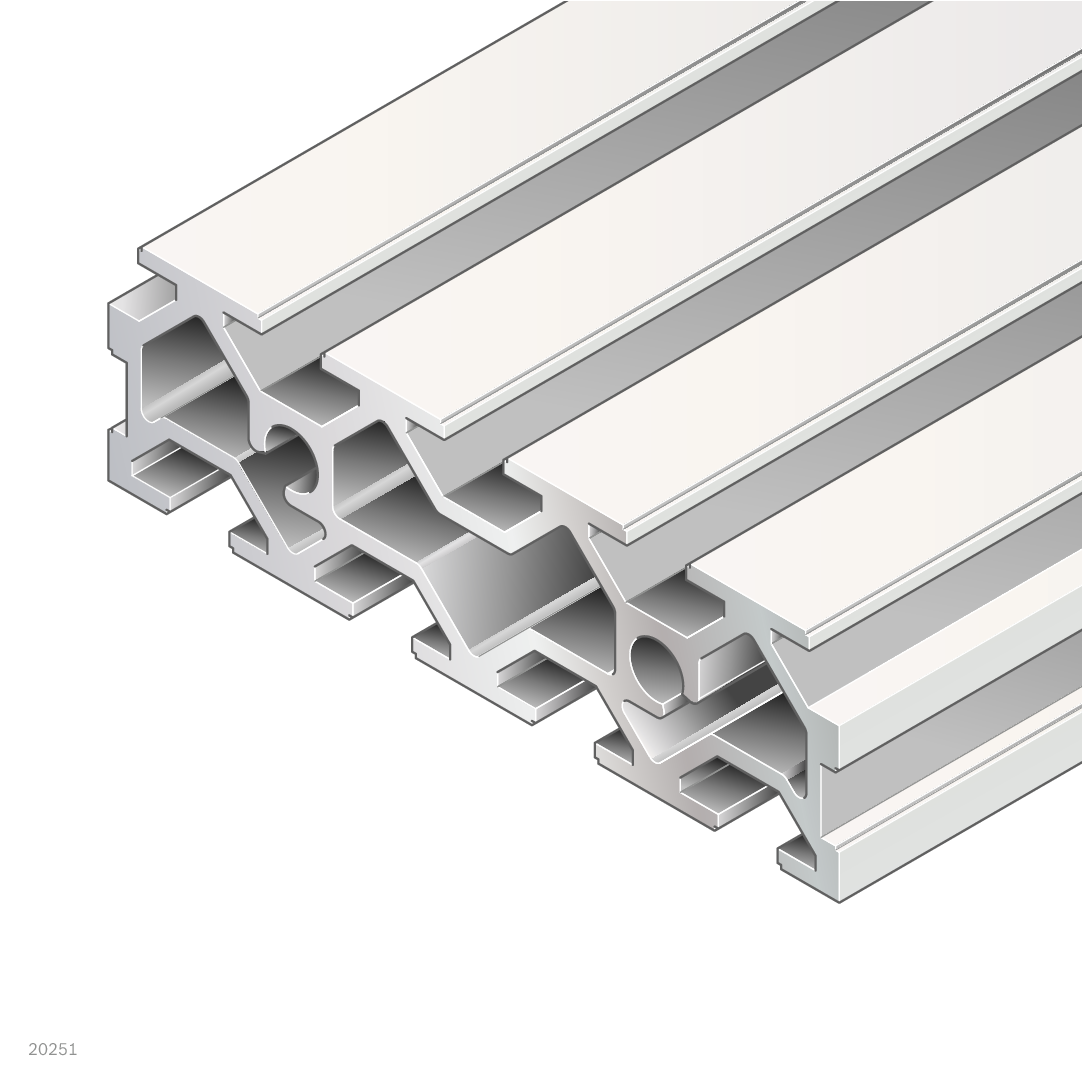

The product may differ from the illustration
Grooved plate 30x100 mm with 7 open slots and a lateral 8 mm slot acting as an outer stop. 25 mm slot spacing supports modular experimental and fixture constructions of virtually any size. Supplied as a single rod in standard length 5600 mm.
Nutenplatte 30x100 L/R, 7 offene Nuten, L=5600 mm - Bosch Rexroth 3842542695
BOSCH REXROTH Original product
Net price (excl. VAT)
€230.27 €193.50
excl. Shipping Cost
Item BRR-3842542695
Manufacturer no. 3842542695
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842542695
Country of originGermany
Customs tariff number76042990
ConditionNew
Artikel
BRR-3842542695
The 30x100 L/R grooved plate is a modular profile with 7 open slots and one lateral 8 mm profile slot that serves as an outer stop. The 25 mm slot spacing allows systematic assembly of experimental constructions and jigs in any required dimensions. Sliding blocks connect multiple grooved plates into wider panels or complex structures - Bosch Rexroth recommends 3 sliding blocks per metre of profile length.
- 7 open slots plus 1 lateral 8 mm profile slot for versatile connection options
- 25 mm slot spacing - precise, repeatable positioning of attachments
- Compatible with 8 mm sliding blocks of the Bosch Rexroth assembly technology system
- 30x100 M grooved plates combinable to achieve any panel width
- Supplied as a single rod, Standard profile type
Technical data
| Specification | Value |
|---|---|
| Cross-section | 30x100 mm |
| Length (L) | 5600 mm |
| Profile type | Standard |
| Open slots | 7 |
| Profile slot | 8 mm |
| Slot spacing | 25 mm |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Weight | 14.88 kg |
| Hersteller-Nr | 3842542695 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 14.880000 |
| Lenght | 5600 mm |
| Zolltarifnummer | 76042990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
