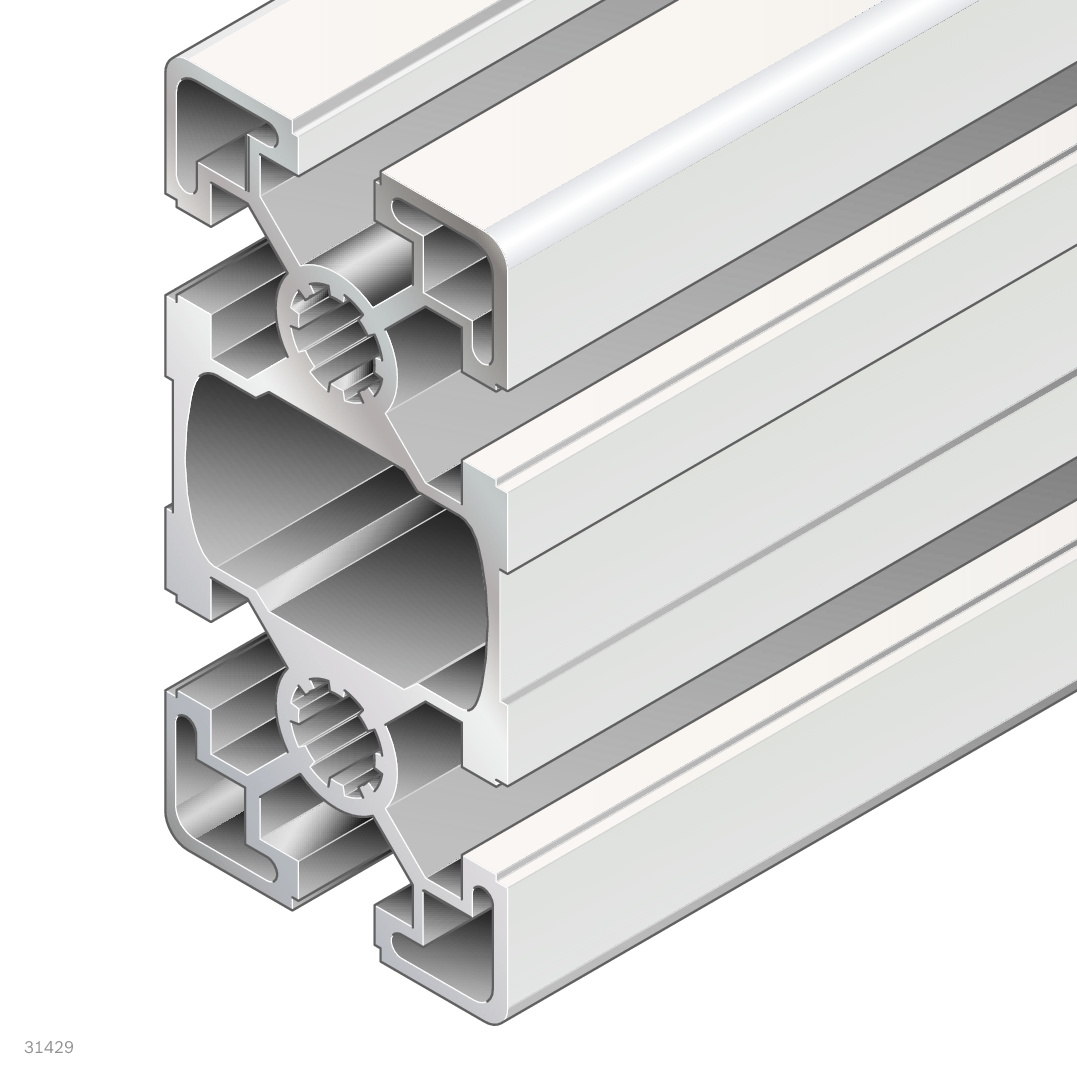

Strut profile 45x90L in anodized aluminum for the Bosch Rexroth Assembly System 45. At 6070 mm standard length with 6 open slots and ESD compatibility, it suits frame structures and workstation systems in electrostatically sensitive environments. Supplied as a single rod; recommended accessories are cover caps 45x90.
Strut Profile 45x90L, 6070 mm, Anodized Aluminum, ESD-Compatible - Bosch Rexroth 3842553619
BOSCH REXROTH
Original product
Net price (excl. VAT)
€264.61
Item
BRR-3842553619
Manufacturer no.
3842553619
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842553619
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842553619
The 45x90L strut profile is a structural element for the Bosch Rexroth Assembly System 45, used in frame construction, workstation systems, and protective enclosures. The 6070 mm standard length allows flexible cutting to size; anodized aluminum provides lasting corrosion resistance at low weight. ESD compatibility makes it suitable for use in electrostatically protected production and laboratory areas.
- 6 open slots (profile slot 10) for direct connection without pre-drilling
- 45 mm modular dimension - fully compatible with Bosch Rexroth System 45
- Anodized aluminum in natural color - corrosion-resistant and lightweight
- ESD-compatible for use in electrostatic discharge protected zones
- High bending stiffness: area moment of inertia lx = 82 cm⁴, ly = 23.6 cm⁴
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x90L |
| Dimensions | 45x90 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 6 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 11.3 cm² |
| Mass [m] | 3 kg/m |
| Weight (rod) | 18.5 kg |
| Area moment of inertia lx | 82 cm⁴ |
| Area moment of inertia ly | 23.6 cm⁴ |
| Moment of resistance Wx | 18.2 cm³ |
| Moment of resistance Wy | 10 cm³ |
| Torsional moment of inertia [It] | 15.1 cm⁴ |
| Moment of torsion resistance [Wt] | 4.4 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x90 signal gray, Cover cap 45x90 black, Cover cap with hole 45x90 signal gray, Cover cap with hole 45x90 black |
| Hersteller-Nr | 3842553619 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 18.500000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
