Strut profile 45x90 mm with 45 mm modular dimension, made from anodized aluminum, length 6070 mm, ESD-rated. Six open slots and profile slot size 10 allow flexible connections throughout the Bosch Rexroth aluminum profile system. Supplied as a single rod in standard length; recommended accessories: cover caps 45x90.

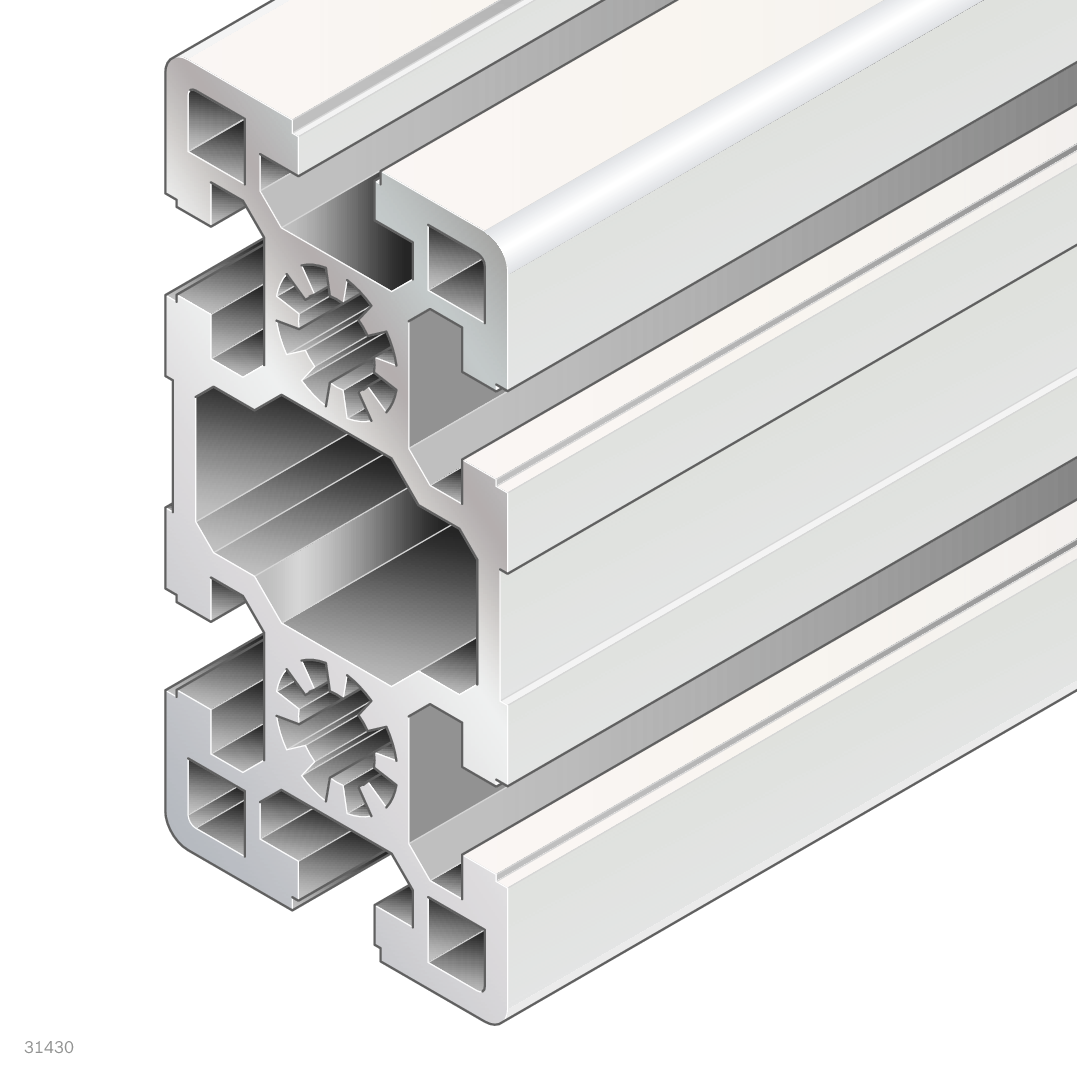

Strut Profile 45x90, Length 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842553622
BOSCH REXROTH
Original product
Net price (excl. VAT)
€375.46
Item
BRR-3842553622
Manufacturer no.
3842553622
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842553622
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842553622
The Bosch Rexroth strut profile 45x90 is a structural aluminum profile for assembly systems, workstations, and transfer lines. The 45 mm modular dimension and six open slots ensure direct compatibility with the full Bosch Rexroth aluminum profile range without special tooling. ESD suitability makes it a reliable choice for electrostatic discharge-protected environments.
- Six open slots for connections in x, y, and z directions
- ESD-rated for use in EPA workstation and production systems
- High bending stiffness: area moment of inertia lx 124.6 cm⁴, ly 32.8 cm⁴
- Anodized aluminum: corrosion-resistant, lightweight, durable
- Compatible with cover caps 45x90 in signal gray and black
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x90 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 6 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | yes |
| Profile surface [A] | 15.4 cm² |
| Mass [m] | 4.2 kg/m |
| Weight (rod) | 25.9 kg |
| Area moment of inertia [lx] | 124.6 cm⁴ |
| Area moment of inertia [ly] | 32.8 cm⁴ |
| Moment of resistance [Wx] | 27.7 cm³ |
| Moment of resistance [Wy] | 14.6 cm³ |
| Torsional moment of inertia [It] | 15.4 cm⁴ |
| Moment of torsion resistance [Wt] | 6.61 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x90 signal gray, Cover cap 45x90 black, Cover cap with hole 45x90 signal gray, Cover cap with hole 45x90 black |
| Hersteller-Nr | 3842553622 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 25.900000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
