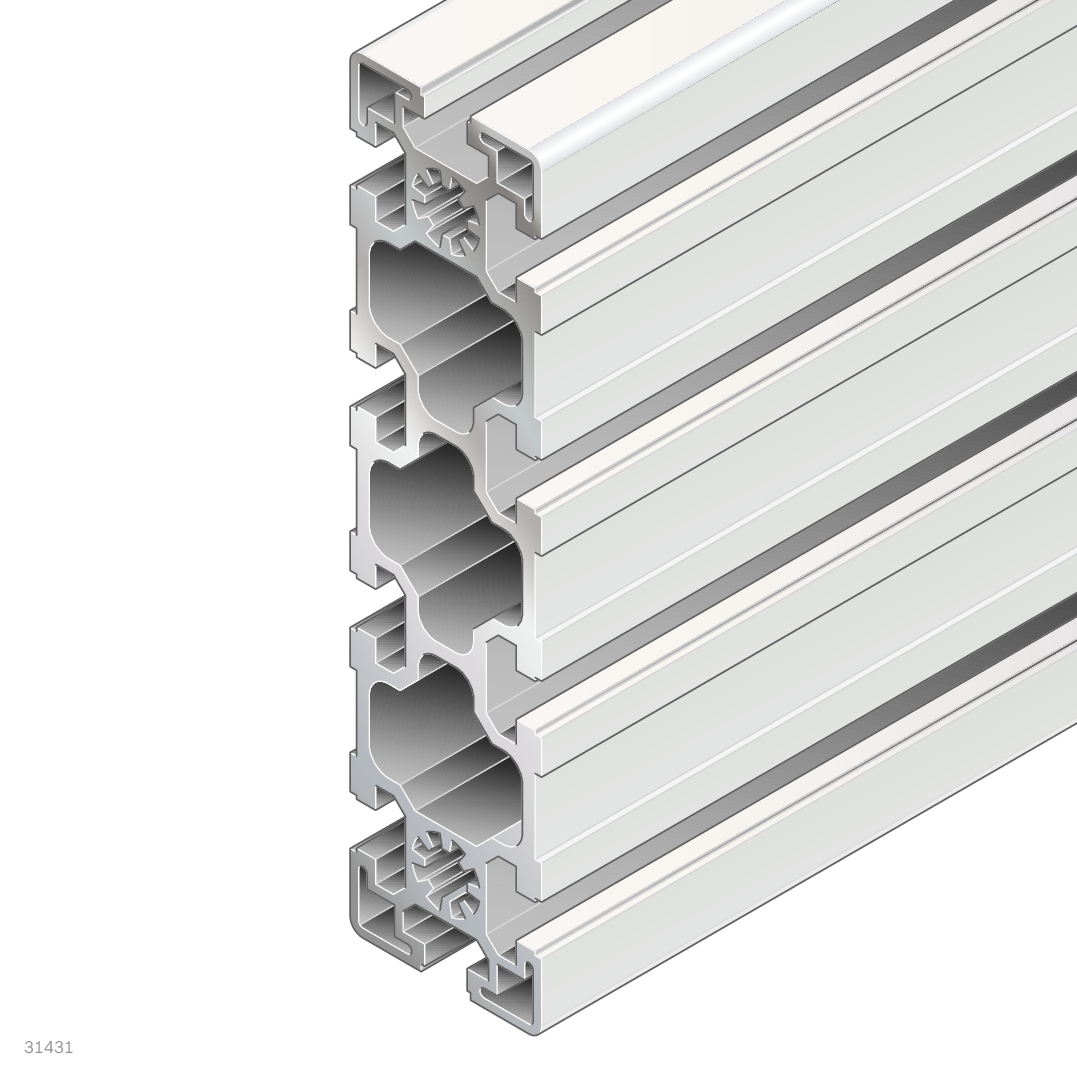

Strut Profile 45x180, L=6070 mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842553623
Strut profile with a 45x180 mm cross-section and a length of 6070 mm, made from anodized aluminum in the 45 mm modular grid. Features 10 open slots and ESD suitability for use in electrostatic-protected assembly areas. Supplied as a single rod in standard length; recommended accessories are cover caps 45x180 in signal gray or black.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth strut profile 45x180 adds a high-rigidity structural member to the 45 mm modular aluminum profile system, suited to demanding machine frames, conveyor structures, and industrial assembly lines. ESD suitability makes it compatible with electrostatically protected workspaces.
- High bending stiffness in the x-direction: area moment of inertia Ix = 766.7 cm⁴, moment of resistance Wx = 85.2 cm³ - handles long spans under significant transverse loads
- 10 open slots provide full connection flexibility around the profile perimeter
- Anodized aluminum construction: corrosion-resistant, hard surface, ESD-certified
- System-compatible within the 45 mm modular grid across the full Bosch Rexroth profile range
- Delivered as a single rod in standard length, packaging unit 1 piece
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x180 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 10 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | yes |
| Profile surface [A] | 25.5 cm² |
| Area moment of inertia in x-direction [Ix] | 766.7 cm⁴ |
| Area moment of inertia in y-direction [Iy] | 57.3 cm⁴ |
| Moment of resistance in x-direction [Wx] | 85.2 cm³ |
| Moment of resistance in y-direction [Wy] | 25.5 cm³ |
| Torsional moment of inertia [It] | 44.4 cm⁴ |
| Moment of torsion resistance [Wt] | 17 cm³ |
| Mass [m] | 6.9 kg |
| Weight (delivery unit) | 42.6 kg |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 piece |
| Recommended accessories | Cover cap 45x180 signal gray, Cover cap 45x180 black |
| Weight | 42.6 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842553623 |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Lenght | 6070 mm |
