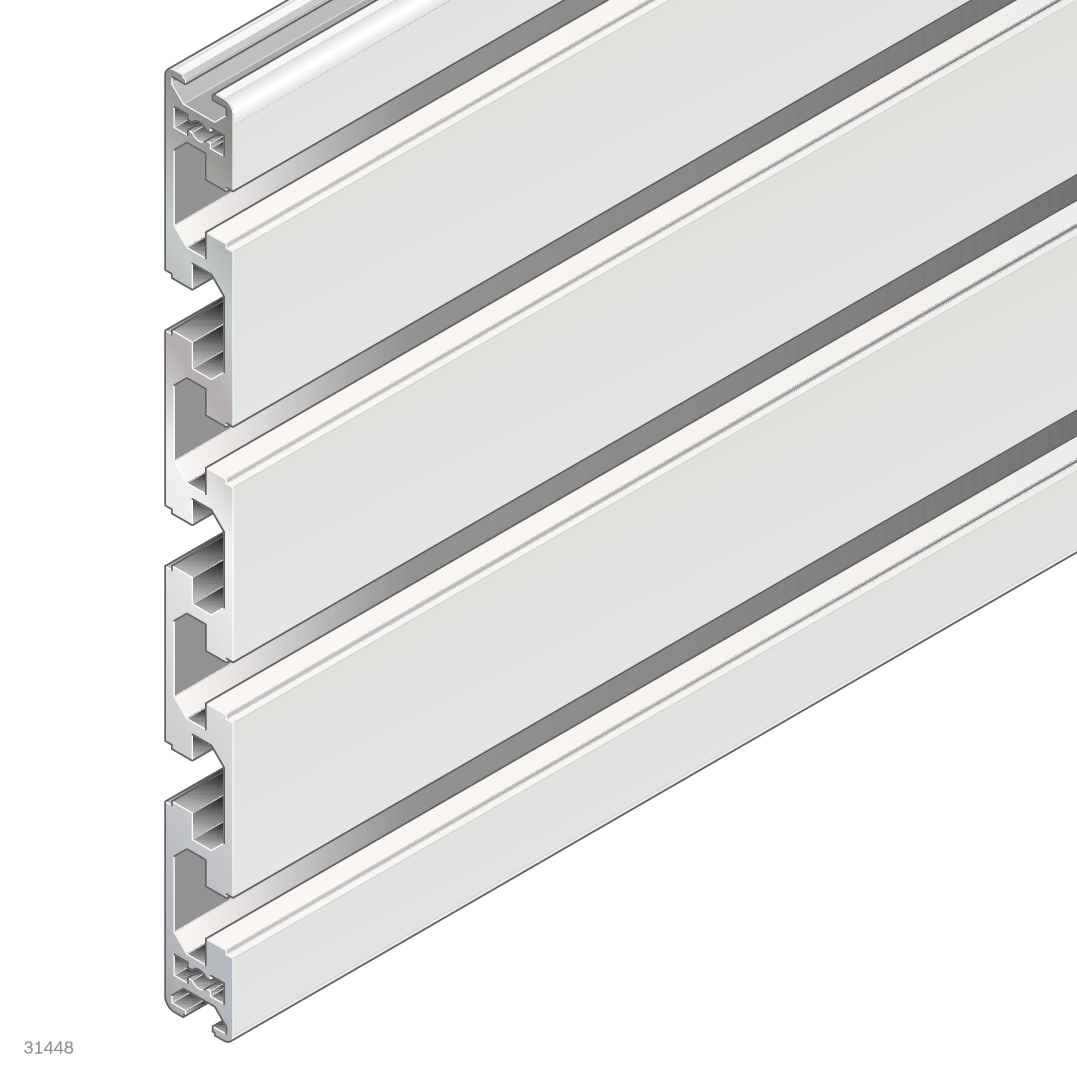

Strut profile with a 15x180 mm cross-section and a length of 6070 mm, made from anodized aluminum. The profile features 9 open slots (profile slot 10, modular dimension 45 mm) for flexible connections in Rexroth aluminum structure systems. Supplied as a single rod in standard length.
Strut Profile 15x180, Length 6070 mm, Anodized Aluminum, 9 Open Slots - Bosch Rexroth 3842557249
BOSCH REXROTH
Original product
Net price (excl. VAT)
€304.46
Item
BRR-3842557249
Manufacturer no.
3842557249
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842557249
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842557249
The Bosch Rexroth strut profile 15x180 is an extruded anodized aluminum profile for load-bearing frame structures, machine bases, and assembly systems. An area moment of inertia of 321.7 cm⁴ in the x-direction and a moment of resistance of 35.7 cm³ deliver high bending stiffness at a low mass of 3.1 kg per running meter.
- 9 open slots allow flexible connecting and mounting options without additional machining
- Modular dimension 45 mm - fully compatible with the Bosch Rexroth aluminum structure system
- Anodized surface provides corrosion resistance and mechanical protection
- Supplied as a single rod, standard length 6070 mm, packaging unit 1 piece
- Recommended accessories: cover cap 15x180 in signal gray or black
Technical data
| Parameter | Value |
|---|---|
| Cross-section | 15x180 mm |
| Length [L] | 6070 mm |
| Mass [m] | 3.1 kg/m |
| Weight (rod) | 19.4 kg |
| Profile surface [A] | 11.6 cm² |
| Area moment of inertia x [lx] | 321.7 cm⁴ |
| Area moment of inertia y [ly] | 3.2 cm⁴ |
| Moment of resistance x [Wx] | 35.7 cm³ |
| Moment of resistance y [Wy] | 4.2 cm³ |
| Profile slot | 10 |
| Open slots | 9 |
| Modular dimension | 45 mm |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 piece |
| Hersteller-Nr | 3842557249 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 19.400000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
