Strut profile with 45x30° cross-section and 6070 mm length in anodized aluminum for the Bosch Rexroth assembly technology system. Two open slots (profile slot 10, modular dimension 45 mm) allow direct integration with standard 45-series connectors and fasteners. Supplied as a single rod in standard length, natural color.

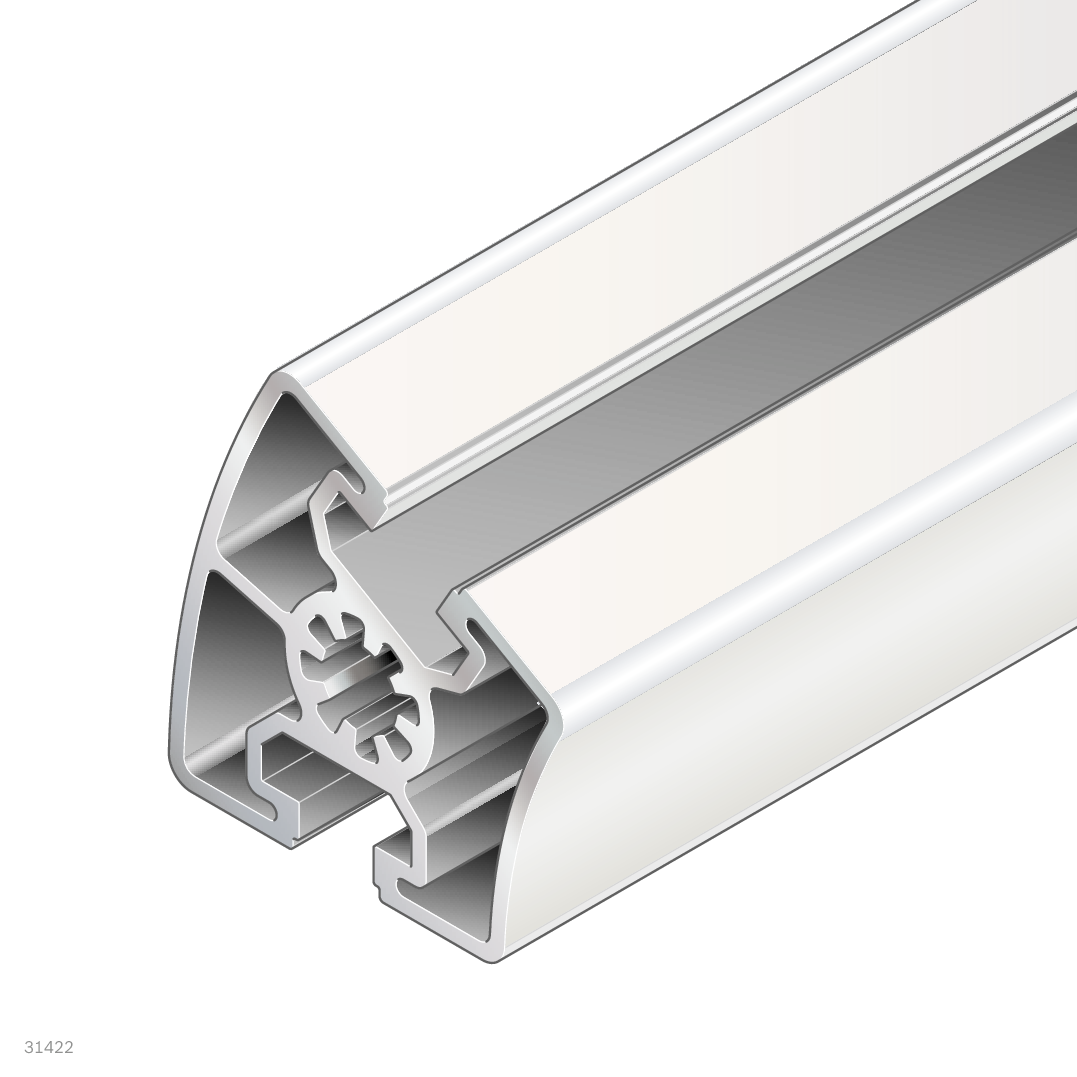

Strut Profile 45x30°, 6070 mm, Anodized Aluminum, Natural - Bosch Rexroth 3842558316
BOSCH REXROTH
Original product
Net price (excl. VAT)
€212.95
Item
BRR-3842558316
Manufacturer no.
3842558316
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842558316
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842558316
The Bosch Rexroth 45x30° strut profile is an anodized aluminum section, 6070 mm long, for constructing assembly and transfer systems. The 30-degree profile type with 45x45 mm dimensions and two open slots combines high rigidity with low weight - suited for diagonal bracing, stiffening members, and frame structures within the 45 mm modular grid.
- 45x30° cross-section, 45 mm modular dimension - fully compatible with the Bosch Rexroth Profile System 45
- Anodized aluminum: corrosion-resistant, durable surface finish, natural color
- Two open slots (profile slot 10) accept groove connectors and fasteners without cutting the slot
- Area moments of inertia lx 12.7 cm⁴ / ly 15.2 cm⁴ for accurate structural calculation
- Mass 1.9 kg/m - low self-weight simplifies handling and assembly
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x30° |
| Profile type | 30 degrees |
| Dimensions | 45x45 mm |
| Length [L] | 6070 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 2 |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 6.9 cm² |
| Area moment of inertia in x-direction [lx] | 12.7 cm⁴ |
| Area moment of inertia in y-direction [ly] | 15.2 cm⁴ |
| Moment of resistance in x-direction [Wx] | 5.0 cm³ |
| Moment of resistance in y-direction [Wy] | 5.3 cm³ |
| Torsional moment of inertia [It] | 6.6 cm⁴ |
| Moment of torsion resistance [Wt] | 5.7 cm³ |
| Mass [m] | 1.9 kg/m |
| Weight (bar) | 11.5 kg |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x30°, signal gray; Cover cap 45x30°, black |
| Hersteller-Nr | 3842558316 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 11.500000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
