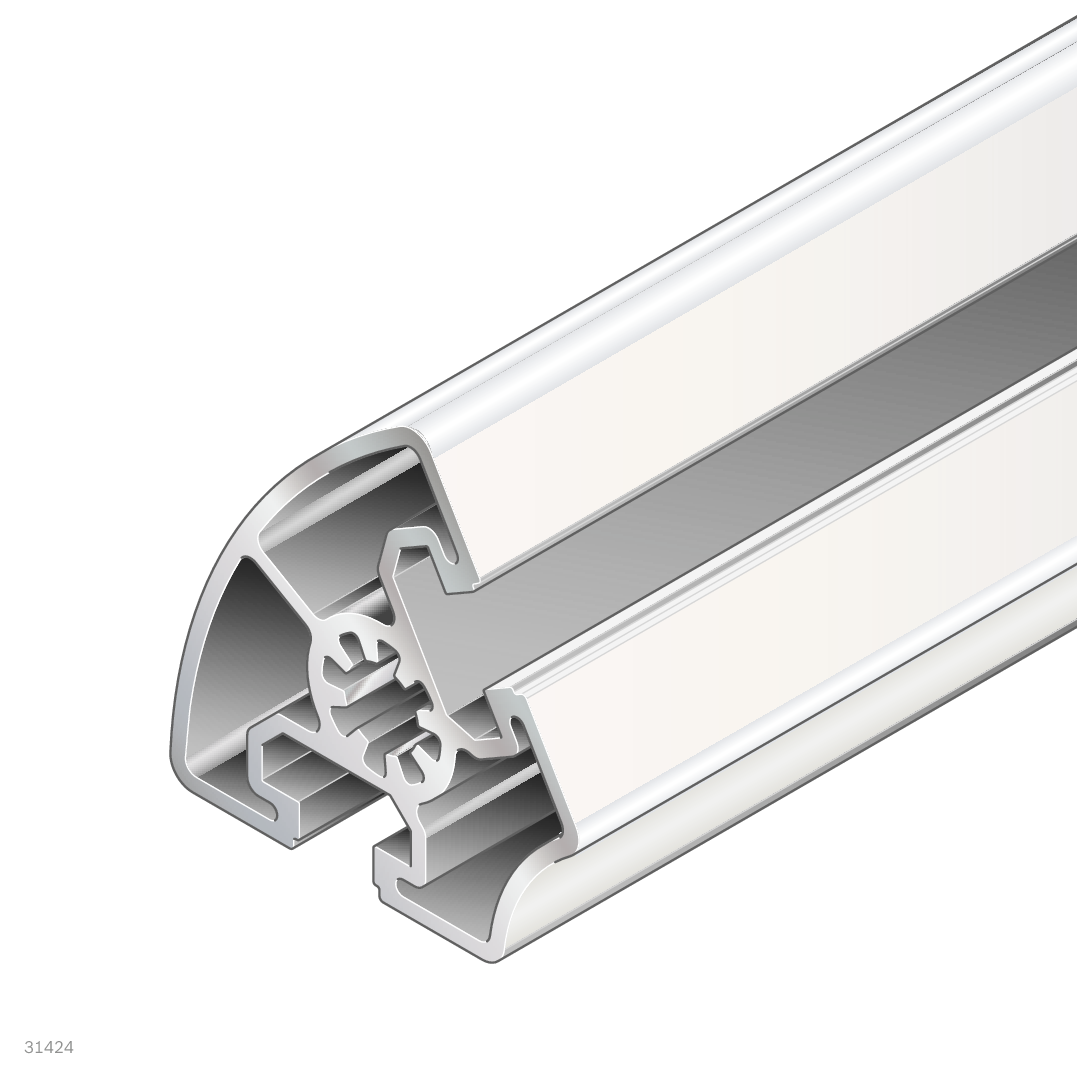

Strut profile with a 60-degree cross-section (45x60°) and 6070 mm length, made from anodized aluminum for the 45 mm modular grid. Two open slots allow flexible connections and attachments. Supplied as a single rod in standard length, natural color finish.
Strut Profile 45x60° L=6070 mm, Anodized Aluminum, Natural - Bosch Rexroth 3842558318
BOSCH REXROTH
Original product
Net price (excl. VAT)
€212.95
Item
BRR-3842558318
Manufacturer no.
3842558318
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842558318
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842558318
The Bosch Rexroth 45x60° strut profile is an anodized aluminum section with a 60-degree angle cross-section designed for the 45 mm modular grid. At 6070 mm in length, it suits large-format frame structures, machine bases, and workstation systems where diagonal or angled bracing is required.
- 60-degree profile type with 2 open slots - designed for diagonal struts and lateral bracing in the 45 mm grid
- 10 mm profile slot - compatible with the full range of Bosch Rexroth standard profile accessories
- Anodized aluminum surface - corrosion-resistant and ready to install without further treatment
- Profile surface area 6.8 cm² at 1.8 kg/m - favorable stiffness-to-weight ratio for structural applications
Technical data
| Parameter | Value |
|---|---|
| Cross-section | 45x60° |
| Profile type | 60 degrees |
| Modular dimension | 45 mm |
| Dimensions | 45x45 mm |
| Length [L] | 6070 mm |
| Profile slot | 10 mm |
| Open slots | 2 |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 6.8 cm² |
| Mass [m] | 1.8 kg/m |
| Weight (rod) | 11.3 kg |
| Area moment of inertia X [lx] | 11.4 cm⁴ |
| Area moment of inertia Y [ly] | 16.9 cm⁴ |
| Moment of resistance X [Wx] | 4.4 cm³ |
| Moment of resistance Y [Wy] | 5.2 cm³ |
| Torsional moment of inertia [It] | 6.8 cm⁴ |
| Moment of torsion resistance [Wt] | 4.3 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 45x60°, signal gray; Cover cap 45x60°, black |
| Hersteller-Nr | 3842558318 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 11.300000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
