Semicircular strut profile 45x45 HR for the 45 mm modular assembly system, 6070 mm length, anodized aluminum. One open slot (profile slot 10) accepts connectors and sliding nuts along the full length. Supplied as a single rod in standard length.
Half-Round Profile 45x45 HR, 6070 mm, Anodized Aluminum - Bosch Rexroth 3842558319
BOSCH REXROTH
Original product
Net price (excl. VAT)
€185.17
Item
BRR-3842558319
Manufacturer no.
3842558319
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842558319
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842558319

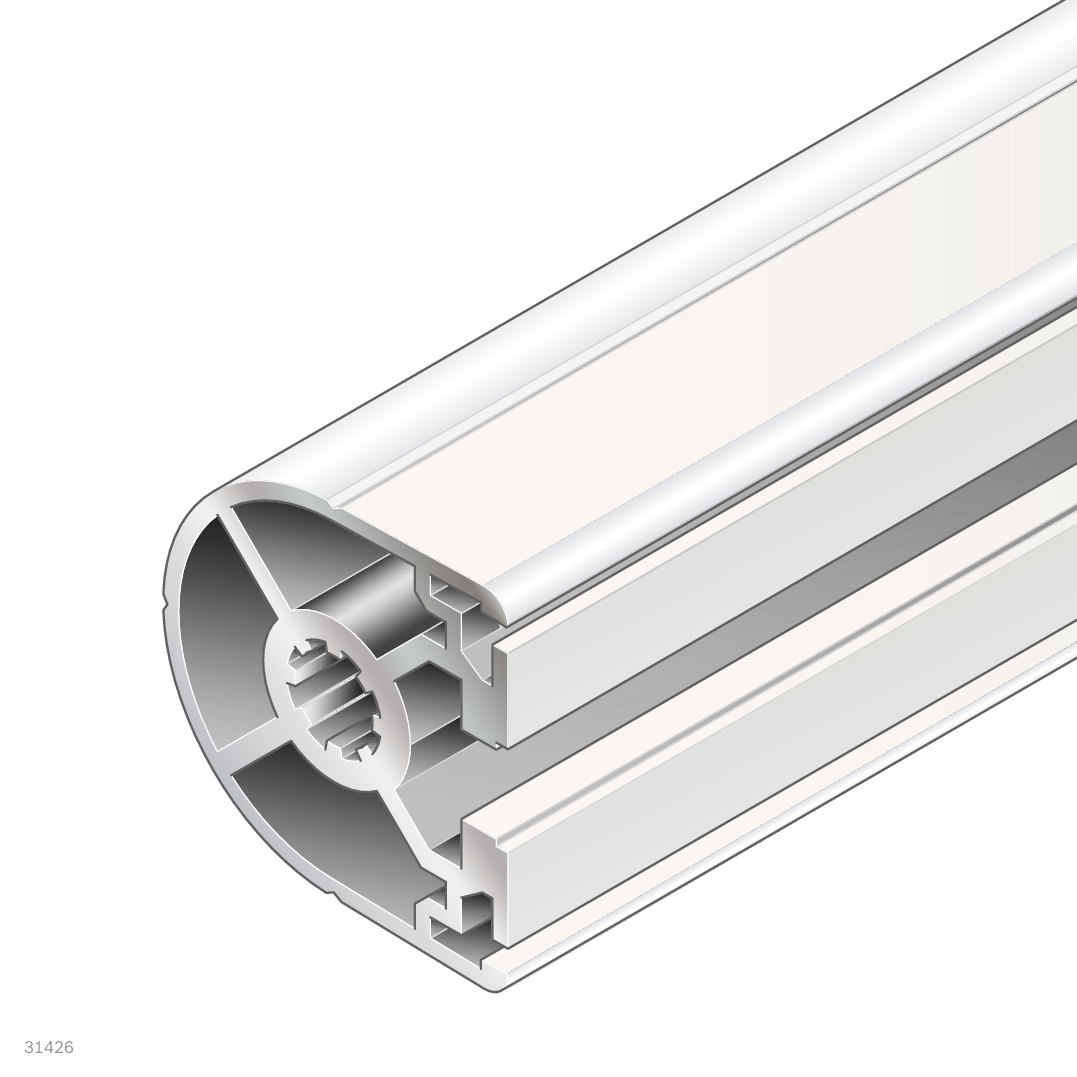

The half-round profile 45x45 HR (article 3842558319) is an anodized aluminum strut profile with a semicircular cross-section for the Bosch Rexroth modular assembly system on a 45 mm grid. At 6070 mm, it covers demanding frame structures in a single piece. One open slot (profile slot 10) accepts standard sliding nuts and connectors at any position along the length. The anodized surface provides lasting corrosion resistance without additional treatment.
- Semicircular profile type: compact footprint with good stiffness-to-weight ratio
- Area moments of inertia lx 11 cm⁴, ly 10.7 cm⁴ - suited for load-bearing frame applications
- Profile surface 6.6 cm² at only 1.8 kg/m linear mass - lightweight and rigid
- One open slot (profile slot 10) for connectors, sliding nuts, and attachments along the full length
- 45 mm modular dimension - compatible with the full Bosch Rexroth 45-series accessory range
- Anodized aluminum, natural color - corrosion-resistant and suitable for clean-room environments
Technical data
| Parameter | Value |
|---|---|
| Cross-section | 45x45 HR |
| Profile type | Semicircular |
| Modular dimension | 45 mm |
| Length [L] | 6070 mm |
| Open slots | 1 |
| Profile slot | 10 |
| Profile surface [A] | 6.6 cm² |
| Mass [m] | 1.8 kg/m |
| Weight (rod) | 11 kg |
| Area moment of inertia [lx] | 11 cm⁴ |
| Area moment of inertia [ly] | 10.7 cm⁴ |
| Moment of resistance [Wx] | 4.4 cm³ |
| Moment of resistance [Wy] | 4.8 cm³ |
| Torsional moment of inertia [It] | 7.6 cm⁴ |
| Moment of torsion resistance [Wt] | 3.4 cm³ |
| Material | Aluminum, anodized |
| Color | Natural |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 rod |
| Recommended accessories | Cover cap 45x45 HR, signal gray; Cover cap 45x45 HR, black |
| Hersteller-Nr | 3842558319 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 11.000000 |
| Lenght | 6070 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
