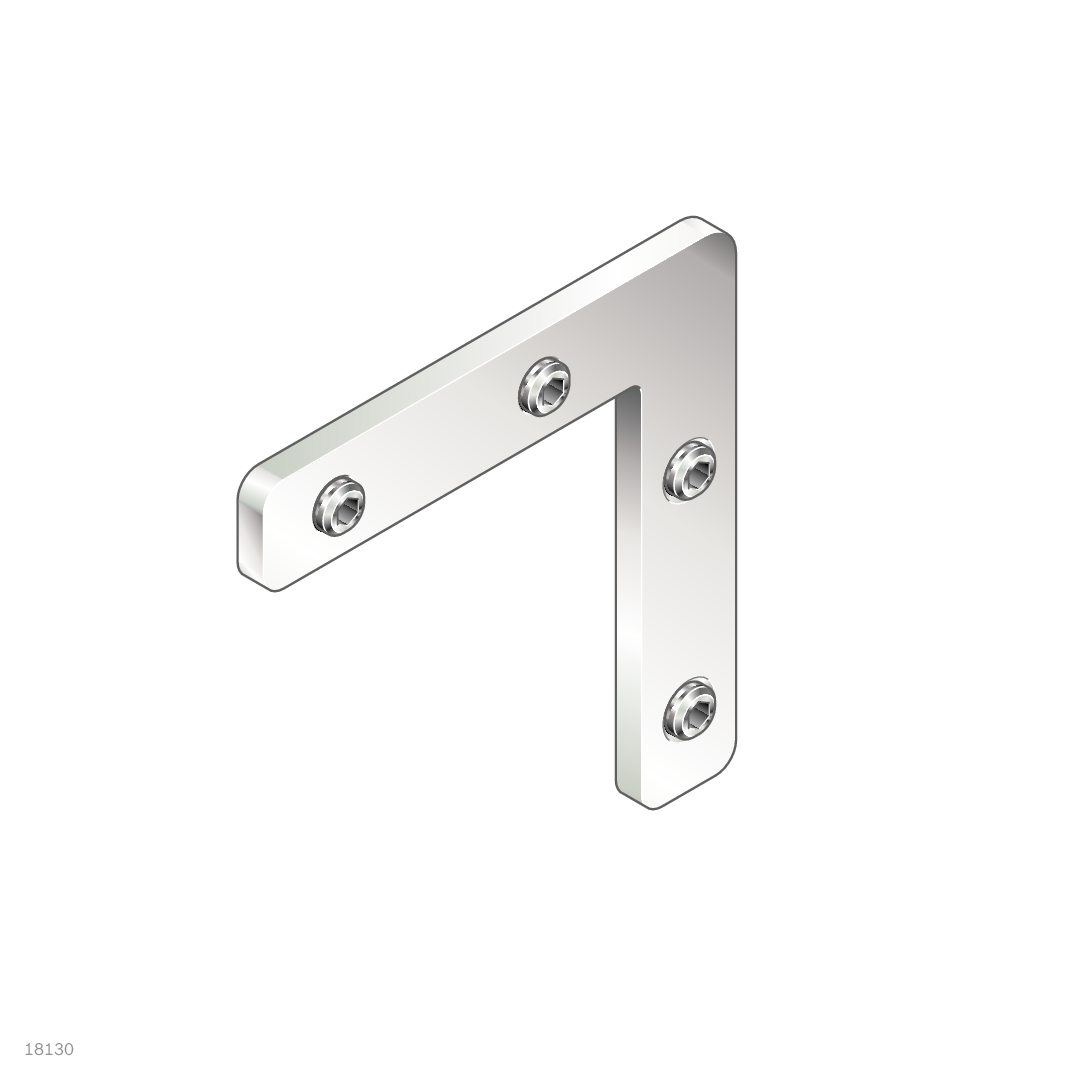

Miter Bracket for Slot 10, Galvanized Steel - Bosch Rexroth 3842563228
Miter bracket for right-angled, miter-cut connections between Rexroth slot 10 aluminum profiles. No profile finishing required with open slots; closed slots need only a through-hole for screwdriver access. Includes 4 headless setscrews ISO 913 M10x10; ESD-suitable, galvanized steel.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The miter bracket for slot 10 creates right-angled miter connections between Rexroth aluminum construction profiles. Open profile slots require no finishing work; closed profile slots need only a through-hole for screwdriver access. Fastening hardware - 4 headless setscrews ISO 913 M10x10 - is included, so the connection is ready to assemble straight from the box.
- Right-angled miter connection with no profile finishing on open slots
- ESD-suitable for use in electrostatically protected assembly areas
- Complete with fastening material - no additional hardware required
- Packaging unit: 20 pieces
Technical data
| Specification | Value |
|---|---|
| Profile slot | 10 |
| Material | Steel, galvanized |
| Fastening material | 4x headless setscrew ISO 913 M10x10, steel, galvanized |
| Scope of delivery | Incl. fastening material |
| ESD | Yes |
| Weight | 0.045 kg |
| Packaging unit | 20 pieces |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842563228 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN 913 |
