Compact aluminum strut profile with a 15x22.5 mm cross-section and one open slot (profile slot 10) for versatile use in modular assembly and framing systems. The anodized finish provides lasting corrosion resistance. Supplied as a pack of 10 pieces, each 3000 mm long, on a 45 mm modular grid.

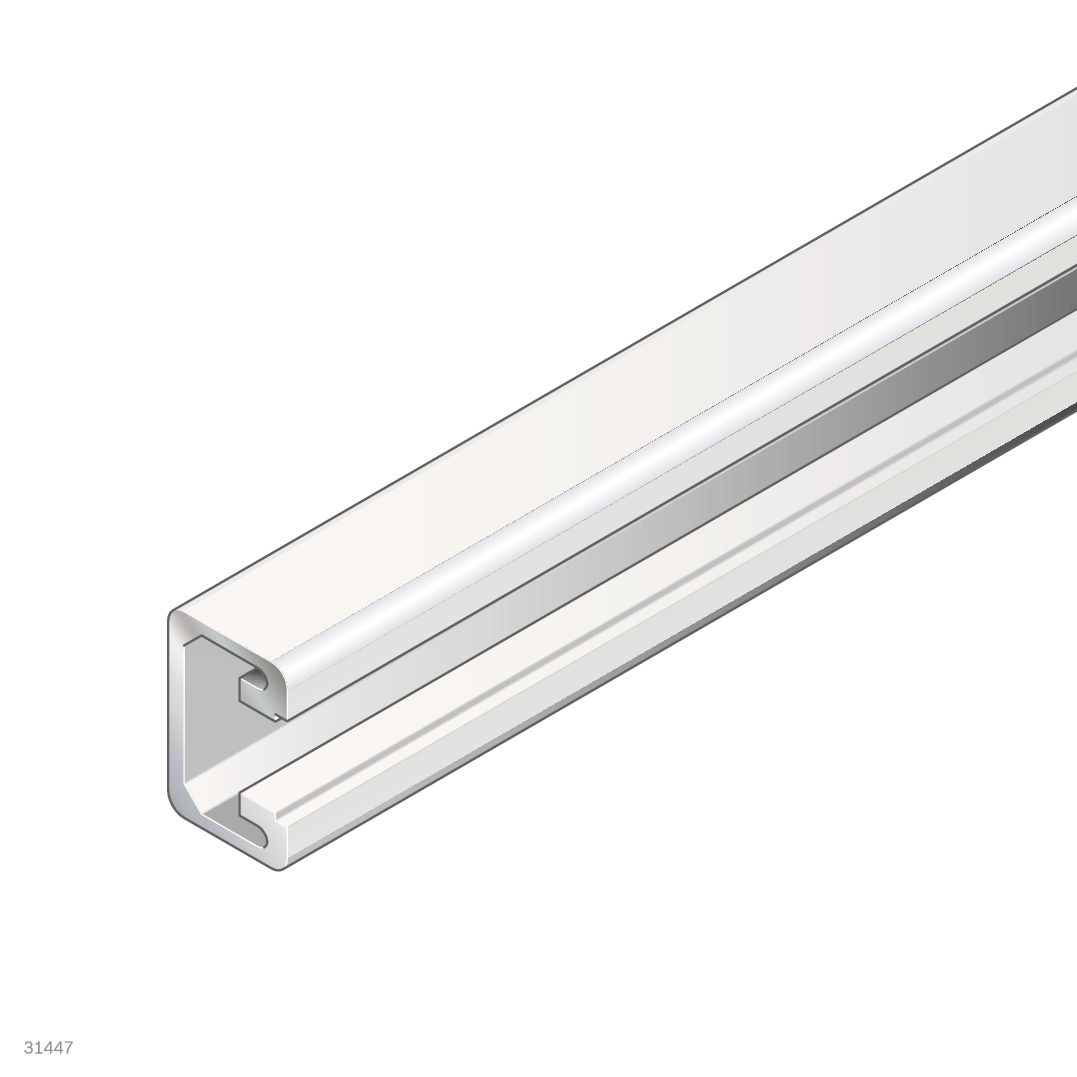

Strut Profile 15x22.5 mm, Anodized Aluminum, 3000 mm, Pack of 10 - Bosch Rexroth 3842563231
BOSCH REXROTH
Original product
Net price (excl. VAT)
€285.00
Item
BRR-3842563231
Manufacturer no.
3842563231
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842563231
Country of originSweden
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842563231
The 15x22.5 strut profile in anodized aluminum is a slim structural element for bracing, frames, and light load-bearing structures within the Bosch Rexroth profile system. Its single open slot and 45 mm modular dimension allow direct integration into existing aluminum profile assemblies.
- Anodized aluminum - permanent corrosion protection without paint
- One open slot (profile slot 10) for single-sided connections and attachments
- 45 mm modular dimension for seamless compatibility in the Bosch Rexroth modular system
- Compact cross-section saves installation space while providing adequate bending stiffness
- Pack of 10 x 3000 mm - economical stock for series assembly
Technical data
| Attribute | Value |
|---|---|
| Cross-section | 15x22.5 mm |
| Length [L] | 3000 mm |
| Delivery unit | 10 pieces |
| Condition on delivery | Packaging unit in standard length |
| Profile type | Standard |
| Profile slot | 10 |
| Open slots | 1 |
| Modular dimension | 45 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 1.3 cm² |
| Area moment of inertia in x-direction [lx] | 0.8 cm⁴ |
| Area moment of inertia in y-direction [ly] | 0.3 cm⁴ |
| Moment of resistance in x-direction [Wx] | 0.9 cm³ |
| Moment of resistance in y-direction [Wy] | 0.6 cm³ |
| Mass [m] | 0.3 kg |
| Weight (pack) | 11.5 kg |
| Recommended accessories | Cover cap 15x22.5, signal gray; Cover cap 15x22.5, black |
| Hersteller-Nr | 3842563231 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 11.500000 |
| Lenght | 3000 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
