Slim aluminum strut profile with an 11x20 mm cross-section and 2000 mm length for lightweight support and framing structures on a 30 mm modular grid. The anodized finish with one open slot (profile slot 8) integrates directly with the Bosch Rexroth strut profile accessory range. Supplied as a single rod in standard length.

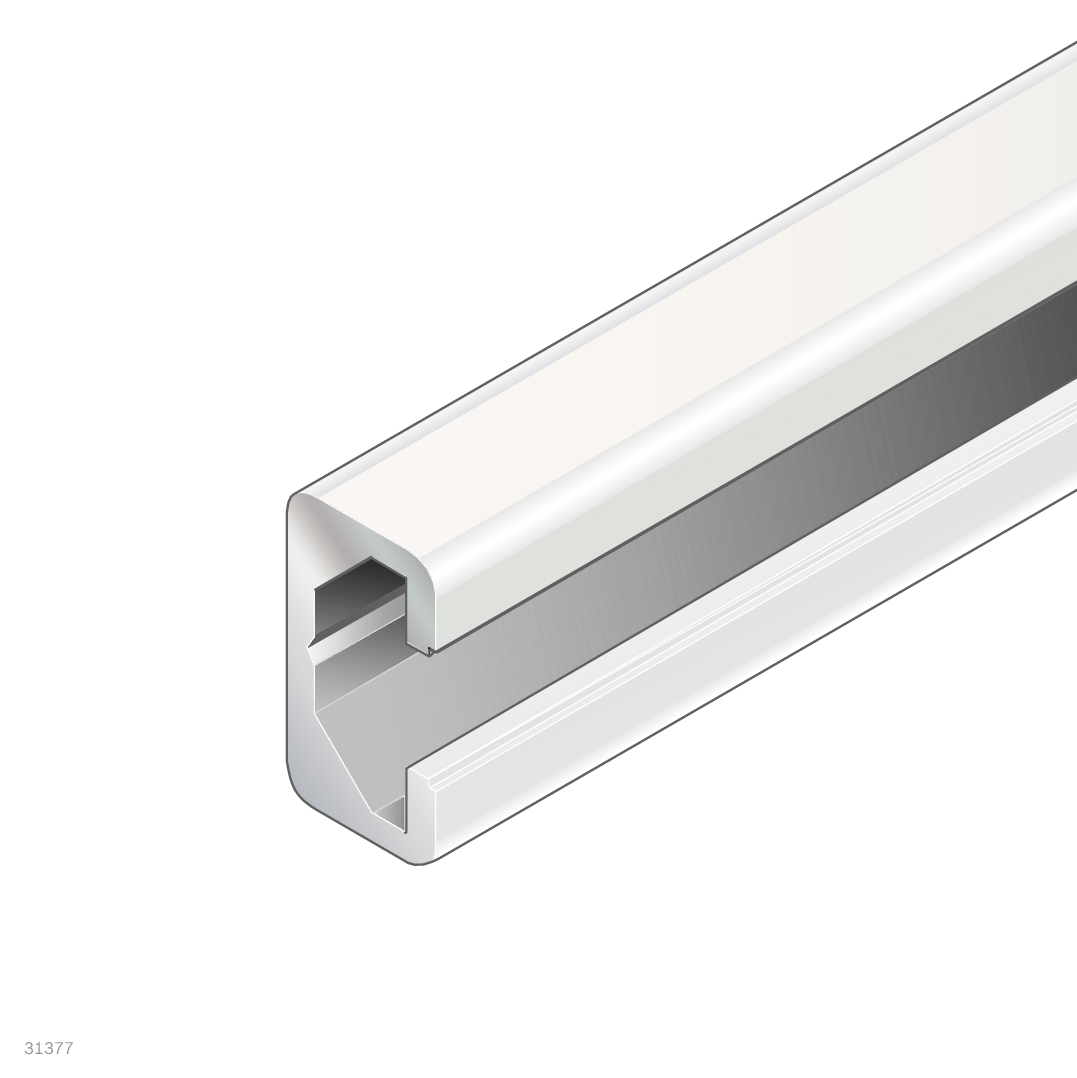

Strut Profile 11x20, L=2000 mm, Anodized Aluminum, 1 Open Slot - Bosch Rexroth 3842564213
BOSCH REXROTH
Original product
Net price (excl. VAT)
€21.92
Item
BRR-3842564213
Manufacturer no.
3842564213
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842564213
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842564213
The Bosch Rexroth 11x20 strut profile is a lightweight aluminum structural member for support, bracing, and enclosure applications in assembly systems, conveyor frames, and industrial workstations. Its 11x20 mm cross-section with one open slot (profile slot 8) on a 30 mm modular grid connects directly to standard Bosch Rexroth strut profile accessories without special components.
- Low dead weight: 0.3 kg/m at 1 cm² profile surface area - keeps frame weight to a minimum
- Section modulus Wx = 0.7 cm³ / Wy = 0.3 cm³ - adequate bending stiffness for light structural duties
- Anodized surface: corrosion-resistant, wear-resistant, and clean in appearance
- 30 mm modular pitch: compatible with the full Bosch Rexroth strut profile accessory program (brackets, connectors, cover caps)
- Supplied as a single rod, ready to cut to length
Technical data
| Property | Value |
|---|---|
| Cross-section | 11x20 mm |
| Length [L] | 2000 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile slot | 8 |
| Open slots | 1 |
| Modular dimension | 30 mm |
| Profile type | Standard |
| Profile surface [A] | 1 cm² |
| Mass [m] | 0.3 kg/m |
| Weight (rod) | 0.567 kg |
| Area moment of inertia X [lx] | 0.5 cm⁴ |
| Area moment of inertia Y [ly] | 0.1 cm⁴ |
| Moment of resistance X [Wx] | 0.7 cm³ |
| Moment of resistance Y [Wy] | 0.3 cm³ |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 15x120, signal gray; Cover cap 15x120, black |
| Hersteller-Nr | 3842564213 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.567000 |
| Lenght | 2000 mm |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
