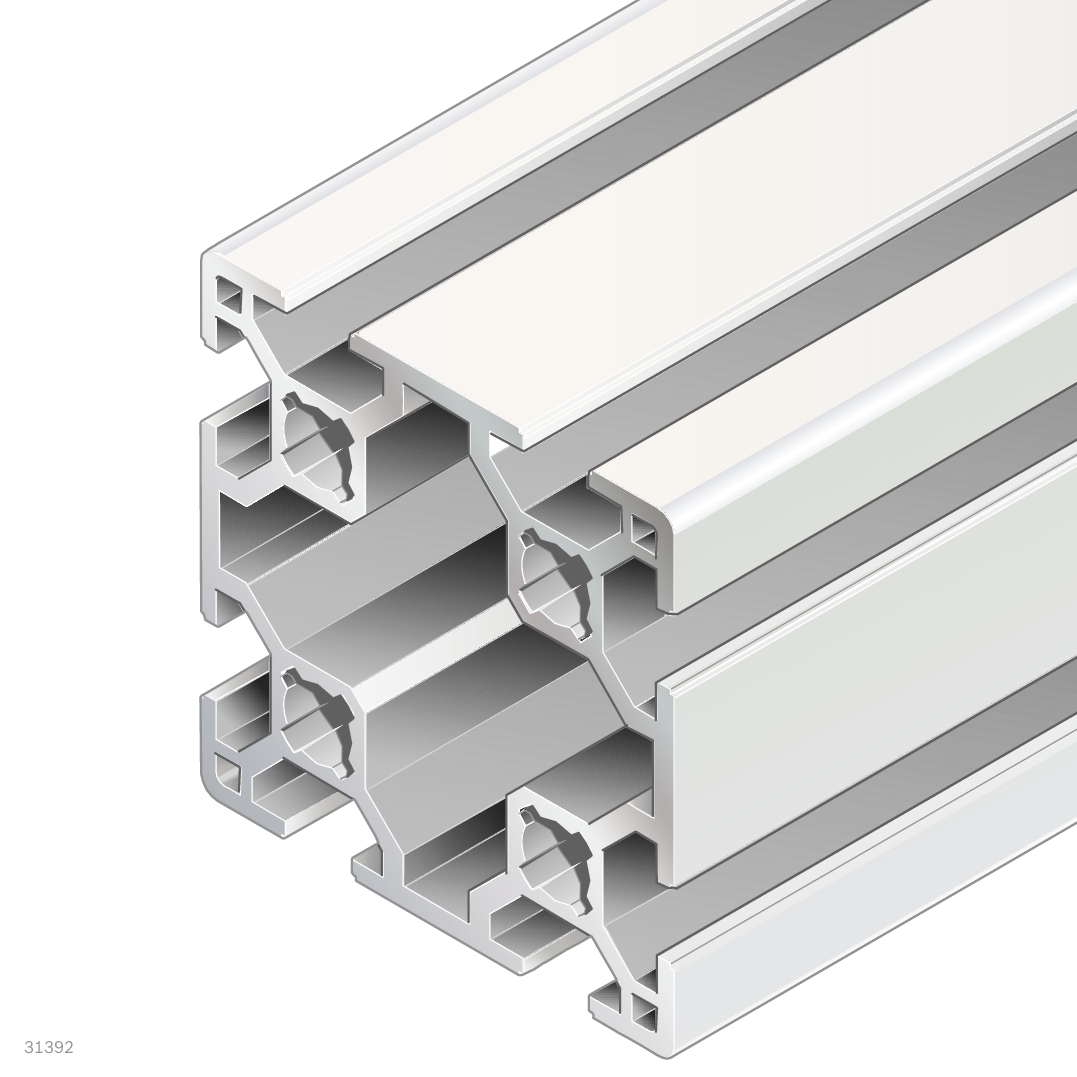

Strut Profile 60x60 8N, Length 6070 mm, Anodized Aluminum - Bosch Rexroth 3842564215
Strut profile with 60x60 mm square cross-section, size-8 slot, four open slots, and anodized aluminum surface for assembly frames, machine guards, and conveyor structures. Supplied as a single rod at the standard length of 6070 mm, ready to cut to size. Recommended accessories: cover cap 60x60 in signal gray or black.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth strut profile 60x60 8N is a core structural element of the Rexroth 60 mm modular profile system, designed for assembly frames, protective enclosures, conveyor systems, and workstation structures. The anodized aluminum construction combines low weight with high rigidity and a corrosion-resistant finish.
- Four open size-8 slots on all faces allow tool-free connections and later modifications without disassembly.
- Area moment of inertia Ix = Iy = 39.7 cm⁴ and moment of resistance Wx = Wy = 13.2 cm³ deliver equal load capacity in both axes.
- Profile cross-section area 9.8 cm² and linear mass 2.6 kg/m give a favorable stiffness-to-weight ratio.
- Standard length 6070 mm as a single rod - cut to the required dimension on site.
- Natural anodized finish: corrosion-resistant and visually clean, no additional painting required.
Technical data
| Property | Value |
|---|---|
| Cross-section | 60x60 mm, type 8N |
| Profile slot | 8 |
| Open slots | 4 |
| Modular dimension | 60 mm |
| Length [L] | 6070 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 9.8 cm² |
| Mass [m] | 2.6 kg/m |
| Weight (rod) | 16.29 kg |
| Area moment of inertia Ix / Iy | 39.7 cm⁴ |
| Moment of resistance Wx / Wy | 13.2 cm³ |
| Torsional moment of inertia [It] | 19.3 cm⁴ |
| Moment of torsion resistance [Wt] | 6.8 cm³ |
| Profile type | Standard |
| Condition on delivery | Single rod in standard length |
| Packaging unit | 1 |
| Recommended accessories | Cover cap 60x60, signal gray; Cover cap 60x60, black |
| Weight | 16.29 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842564215 |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Lenght | 6070 mm |
