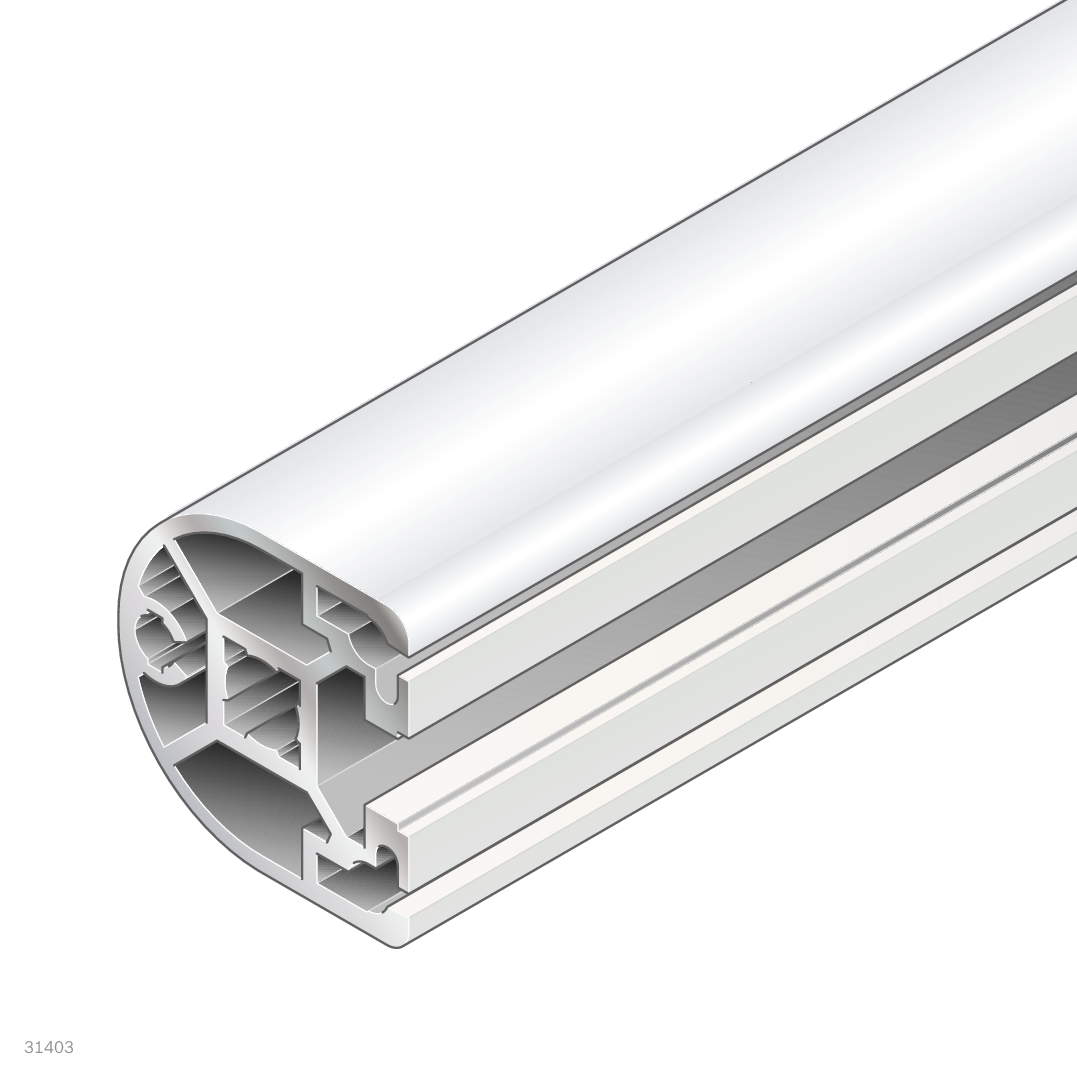

The product may differ from the illustration
Semicircular strut profile with 40x40 HR cross-section and 6070 mm length, made from anodized aluminum for ESD-protected assembly lines and workstation structures. The single open slot (profile slot 10, 40 mm modular dimension) integrates directly with Rexroth connecting elements and accessories. Supplied as a single rod in standard length.
Strebenprofil 40HR, 6070 mm, Aluminium eloxiert, ESD-geeignet - Bosch Rexroth 3842564216
BOSCH REXROTH Original product
Net price (excl. VAT)
€169.04 €142.05
excl. Shipping Cost
Item BRR-3842564216
Manufacturer no. 3842564216
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842564216
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842564216
The 40HR strut profile at 6070 mm is a structural aluminum extrusion from the Rexroth Assembly Technology system. Its semicircular 40x40 HR cross-section with one open slot (profile slot 10) accepts connectors, brackets, and system components on the 40 mm grid - no secondary machining required. ESD suitability qualifies it for electrostatic protected areas (EPA) in electronics manufacturing and device assembly.
- Anodized aluminum: corrosion-resistant, conductive, and durable under continuous industrial use
- Semicircular profile type HR: reduced injury risk at exposed edges, smooth to handle
- Profile slot 10 on 40 mm grid: direct compatibility across the full Rexroth modular assembly system
- ESD-suitable: safe for use in electrostatic sensitive areas per EPA requirements
- Supplied as a single rod in standard length - can be cut to size as required
Technical data
| Property | Value |
|---|---|
| Cross-section | 40x40 HR |
| Profile type | Semicircular |
| Length [L] | 6070 mm |
| Modular dimension | 40 mm |
| Profile slot | 10 |
| Open slots | 1 |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 5.5 cm² |
| Area moment of inertia in x-direction [lx] | 8.1 cm⁴ |
| Area moment of inertia in y-direction [ly] | 7.6 cm⁴ |
| Moment of resistance in x-direction [Wx] | 4.0 cm³ |
| Moment of resistance in y-direction [Wy] | 3.6 cm³ |
| Mass [m] | 1.5 kg |
| Weight (delivery unit) | 9.13 kg |
| Packaging unit | 1 |
| Condition on delivery | Single rod in standard length |
| Recommended accessories | Cover cap 40x40 HR (signal gray / black), Cover cap with hole 40x40 HR (signal gray / black) |
| Hersteller-Nr | 3842564216 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 9.130000 |
| Lenght | 6070 mm |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
