Carrying Plate WT 2, Steel 4.8 mm, 240 x 320 mm, KTL Coated - Bosch Rexroth 3842174323
Bosch Rexroth
✓ Original product Brand new Made in Germany
Base plate for self-assembly of WT 2 workpiece pallets. Made of steel with KTL coating, completely drilled and ready to assemble for the 240 x 320 mm pallet size. Combines with the frame modules of the WT 2 workpiece pallet.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

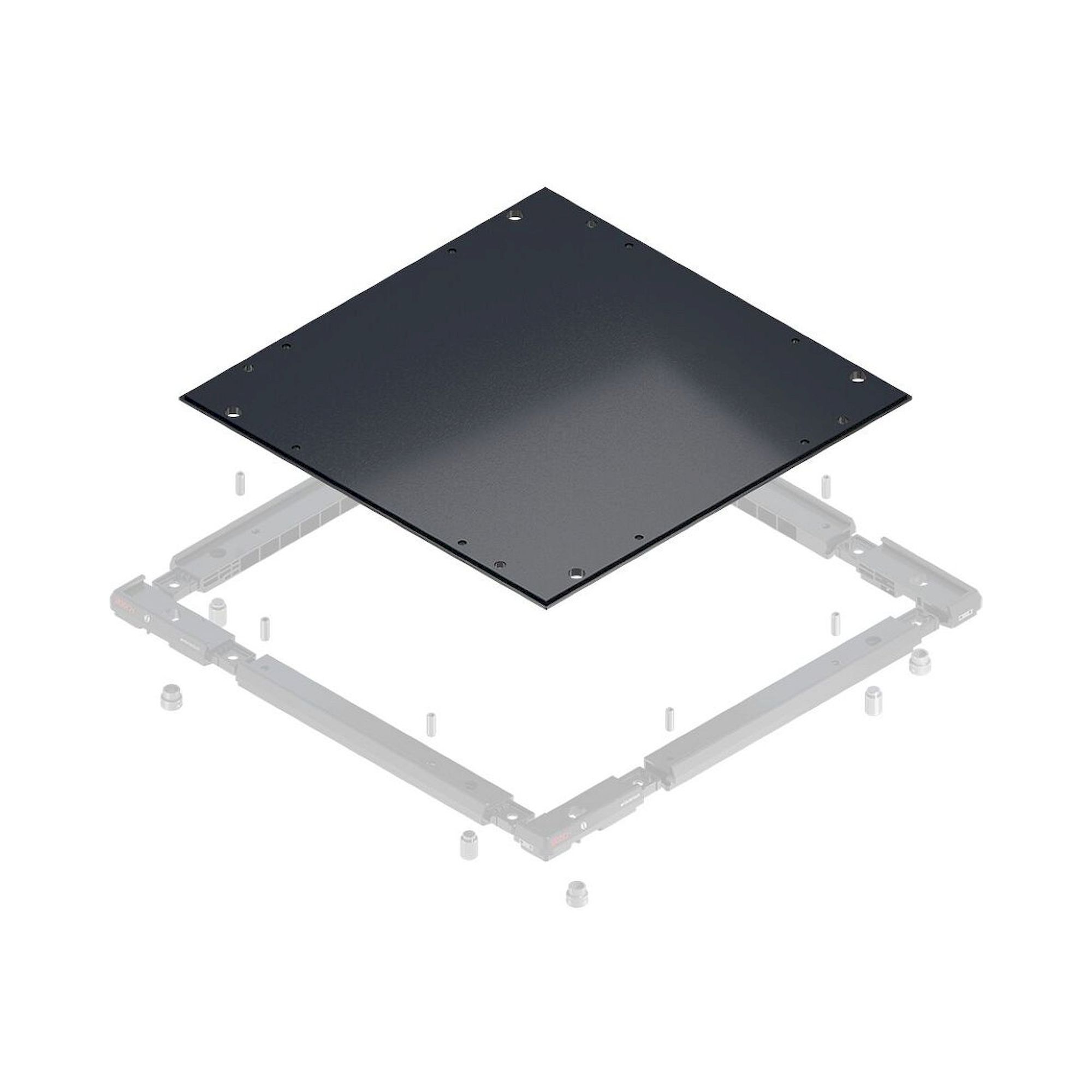

The carrying plate is the base for self-assembly of WT 2 workpiece pallets. It is combined with frame modules and fastening elements and holds the workpiece or the workpiece fixture. This variant is made of steel with KTL coating and is designed for the 240 x 320 mm workpiece pallet.
- Completely drilled and ready for assembly
- Steel, 4.8 mm thick, with KTL coating (cataphoretic primer) for corrosion protection
- Can be combined with frame modules of the WT 2 workpiece pallet
- Drilling plans for identification and data storage systems (RFID) available
Technical data
| Material | Steel |
|---|---|
| Coating | KTL (cataphoretic primer) |
| Plate thickness | 4.8 mm |
| Workpiece pallet width | 240 mm |
| Workpiece pallet length | 320 mm |
| Flatness | 0.5 mm |
| Plate weight | 2.8 kg |
| Max. workpiece pallet weight | 100 kg |
| Weight | 0.01 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842174323 |
| Zolltarifnummer | 84879059 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
