The product may differ from the illustration
The 45x45 joint creates a movable connection between two aluminum profiles with a 180° swivel range. It is ESD-capable and ships with complete fastening material for profiles with modular dimension 45 and slot 10.
Gelenk 45x45, Nut 10, ESD, Aluminiumdruckguss - Bosch Rexroth 3842502684
BOSCH REXROTH Original product
Net price (excl. VAT)
€31.12 €26.15
Item BRR-3842502684
Manufacturer no. 3842502684
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842502684
Country of originTurkey
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842502684
Frequently Bought Together
- This Item: €31.12 €26.15
- Klemmhebel für Gelenk 45/60, Zinkdruckguss schwarz - Bosch Rexroth 3842505144 €8.40 €7.06
- Strebenprofil 20x20 2NVS, 1000 mm, Nut 6, Aluminium eloxiert - Bosch Rexroth 3842992924-1000 €12.72 €10.69

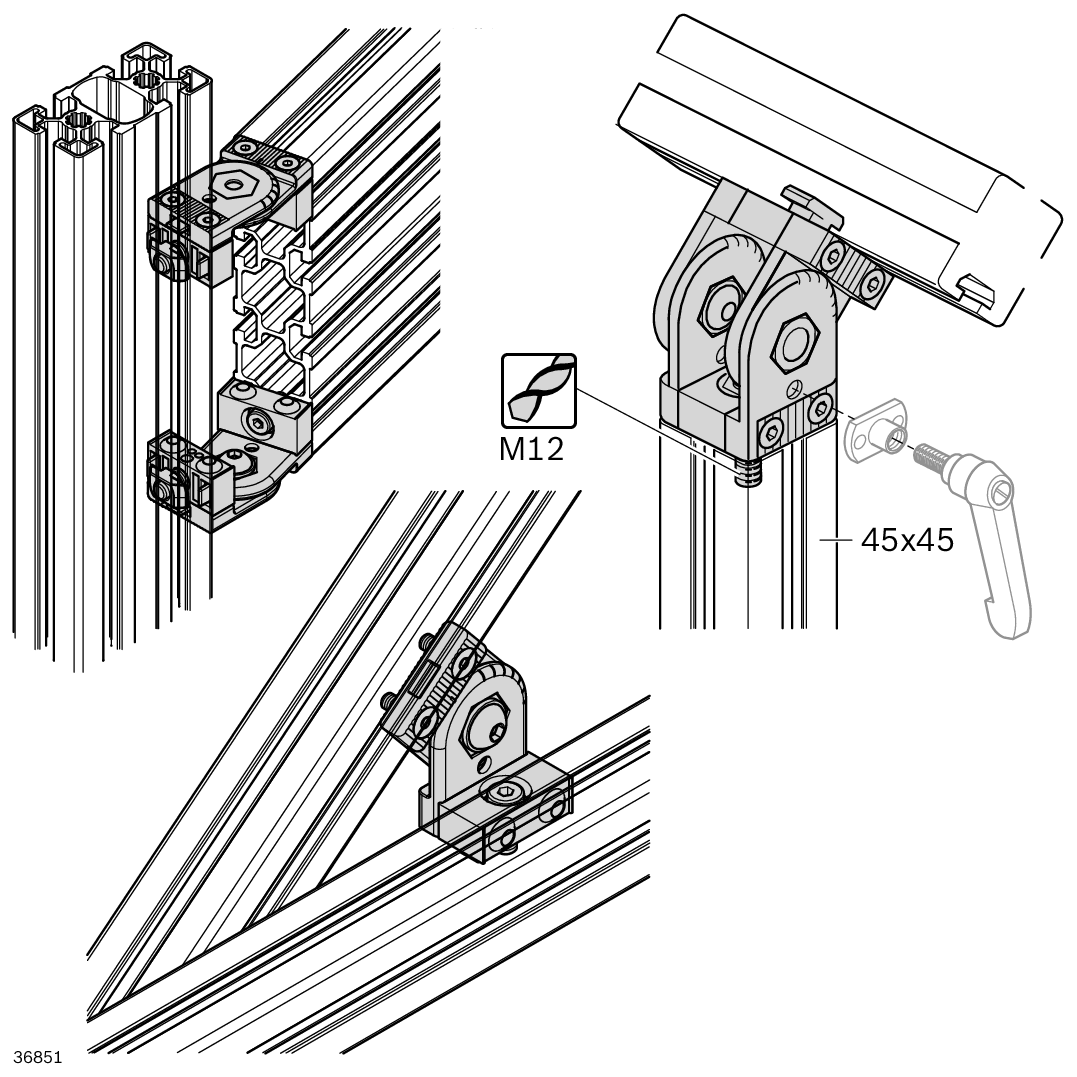

The 45x45 joint creates a movable connection between two aluminum profiles and provides a 180° swivel range. It is intended for designers of adjustable frames, protective enclosures and workstation systems in the profile system with modular dimension 45 and slot 10.
- 180° swivel range for flexible angle adjustment
- High load capacity with F1 up to 15000 N and F2 up to 1000 N
- ESD-capable for electrostatically protected areas
- Includes fastening material for direct assembly
Technical data
| Profile slot | 10 |
|---|---|
| Modular dimension [mm] | 45 |
| Dimensions | 45x45 |
| ESD | yes |
| Swivel range [°] | 180 |
| Force F1 [N] | 15000 |
| Force F2 [N] | 1000 |
| Material | Diecast aluminum |
| Material information | Joint: Diecast aluminum; Fastening material: Steel, galvanized |
| Fastening material | 2x washer DIN125-8.4, 2x cylinder head screw DIN7984-M8x20, 2x T-nut groove 10 M8, 2x cylinder head screw DIN7984-M12x40 |
| Scope of delivery | incl. fastening material (FS) |
| Recommended accessories | Clamping lever 3842505144 |
| Packaging unit | 1 |
| Weight [kg] | 0.76 |
| ESD-Ausführung | ESD (antistatic) |
|---|---|
| Hersteller-Nr | 3842502684 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Turkey |
| Weight | 0.760000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
