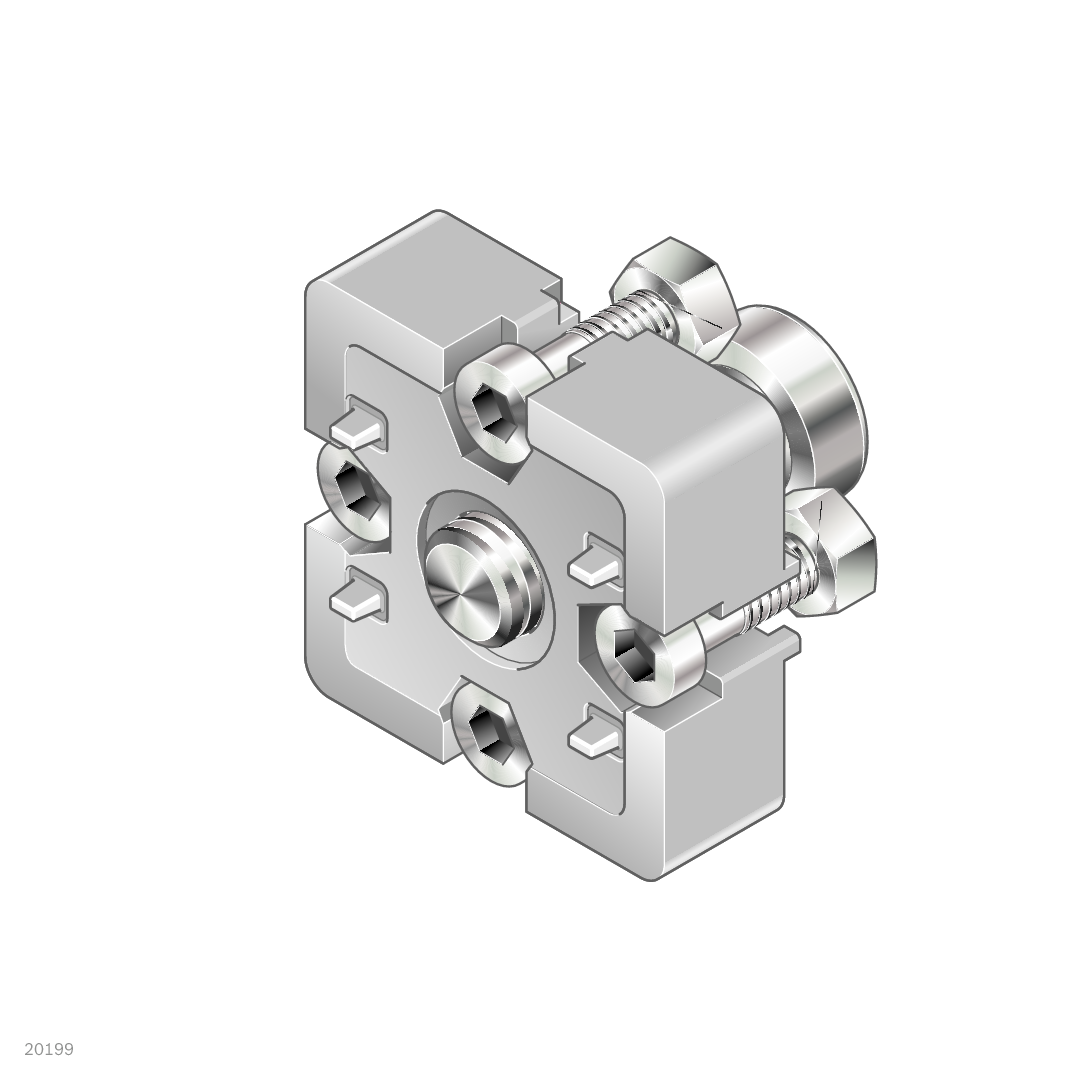

The Longitudinal End Connector 45 Pneu joins two 45x45 or 45x45L profiles end to end, providing both the mechanical and the pneumatic connection. The central profile bore carries compressed air up to 8 bar through the joint. Made of diecast aluminum and supplied with fastening material and seals.
Longitudinal End Connector 45 Pneu, Diecast Aluminum, Slot 10 - Bosch Rexroth 3842523094
BOSCH REXROTH
Original product
Net price (excl. VAT)
€17.85
Item
BRR-3842523094
Manufacturer no.
3842523094
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842523094
Country of originGermany
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842523094
The Longitudinal End Connector 45 Pneu from Bosch Rexroth joins two 45x45 or 45x45L profiles end to end, providing the mechanical and the pneumatic connection in a single component. Compressed air is routed through the central profile bore, removing the need for separate tubing across the joint. Suitable for building frames and stations in assembly and automation technology.
- Combined mechanical and pneumatic end connection in one part
- Compressed-air routing through the central bore up to 8 bar
- Corrosion-resistant diecast aluminum with NBR seals
- Fastening material and seals included
Technical data
| Profile slot | 10 |
| Compatible profiles | 45x45, 45x45L |
| Material | Diecast aluminum |
| Seal | NBR |
| Max. pressure (pmax) | 8 bar |
| Fastening material | 4x cylinder head screw ISO4762-M6x20 |
| Scope of delivery | Incl. fastening material, sealing rings |
| Packaging unit | 1 |
| Weight | 0.203 kg |
| Norm | ISO 4762 |
|---|---|
| Hersteller-Nr | 3842523094 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.203000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
