Steel carrying plate for the self-assembly of workpiece pallets in the WT 2 transfer system. KTL-coated, 4.8 mm thick in 640 x 640 mm format, fully drilled and ready for assembly. Combines with frame modules and fastening elements into an application-specific pallet.
Carrying Plate WT 2, Steel 4.8 mm, 640 x 640 mm - Bosch Rexroth 3842523381
BOSCH REXROTH
Original product
Net price (excl. VAT)
€256.44
Item
BRR-3842523381
Manufacturer no.
3842523381
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842523381
Country of originGermany
Customs tariff number84879059
ConditionNew
Artikel
BRR-3842523381

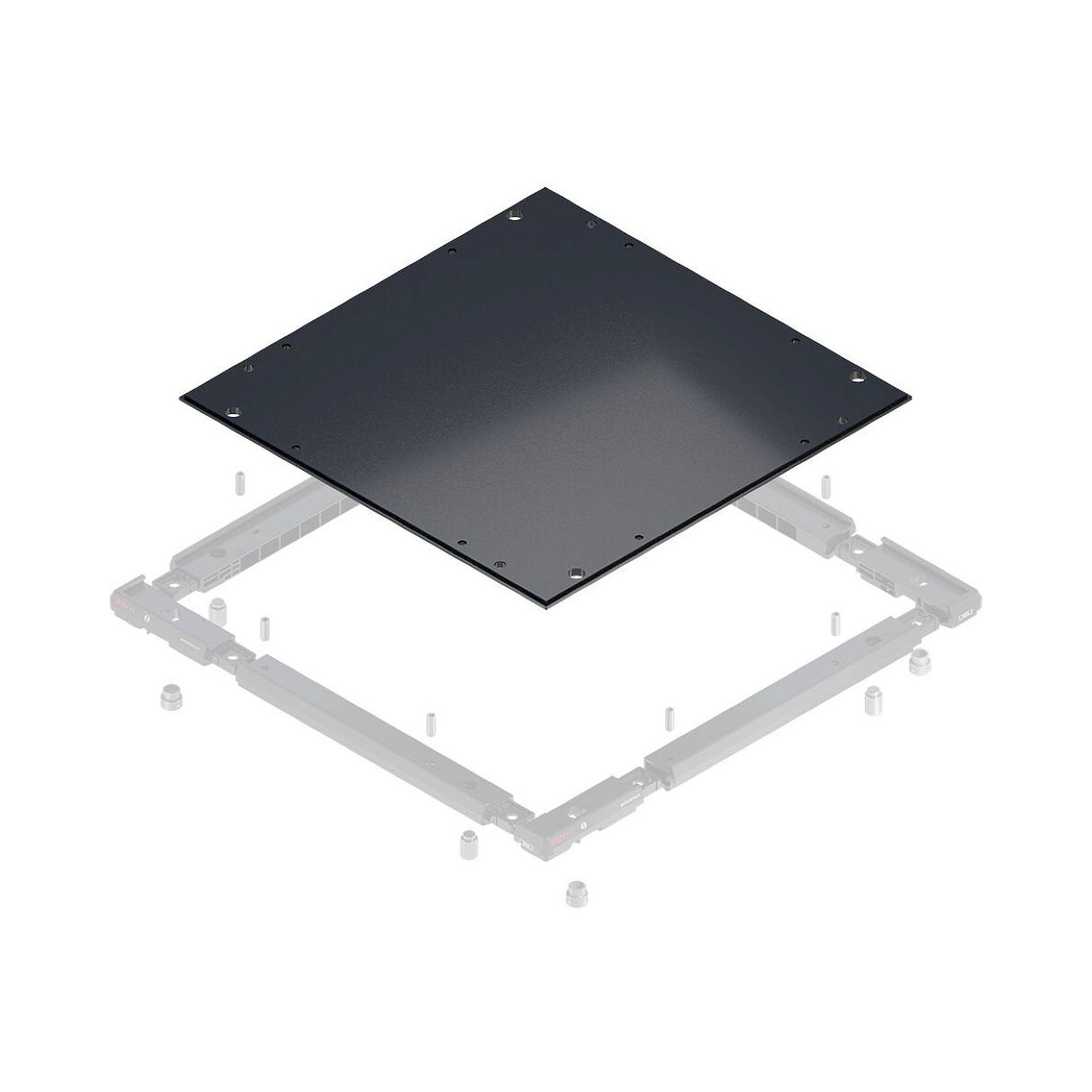

The carrying plate is used for the self-assembly of WT 2 workpiece pallets from Bosch Rexroth. Together with frame modules and fastening elements it forms an application-specific workpiece pallet that supports the part or part fixture. This version is the largest steel variant in the 640 x 640 mm format.
- Steel plate, 4.8 mm thick, with KTL (cataphoretic) primer coating for corrosion protection
- Completely drilled and ready for assembly
- Four threaded holes for reinforcing bolts
- Can be combined with frame modules of WT 2 workpiece pallets
Technical data
| Workpiece pallet width (bWT) | 640 mm |
| Workpiece pallet length (lWT) | 640 mm |
| Plate thickness (dPL) | 4.8 mm |
| Material | Steel, KTL coating |
| Flatness | 1 mm |
| Plate weight | 16.3 kg |
| Feature | four threaded holes for reinforcing bolts |
| ESD version | TEC |
|---|---|
| Hersteller-Nr | 3842523381 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 84879059 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
