Connecting bracket for joining aluminum profiles of size 45x90 with profile slot 10 at a right angle. ESD-capable diecast aluminum, vibratory ground, including fastening material. For stable corner joints in machine and frame construction.
Bracket 45x90 Set, Diecast Aluminum, ESD, Slot 10 - Bosch Rexroth 3842523570
BOSCH REXROTH
Original product
Net price (excl. VAT)
€11.50
Item
BRR-3842523570
Manufacturer no.
3842523570
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842523570
Country of originGermany
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842523570
Frequently Bought Together
-
This Item:
€11.50
-
Sliding Element 10 Flat Lockable, POM, Profile Slot 10 - Bosch Rexroth 3842552424
€5.52
-
Mounting bracket set M8, P60-40, steel galvanized, slot 10, ESD - Bosch Rexroth 3842537861
€18.60
Total price
The Bosch Rexroth bracket 45x90 provides a stable right-angle connection between aluminum profiles with profile slot 10. It is intended for designers and assemblers in machine, frame and fixture construction who need load-bearing corner joints.
- ESD-capable for applications with electrostatic discharge requirements
- Diecast aluminum, vibratory ground, for high load capacity
- Complete set including fastening material for direct assembly
- High admissible bending and torsional moments
Technical data
| Profile slot | 10 |
| Dimensions | 45x90 |
| Material | Diecast aluminum, vibratory ground |
| ESD | yes |
| Bending moment 1 | 180 Nm |
| Bending moment 2 | 400 Nm |
| Torsional moment | 60 Nm |
| Fastening material | 4x T-bolt M8x25, 4x flange nut M8 (steel, galvanized) |
| Scope of delivery | Bracket (standard), incl. fastening material |

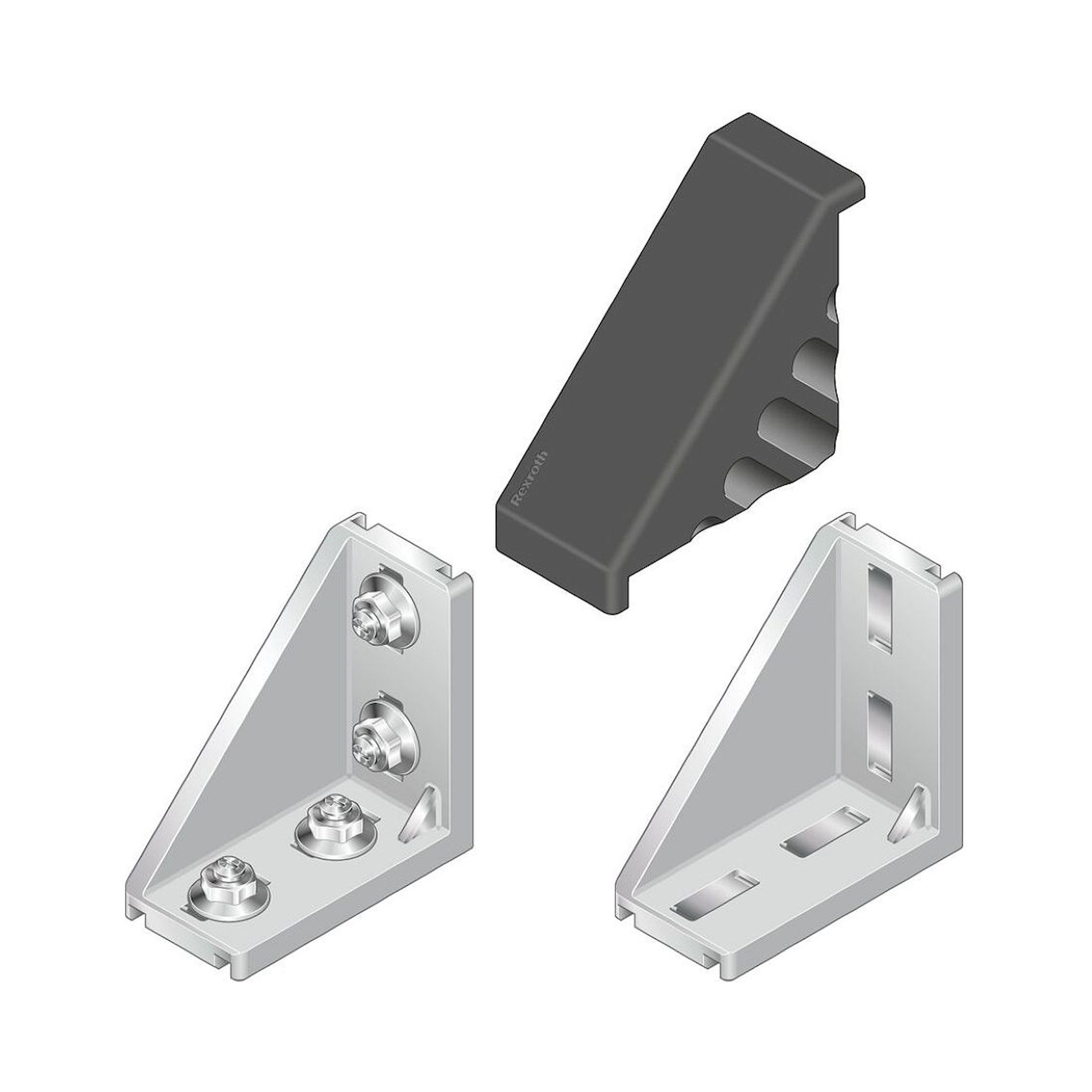

| Recommended accessories | Cover cap 45x90 signal gray (3842548864), black (3842548865) |
| Weight | 0.266 kg |
| ESD version | ESD (antistatic) |
|---|---|
| Hersteller-Nr | 3842523570 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.266000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
