Drilling Jig Groove 10, Torx 50, Galvanized Steel - Bosch Rexroth 3842528574
Bosch Rexroth
✓ Original product Brand new Made in Germany

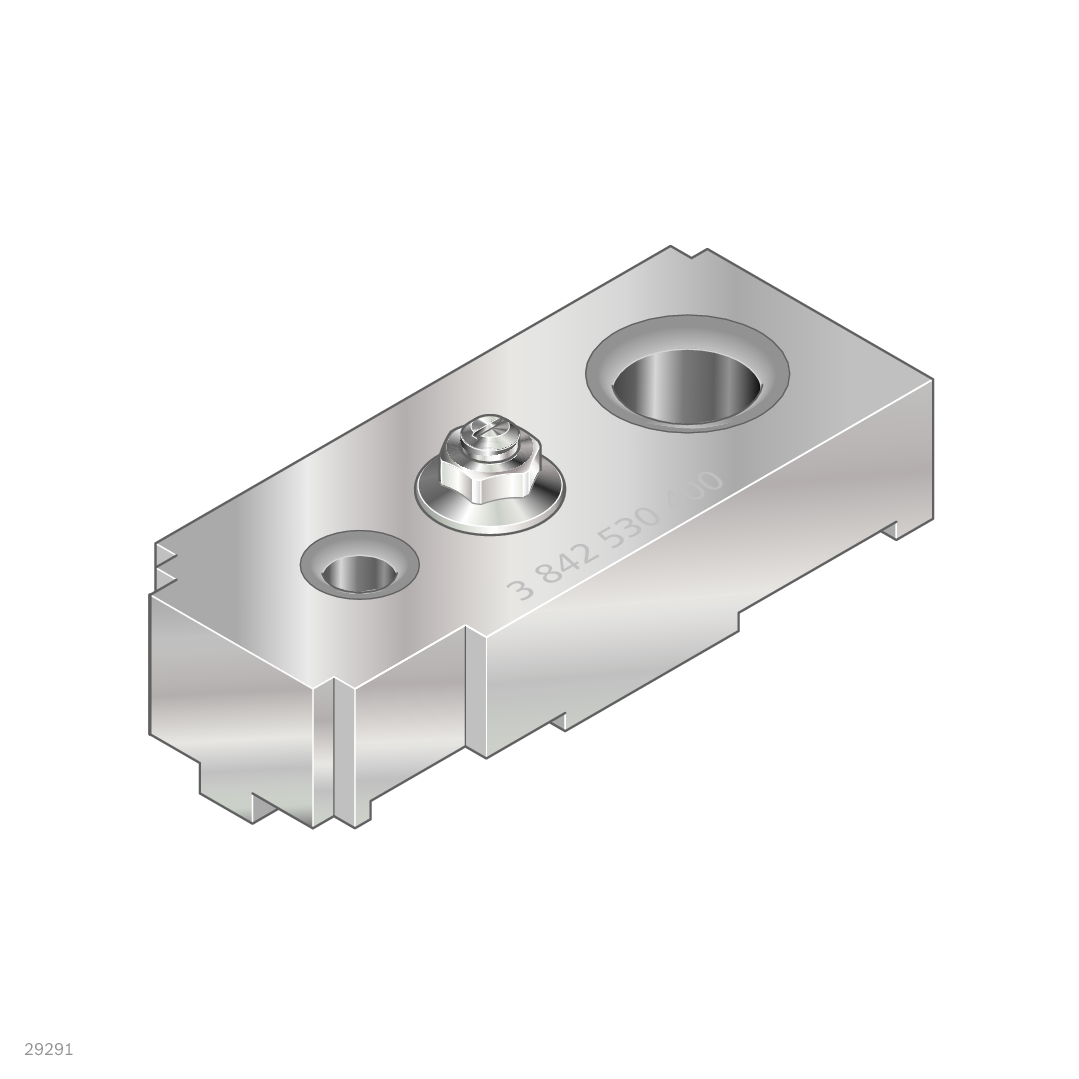

Bosch Rexroth drilling jig for transferring hole patterns accurately onto aluminum profiles with groove 10. Three holes ø 9.8, ø 17 and ø 21 mm for tool access, bolt connectors and pneumatic connections. Galvanized steel, fastening material included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth drilling jig acts as a template for transferring hole patterns accurately onto aluminum profiles with groove 10. It helps fitters and designers prepare repeatable profile connections.
- Fastening holes ø 17 mm for bolt connectors, quick connectors and threaded sleeves
- Through-holes ø 9.8 mm for hexagonal-star socket screwdrivers T50
- Counterbores ø 21 mm for pneumatic connections
- Fixed modular dimensions 45 and 60 mm for reproducible results
Technical data
| Feature | Value |
|---|---|
| Profile slot | 10 |
| Modular dimension | 45 mm |
| Modular dimension 02 | 60 mm |
| Holes | ø 9.8 / ø 17 / ø 21 mm |
| Tool fitting | Torx 50 (T50) |
| Material | Steel, galvanized |
| Fastening material | 1x T-bolt HS10-M8x50, 1x flange nut 10 M8 |
| Scope of delivery | Incl. fastening material |
| Packaging unit | 1 |
| Weight | 0.97 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842528574 |
| Zolltarifnummer | 82055980 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
