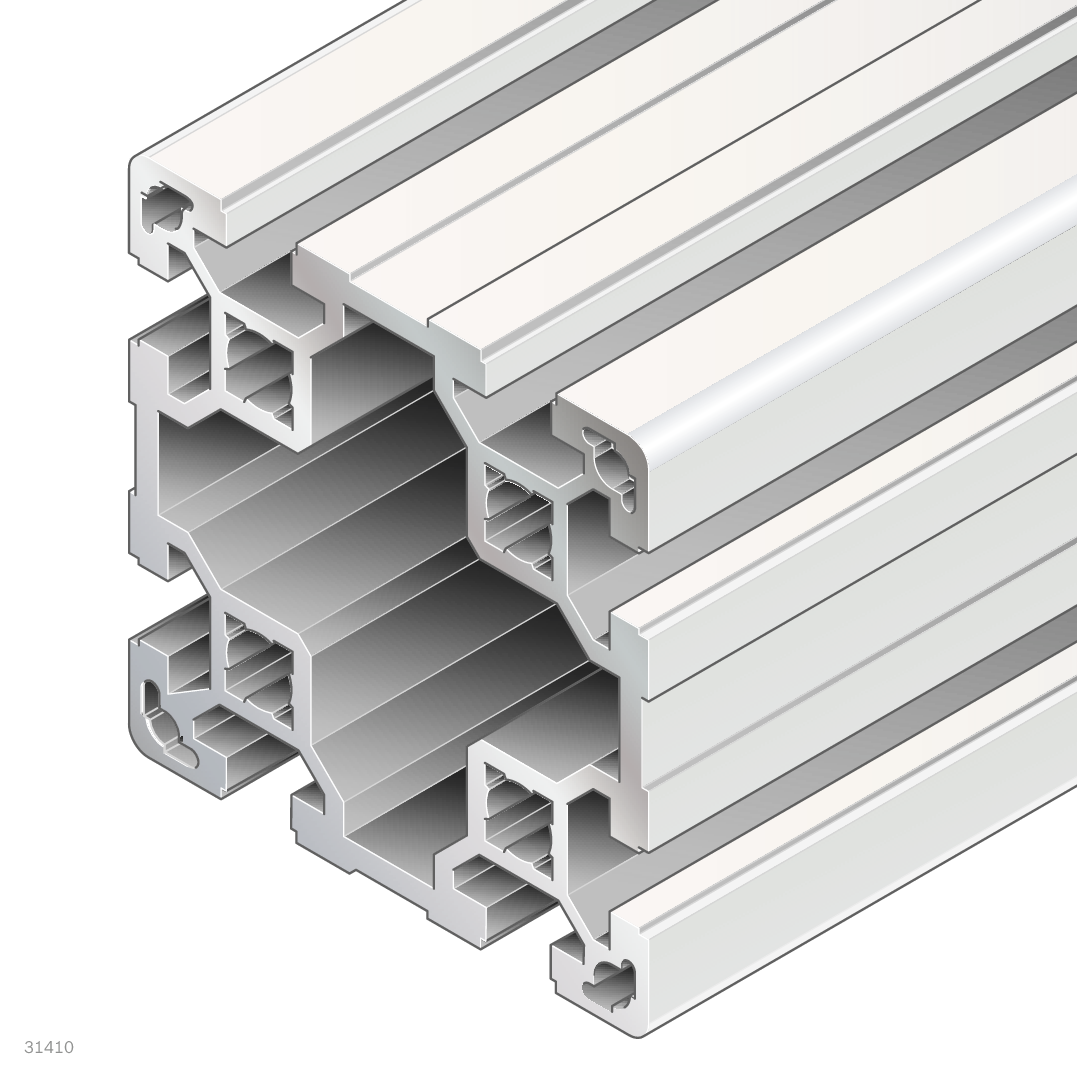

Strut Profile 80x80L, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529347
Bosch Rexroth
✓ Original product Brand new Made in QU
Strut profile 80x80L in anodized aluminum with profile slot 10 and 8 open slots, ESD-capable. A symmetrical cross-section with an 18.2 cm2 profile surface delivers high rigidity for load-bearing frames and structures in machine and plant construction. Supplied as a packaging unit of 6 profiles at 6070 mm each.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth 80x80L strut profile is a load-bearing extruded aluminum profile for the modular construction of machine frames, protective enclosures and supporting structures. With profile slot 10, a 40 mm modular dimension and a symmetrical cross-section, it enables stable and precisely aligned connections.
- Symmetrical cross-section with identical values in the X and Y directions for uniform load capacity
- 8 open slots on all four sides for flexible attachments and linkages
- ESD-capable for applications requiring electrostatic dissipation
- M12 machining in all core bores for face-end connections
Technical data
| Attribute | Value |
|---|---|
| Cross-section | 80x80L |
| Dimensions | 80x80 mm |
| Profile slot | 10 |
| Modular dimension | 40 mm |
| Open slots | 8 |
| Profile type | Standard |
| ESD | yes |
| Color | Natural |
| Material | Aluminum, anodized |
| Length [L] | 6070 mm |
| Delivery unit | 6 profiles |
| Condition on delivery | Packaging unit in standard length |
| Profile surface [A] | 18.2 cm2 |
| Mass [m] | 4.9 kg/m |
| Area moment of inertia Ix | 132.1 cm4 |
| Area moment of inertia Iy | 132.1 cm4 |
| Moment of resistance Wx | 33 cm3 |
| Moment of resistance Wy | 33 cm3 |
| Torsional moment of inertia It | 59.8 cm4 |
| Moment of torsion resistance Wt | 17.2 cm3 |
| Profile machining | M12: in all core bores; D17: in slots A/F, B/E; D17V: in slots C/H, D/G |
| Recommended accessories | Cover cap 80x80, signal gray; mounting hole plug 80x80, black |
| Weight (packaging unit) | 200 kg |
| Weight | 200 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842529347 |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Lenght | 6070 mm |
