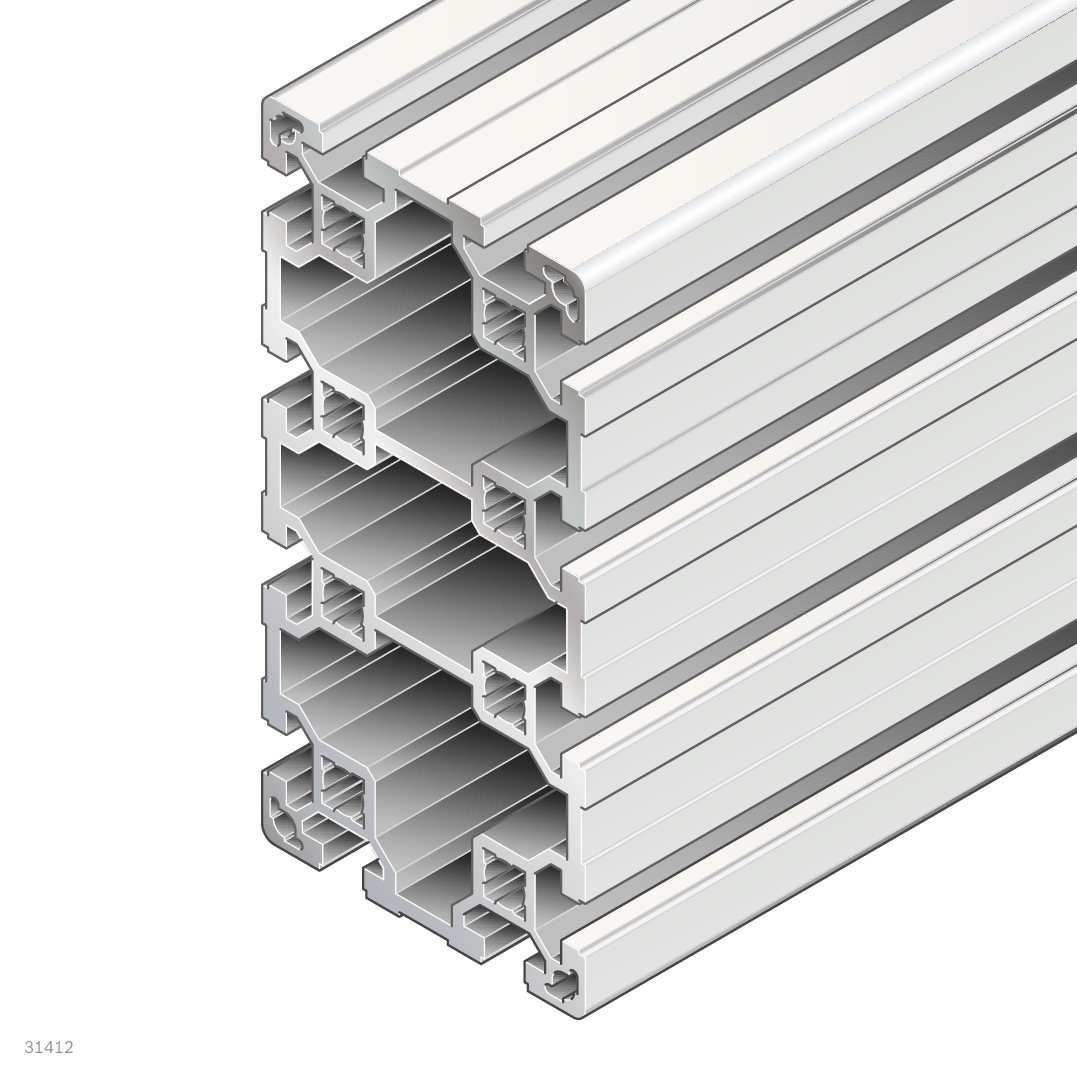

Strut Profile 80x160L, Slot 10, ESD, Anodized - Bosch Rexroth 3842529349
Bosch Rexroth
✓ Original product Brand new Made in Germany
Strut profile 80x160L in anodized aluminum with profile slot 10 and ESD suitability. Supplied as a packaging unit of 3 standard lengths of 6070 mm each. Load-bearing base structure for machine frames, enclosures and equipment racks in ESD areas.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The 80x160L strut profile from Bosch Rexroth is a load-optimized aluminum construction profile for designers and equipment builders who need high rigidity over a large build height. It forms the load-bearing base structure for machine frames, gantries, safety enclosures and equipment racks, and its ESD suitability releases it for use in electrostatic protected areas.
- High bending and torsional rigidity from the large 80x160L cross-section
- ESD-capable for use in EPA zones
- Profile slot 10 on a 40 mm modular grid, compatible with the modular connection system
- Anodized surface, maintenance-free and corrosion-resistant
- Factory machining M12 prepared in all core bores
Technical data
| Cross-section | 80x160L |
|---|---|
| Dimensions | 80x160 mm |
| Profile slot | 10 |
| Modular dimension | 40 mm |
| Open slots | 12 |
| ESD | yes |
| Profile type | Standard |
| Color | Natural |
| Material | Aluminum, anodized |
| Length [L] | 6070 mm |
| Delivery unit | 3 |
| Condition on delivery | Packaging unit in standard length |
| Mass [m] | 8.9 kg/m |
| Weight | 185 kg |
| Profile surface [A] | 32.9 cm² |
| Area moment of inertia in x-direction [Ix] | 850.7 cm⁴ |
| Area moment of inertia in y-direction [Iy] | 253.4 cm⁴ |
| Moment of resistance in the x-direction [Wx] | 106.3 cm³ |
| Moment of resistance in the y-direction [Wy] | 63.4 cm³ |
| Torsional moment of inertia [It] | 182 cm⁴ |
| Moment of torsion resistance [Wt] | 41.1 cm³ |
| Profile machining | M12 in all core bores; D17 in slots C/L, D/K, E/J, F/I; D17V in slots A/H, B/G |
| Recommended accessories | Cover cap 80x80, signal gray or black |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842529349 |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Lenght | 6070 mm |
