Bracket 80x80 ESD, Diecast Aluminum, Slot 10 - Bosch Rexroth 3842530360
Bosch Rexroth
✓ Original product Brand new Made in Germany
The 80x80 bracket joins aluminum profiles with slot 10 at right angles and withstands bending moments up to 1000 Nm. The vibratory-ground ESD version in diecast aluminum ships complete with fastening material and suits load-bearing frames in machine and fixture construction.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth 80x80 bracket joins slot 10 aluminum profiles at right angles, forming sturdy corner connections for load-bearing frames and structures in machine and fixture construction. The ESD version dissipates electrostatic charges, making it suitable for workstations in electronics manufacturing.
The bracket is made of vibratory-ground diecast aluminum and ships ready to mount with galvanized steel fastening material.
- High load capacity with bending moment up to 1000 Nm and torsional moment 400 Nm
- Complete with 8x T-bolt M8x25 and 8x flange nut M8
- ESD-capable for conductive assemblies

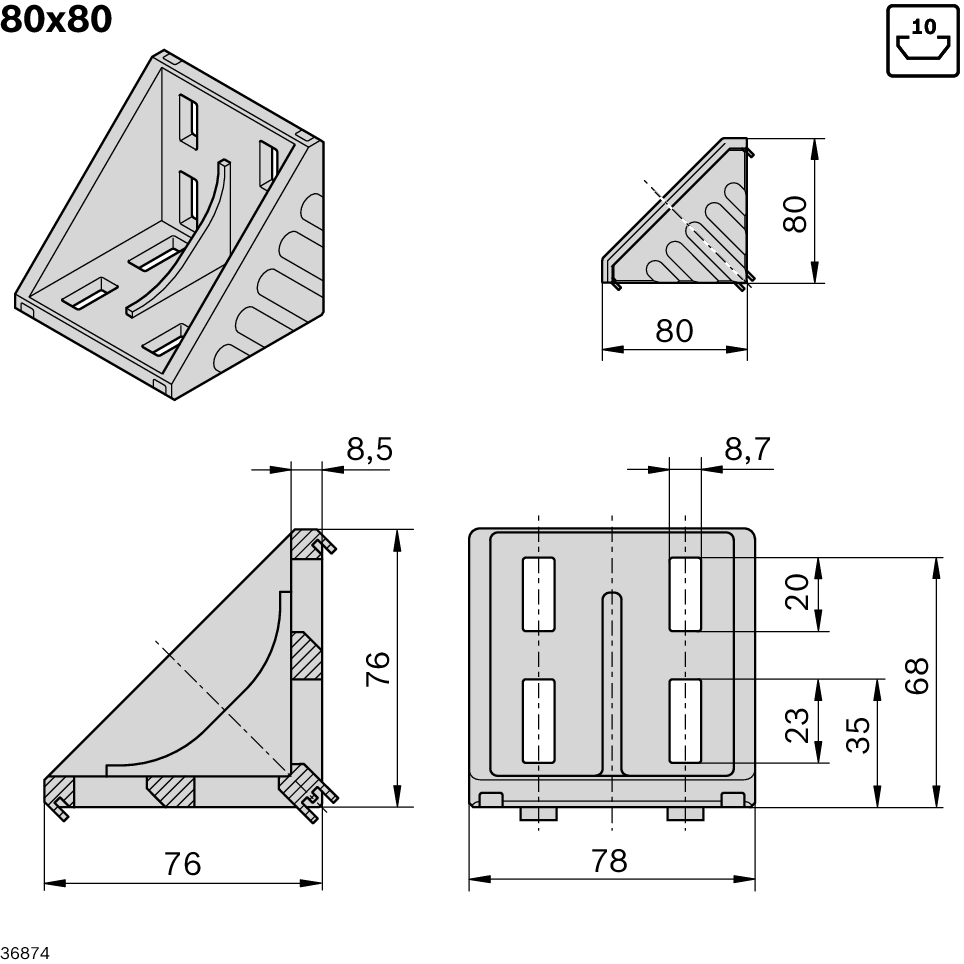

Technical data
| Attribute | Value |
|---|---|
| Profile slot | 10 |
| Dimensions | 80x80 |
| ESD | yes |
| Material | Diecast aluminum, vibratory ground |
| Bending moment 1 | 500 Nm |
| Bending moment 2 | 1000 Nm |
| Torsional moment | 400 Nm |
| Fastening material | 8x T-bolt M8x25, 8x flange nut M8 (steel, galvanized) |
| Fastening material included | yes |
| Scope of delivery | Bracket (standard), incl. fastening material |
| Recommended accessories | Cover cap for bracket 80x80 (3842548860 signal gray, 3842548861 black) |
| Weight | 0.44 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842530360 |
| Zolltarifnummer | 76169910 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
